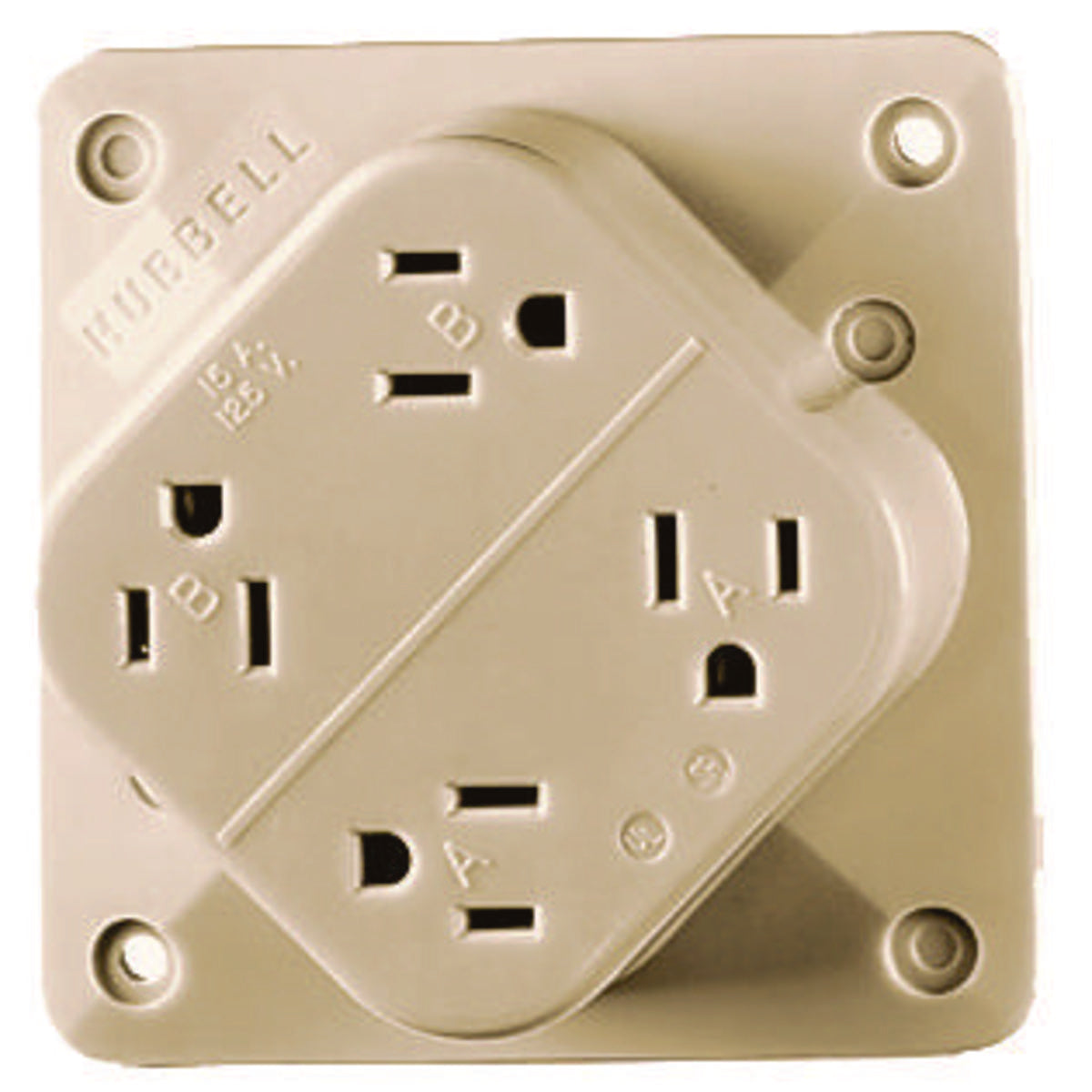

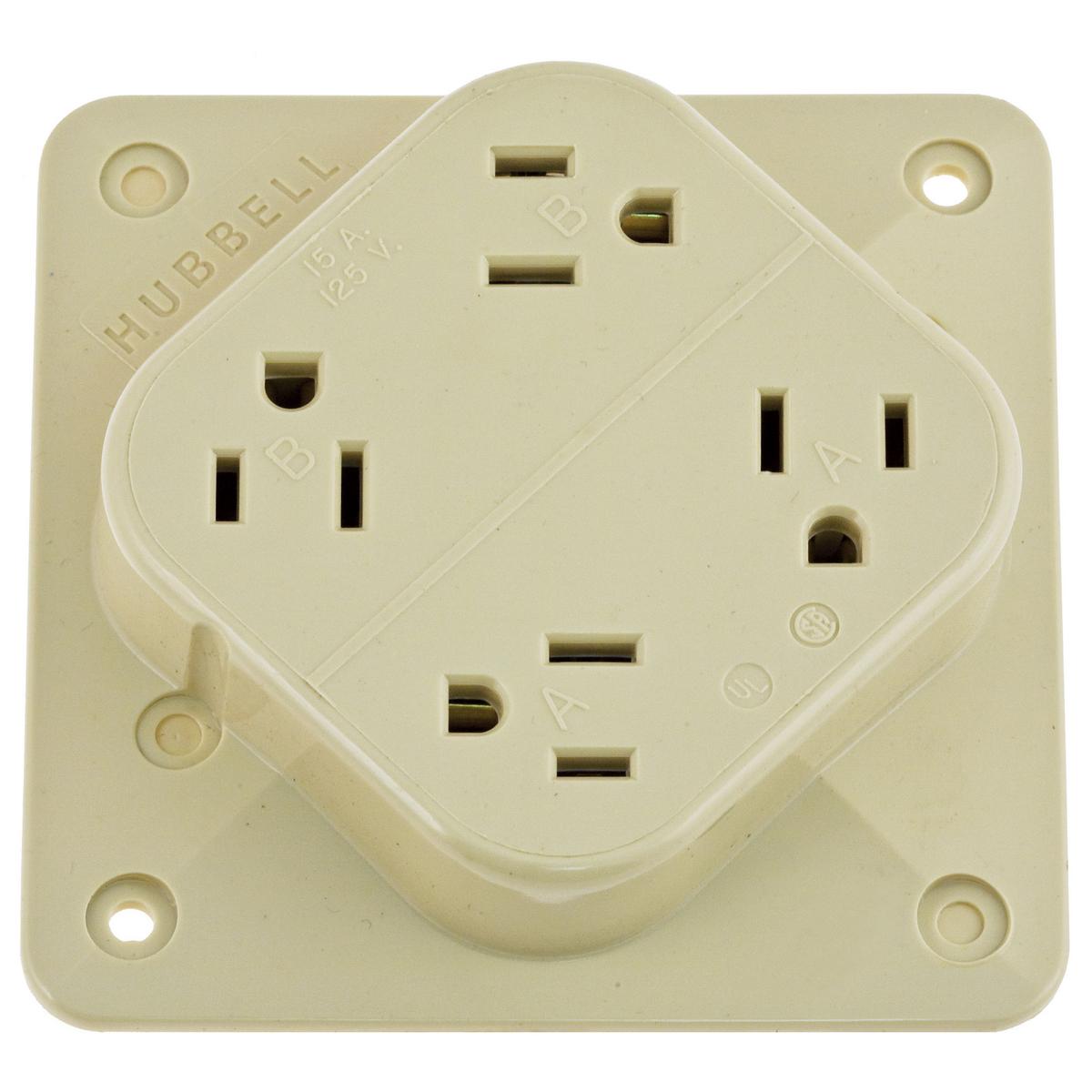

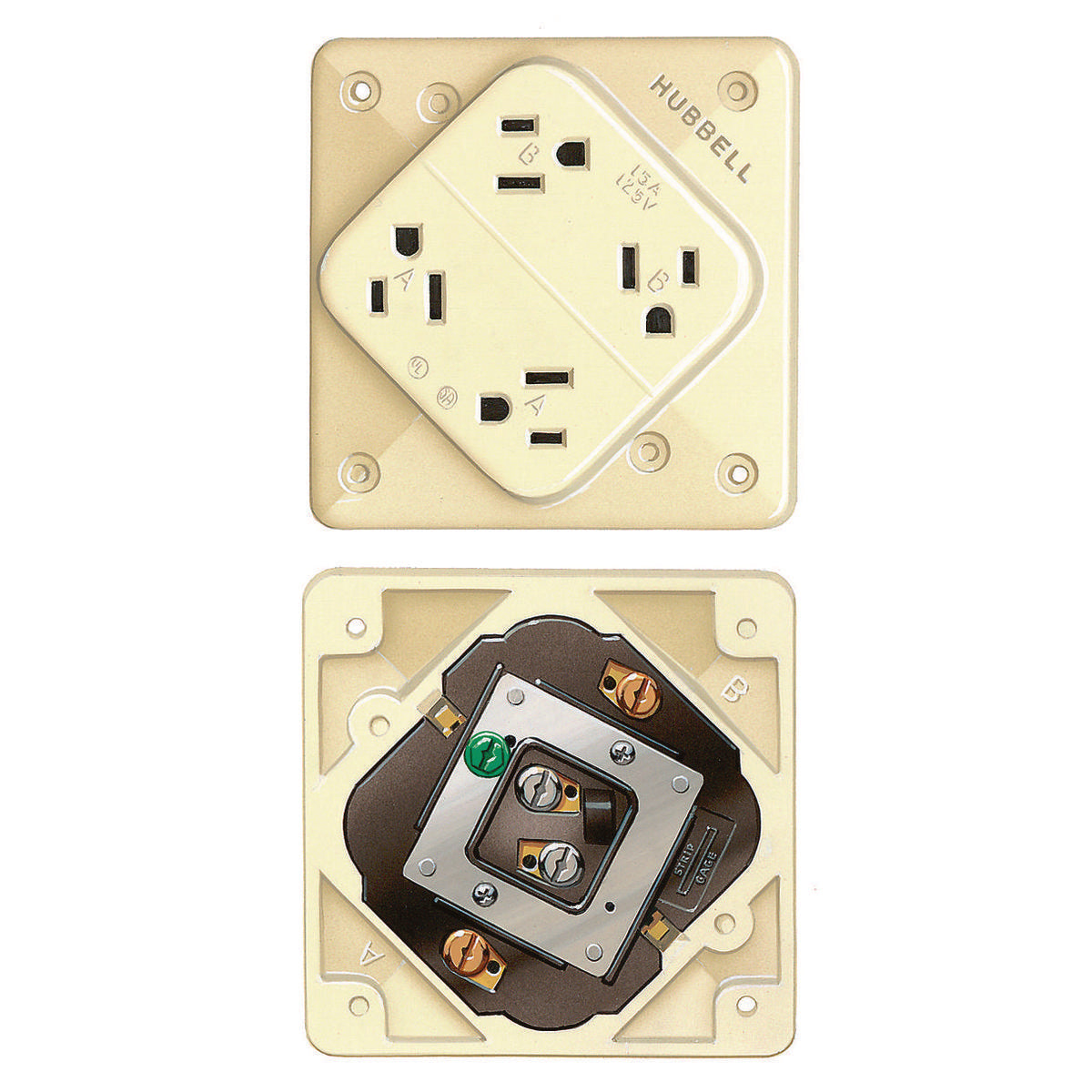

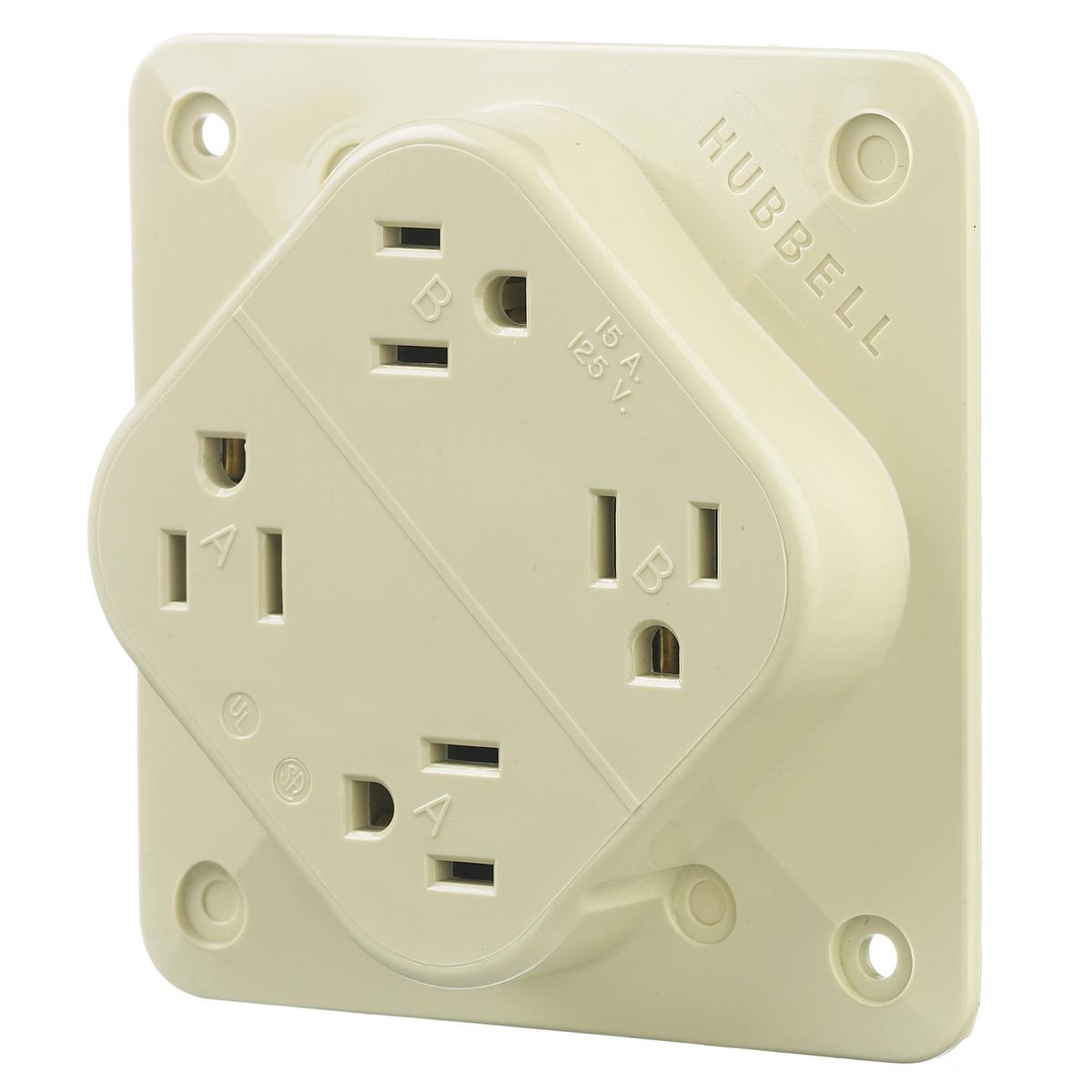

Wiring Device-Kellems HBL415I 1-Phase 4-in-1 Grounding Standard Screw Mount

Product Description

The Wiring Device-Kellems HBL415I is a straight blade receptacle designed for one-phase usage. It features a 4-in-1 grounding standard screw mount structure. This device operates at 125 VAC with a maximum current of 15 A. It supports two poles and three wires, making it suitable for various applications.

• Designed for 125 VAC and 15 A applications
• Durable polycarbonate construction
• Compatible with 14 to 12 AWG wire sizes

Product Highlights

This receptacle is ideal for both commercial and industrial settings, capable of withstanding temperatures from minus forty to seventy-five degrees Celsius. It provides reliable connectivity with its screw terminal design.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 4.3 x 0.92 x 4.3 inches
• Grade: Commercial/Industrial
• Horsepower: 1/2 hp
• Material: Polycarbonate
• NEMA Rating: 5-15R
• Series: HBL®
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Screw
• Type: 1-Phase 4-in-1 Grounding Standard Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Ivory
