Wiring Device-Kellems HBL4100R9W 250 VAC 100 A 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Screw Mount

Product Description

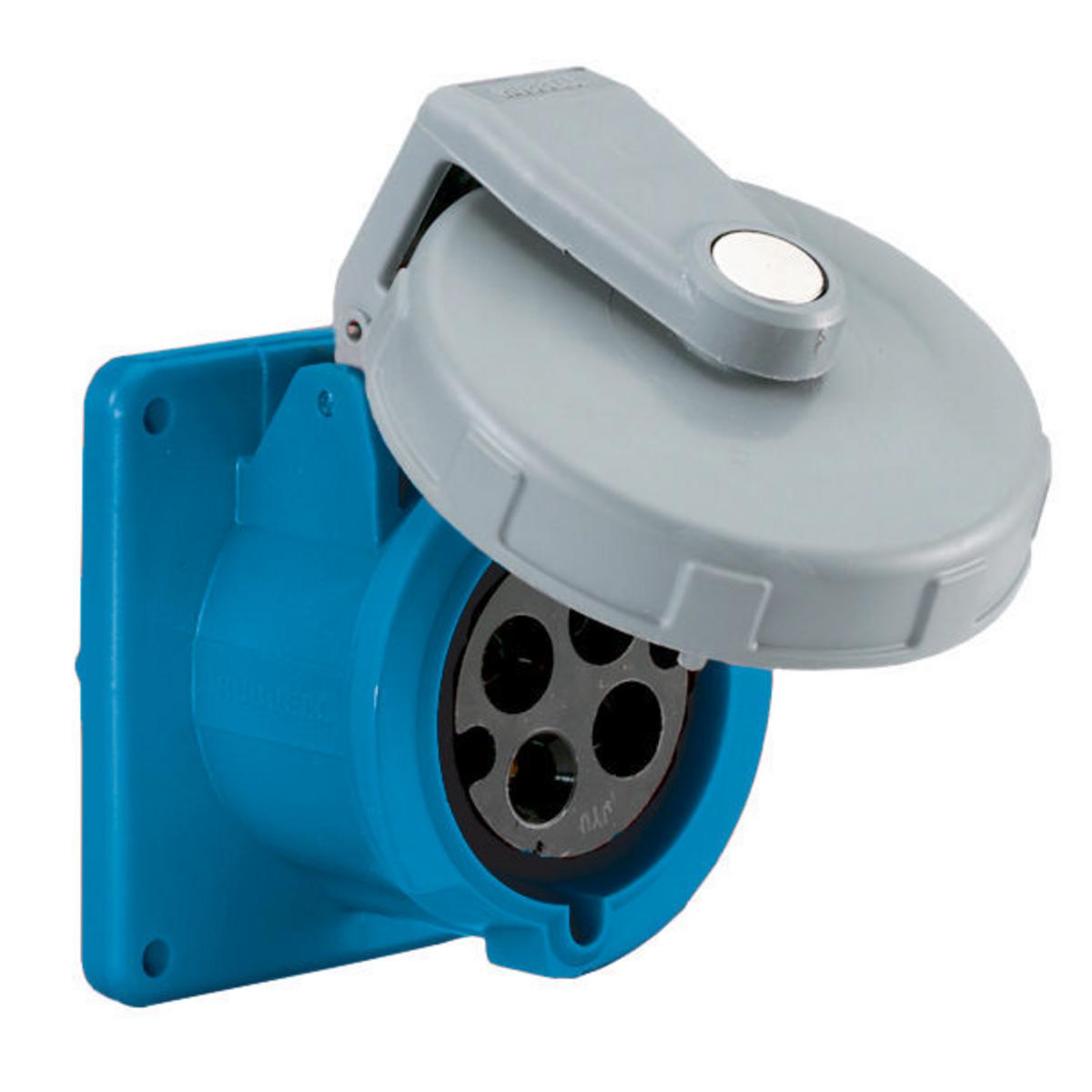

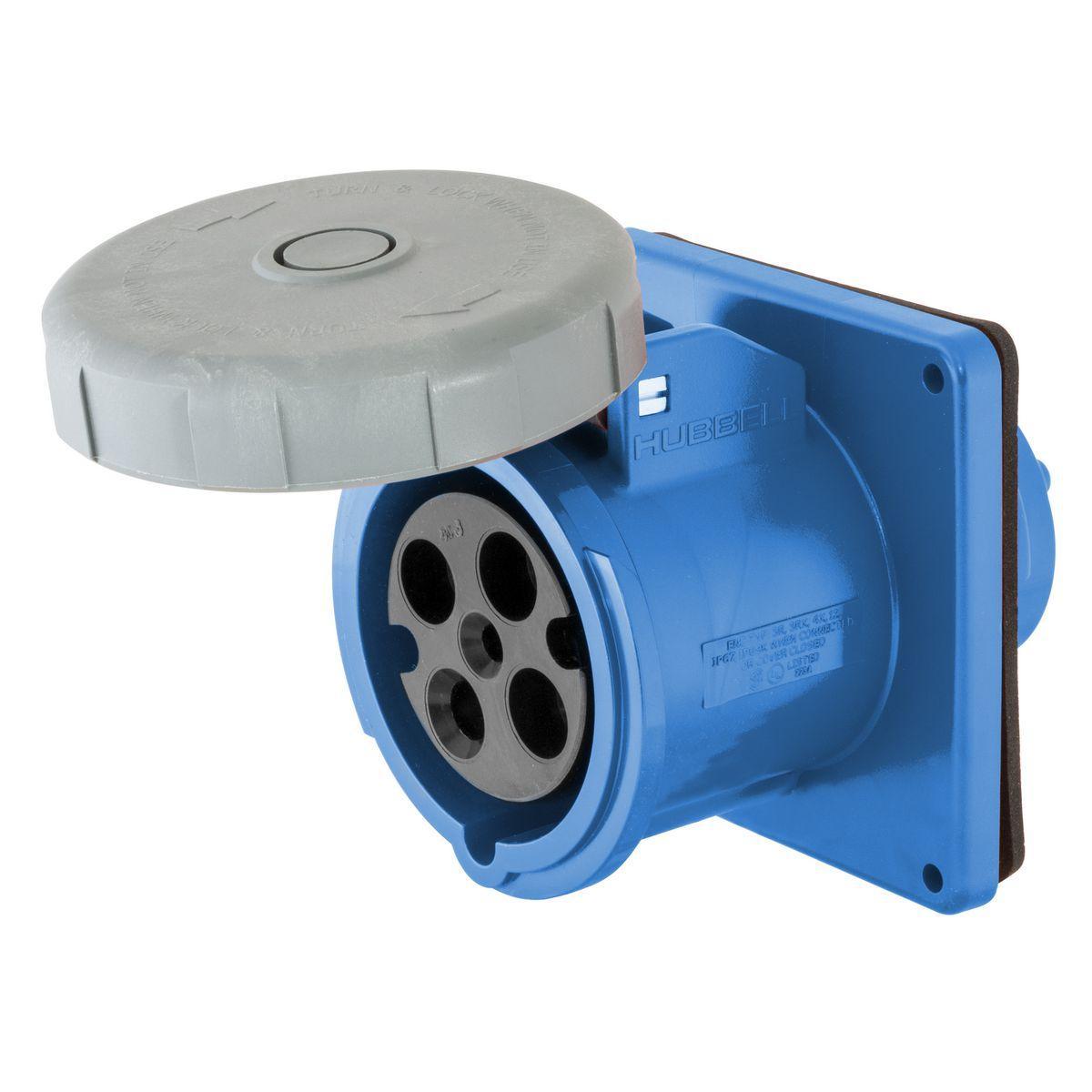

The Wiring Device-Kellems HBL4100R9W is a reliable pin and sleeve receptacle designed for industrial applications. This device operates at two hundred fifty volts alternating current and handles a maximum of one hundred amperes. It features three poles and four wires, ensuring versatile connectivity. This receptacle is constructed with thermoplastic materials and has an IP67 rating, making it suitable for watertight installations in various environments. It can function effectively in temperatures ranging from negative forty to seventy-five degrees Celsius. The screw mount feature allows secure installation in industrial settings.

• Rated for 250 VAC and 100 A
• IP67 Enclosure for watertight protection
• Self-closing gasketed cover for enhanced durability

Product Highlights

This pin and sleeve receptacle is designed for robust performance in industrial applications, ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 100 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Blue
• Material: Thermoplastic
• Enclosure: IP67
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Dimensions: 5.5 in W x 4.23 in D x 5.71 in H
