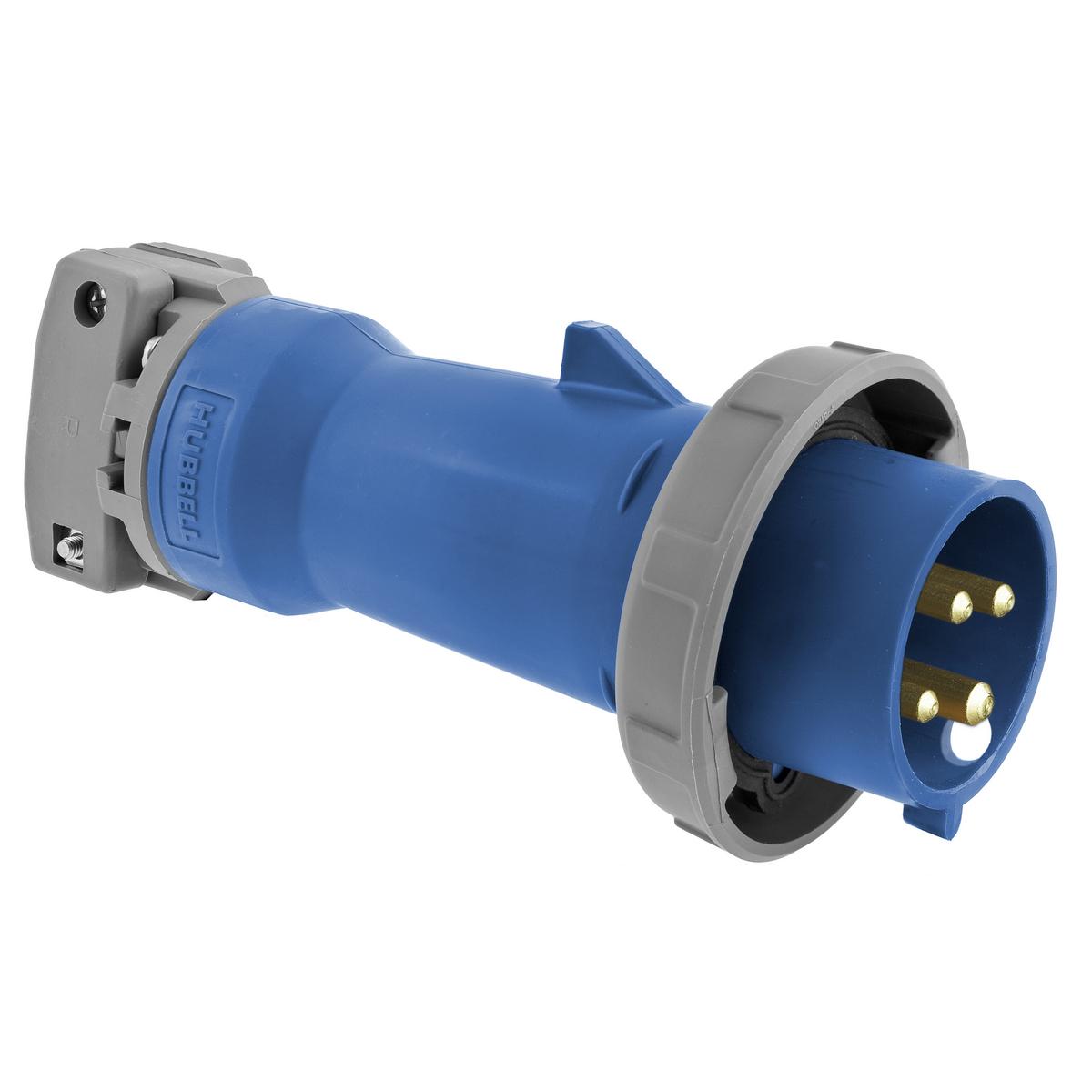

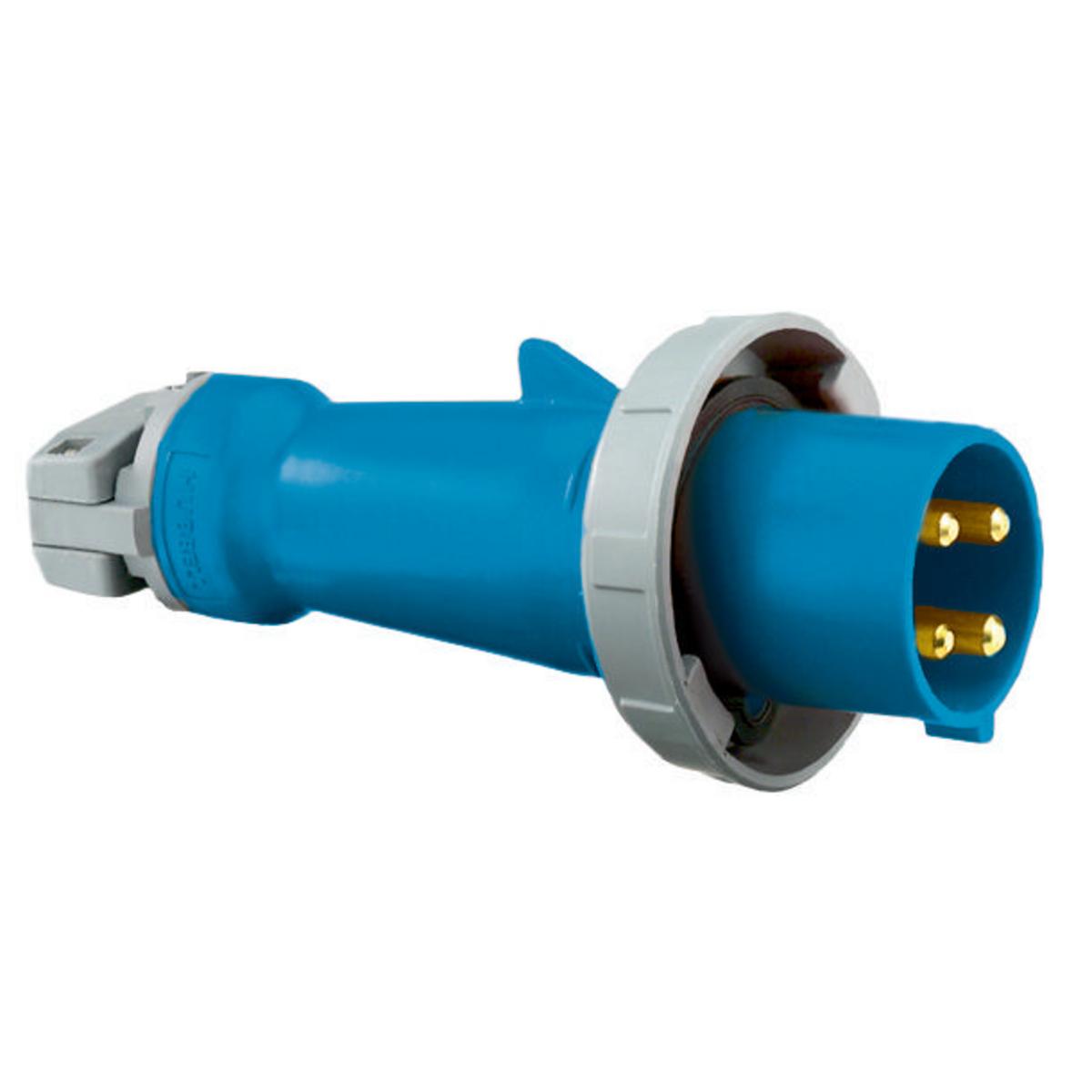

Wiring Device-Kellems HBL4100P9W 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount

Product Description

The Wiring Device-Kellems HBL4100P9W is a pin and sleeve plug designed for industrial environments. It serves as a three-phase grounding male non-NEMA portable standard watertight cord mount. This device is rated for two hundred fifty volts alternating current and one hundred amperes, featuring three poles and four wires. It is built with an IP67 enclosure, ensuring durability in harsh conditions.

• Watertight and weather-resistant design
• Solid one-piece pins for reliable contact
• Operates within a temperature range of negative forty to seventy-five degrees Celsius

Product Highlights

This plug is ideal for heavy-duty applications where safety and reliability are crucial. It is suitable for temporary power distribution in construction sites, outdoor events, and industrial facilities.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 4.92 in Diameter x 12.63 in Length
• Enclosure: IP67
• Grade: Industrial
• Material: Composite
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Type: 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 100 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Blue
