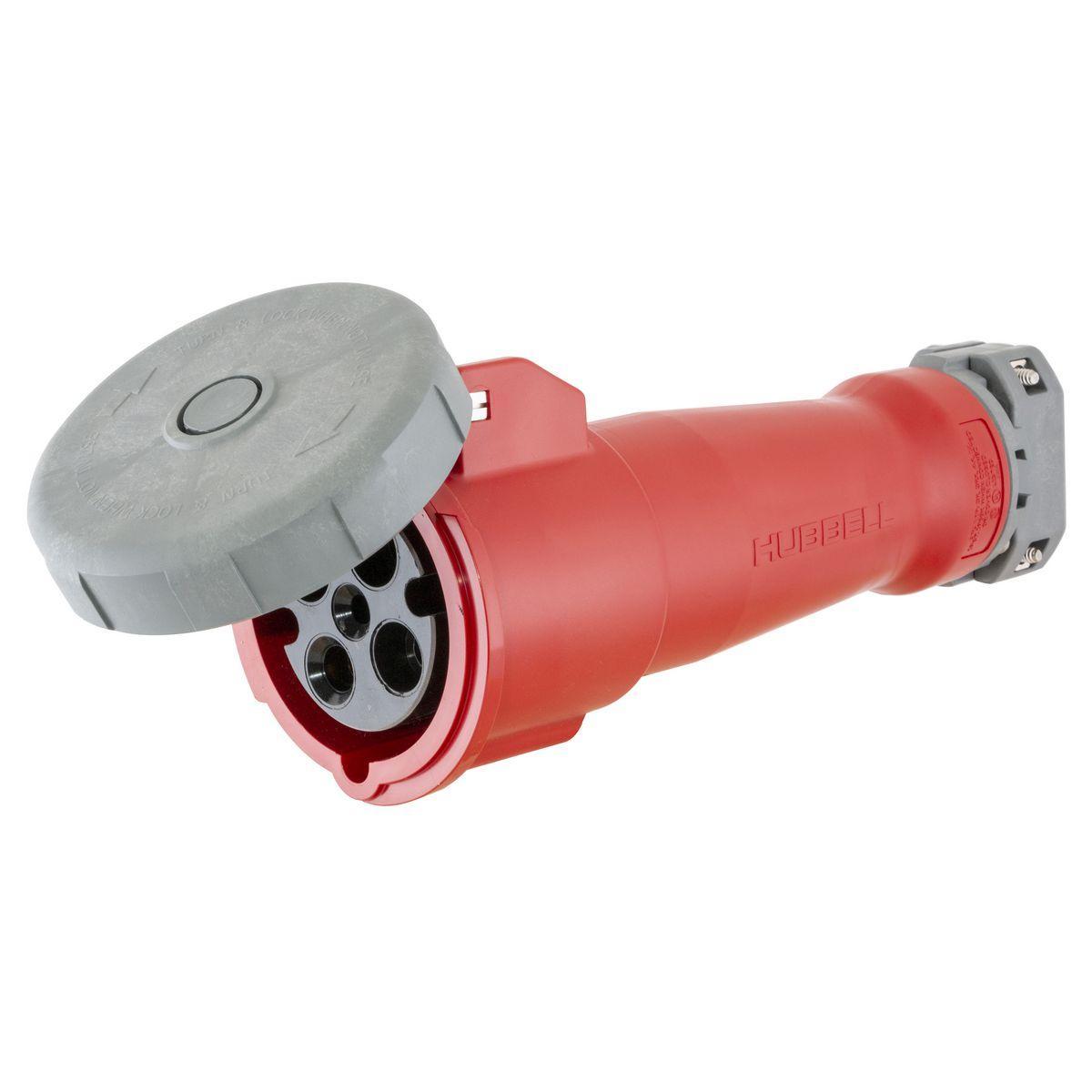

Wiring Device-Kellems HBL4100C7W 3-Phase Watertight Cord Mount 480 VAC 100 A

Product Description

The Wiring Device-Kellems HBL4100C7W is a reliable pin and sleeve connector designed for demanding electrical environments. This device supports three-phase watertight connections, with a voltage rating of four hundred eighty volts AC and a current rating of one hundred amps. It features a robust construction, suitable for industrial applications, ensuring high performance even under harsh conditions.

• Designed for 3-Phase 480 VAC applications.
• Made with a composite material for durability.
• IP67 rated for waterproof and dust-proof capabilities.

Product Highlights

Ideal for industrial setups requiring reliable connectors that withstand extreme environmental conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 3-Phase Watertight Cord Mount
• Voltage Rating: 480 VAC
• Amperage Rating: 100 A
• Horsepower Rating: 30 hp
• Number of Poles: 3
• Number of Wires: 4
• Color: Red
• Temperature Rating: -40 to 75 deg C
• Enclosure Rating: IP67
• Dimensions: 5.71 inches Diameter x 13.57 inches Length
• Material: Composite
• Terminal Type: Pressure Screw
• Grade: Industrial
