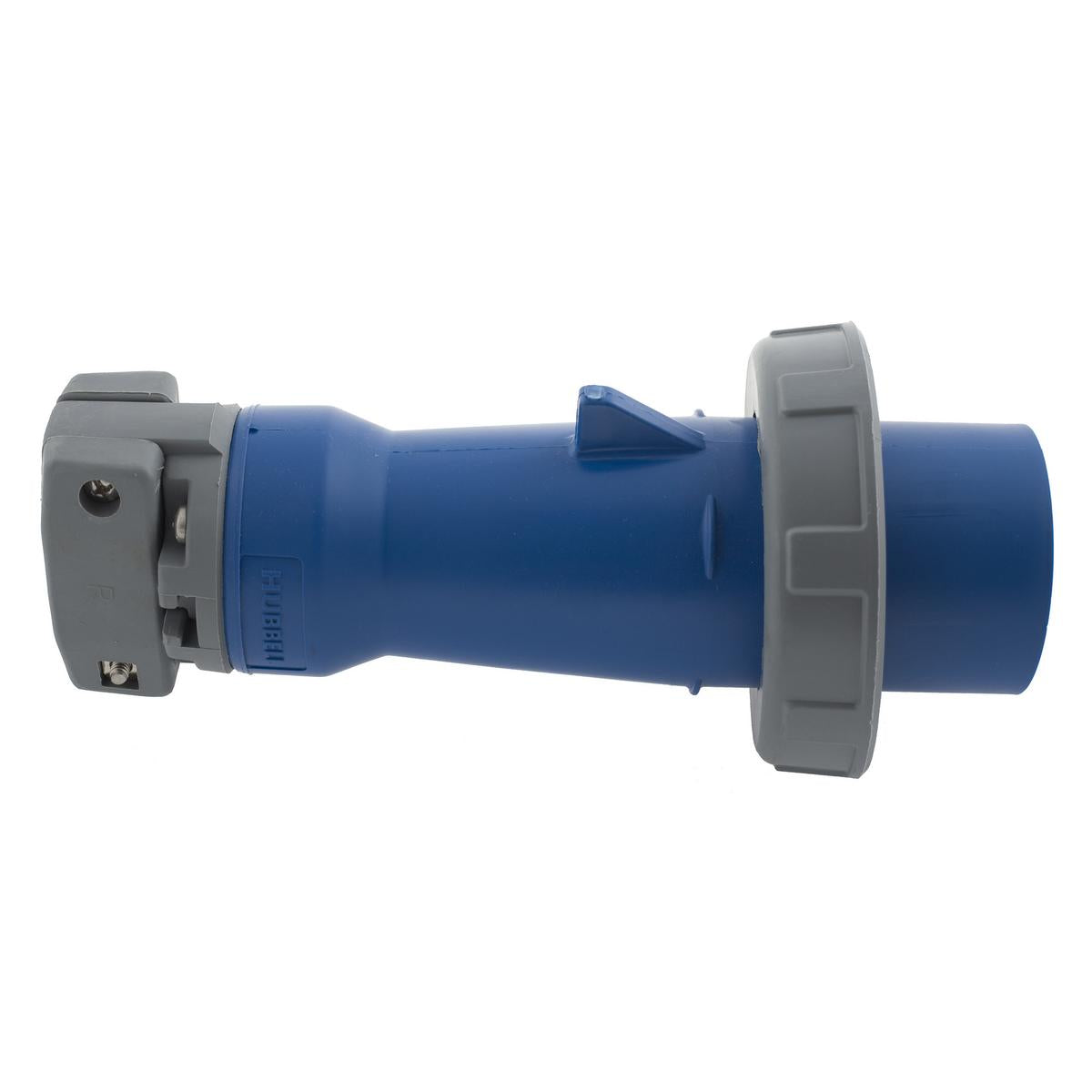

Wiring Device-Kellems HBL360P6W 1-Phase Heavy Duty Male Standard Watertight Cord Mount Pin and Sleeve Plug

Product Description

The Wiring Device-Kellems HBL360P6W is a heavy duty male standard watertight cord mount pin and sleeve plug suitable for various industrial applications. It operates at 250 volts AC and can handle up to 60 amps. This plug is designed for reliable performance and durability in harsh environments.

• 1-Phase Heavy Duty Male Standard Watertight Design
• IP67 rated for superior water and dust protection
• Constructed from durable composite material

Product Highlights

This pin and sleeve plug features a rugged, one-piece housing and a thermoset polyester contact carrier, ensuring high resistance to electrical tracking. Ideal for applications requiring strong strain relief for conductors.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 4.49 inches diameter x 10.15 inches length
• Enclosure Rating: IP67
• Grade: Industrial
• Horsepower Rating: 7.5 hp
• Material: Composite
• Series: HBL
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Pressure Screw
• Voltage Rating: 250 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Blue
