Wiring Device-Kellems HBL360C6W 250 VAC Female Grounding Watertight Cord Mount Pin and Sleeve Connector

Product Description

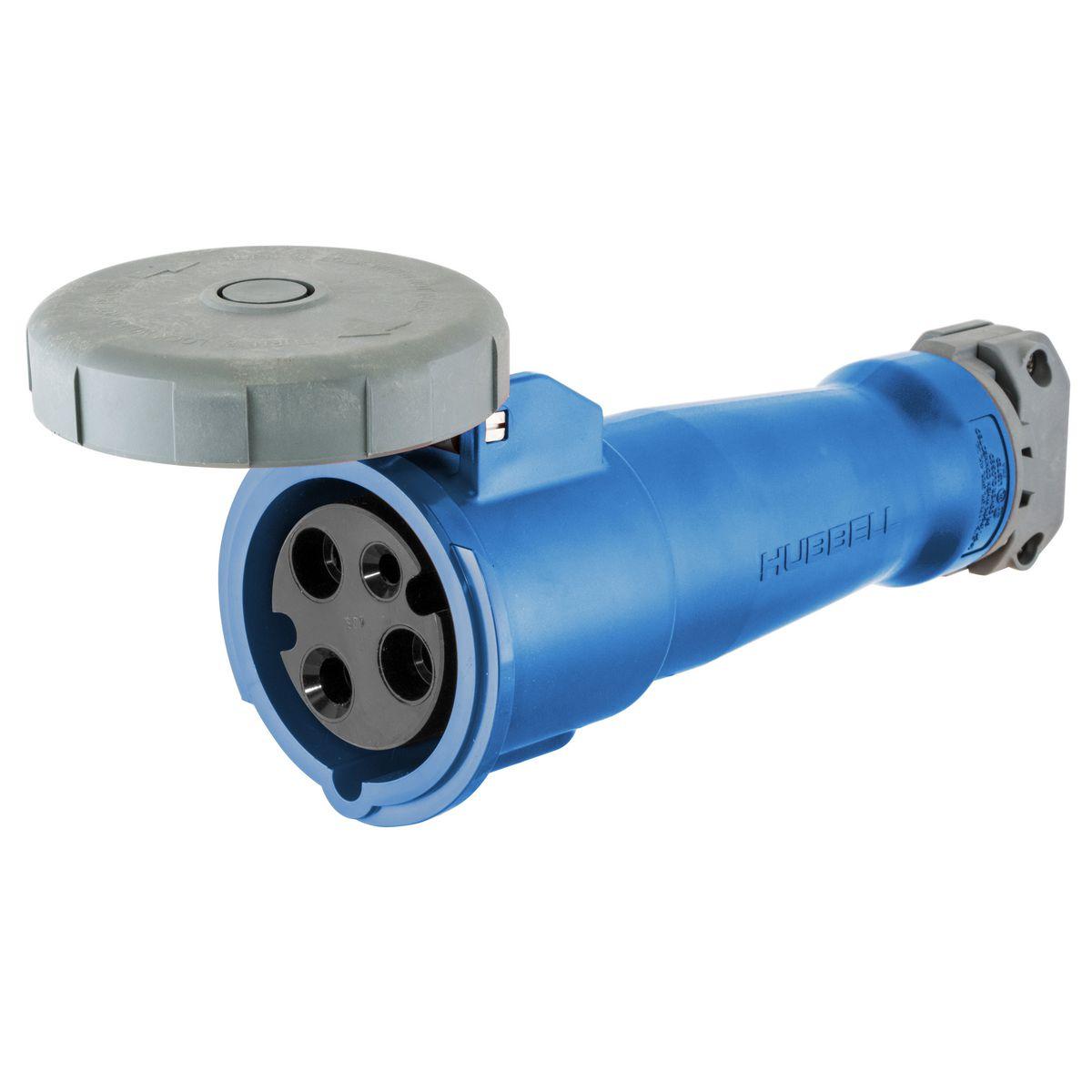

The Wiring Device-Kellems HBL360C6W is a female grounding watertight cord mount pin and sleeve connector. It operates at 250 VAC and can handle up to 60 A. This connector features two poles and three wires, making it suitable for various industrial applications.

• IP67 rated for moisture resistance
• Operating temperature range from -40 to 75 degrees Celsius
• Composite material ensures durability and reliability

Product Highlights

This wiring device is designed for tough environments and provides secure connections for electrical equipment.

Product Information

Standard Information

• Manufacturer: Hubbell
• Part Number: HBL360C6W HW

Technical Specifications

• Dimensions: 5.1 in diameter x 11.15 in length
• Enclosure: IP67
• Grade: Industrial
• Material: Composite
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Pressure screw
• Voltage Rating: 250 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Blue
