Wiring Device-Kellems HBL3032 HW Wiring Device Toggle Switch 120 to 277 VAC 30 A

Product Description

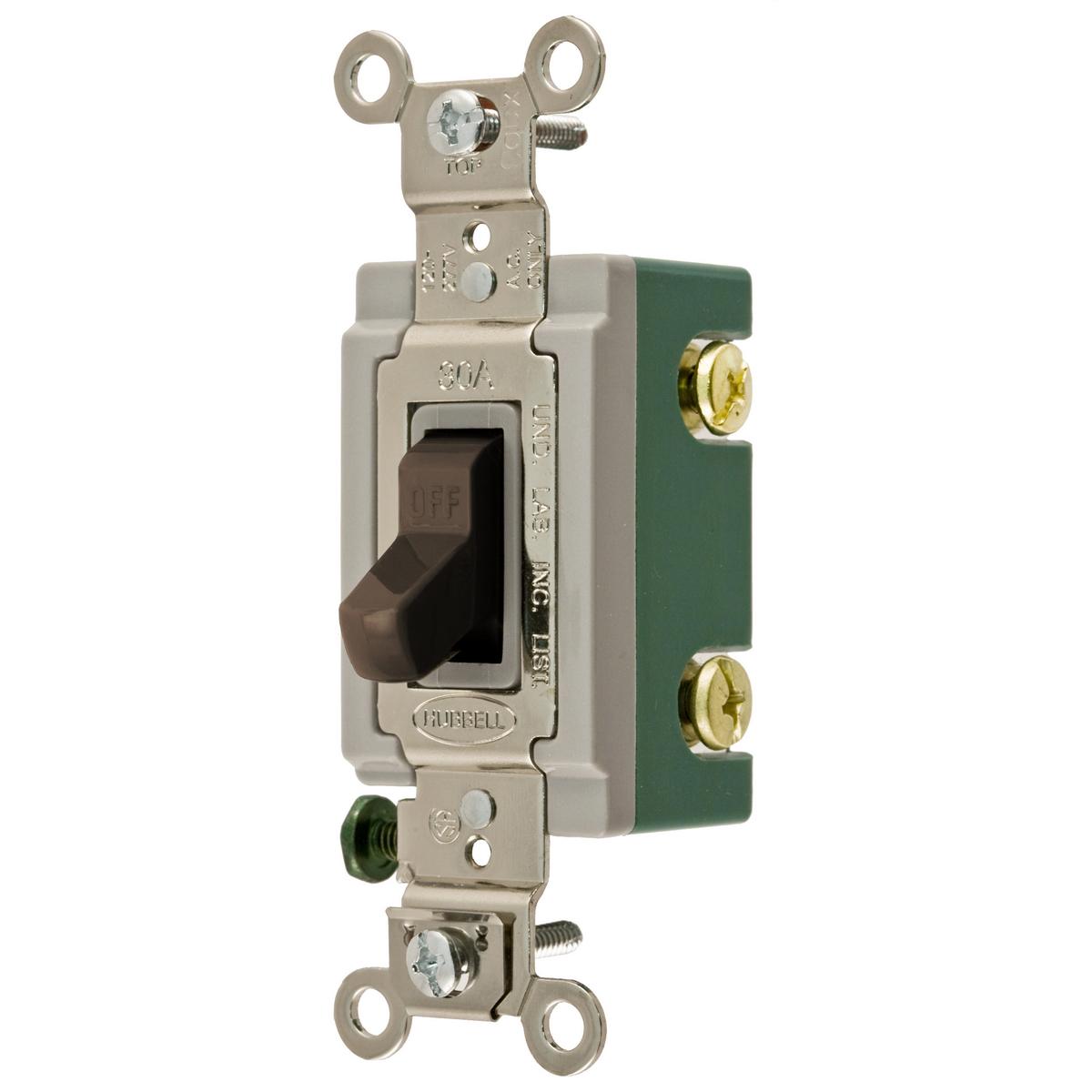

The Wiring Device-Kellems HBL3032 is a two-position extra heavy-duty toggle switch. It is designed for general-purpose industrial use. This switch operates at voltages from one hundred twenty to two hundred seventy-seven volts, with a maximum of thirty amps and a power rating of eight thousand three hundred ten watts. It features a durable nylon toggle and thermoset body, ideal for heavy-duty applications.

• Voltage range: 120 to 277 VAC
• Amperage rating: 30 A
• Operating cycles: 50000

Product Highlights

This toggle switch ensures reliable performance for industrial tasks and is suitable for demanding environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Brown
• Dimensions: 4.06 x 1.31 x 1.87 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon Toggle/Thermoset Body
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Type: 2-Position Extra Heavy Duty General Purpose Industrial Grade Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 30 A
• Power Rating: 8310 W
• Contact Configuration: 2-Position
