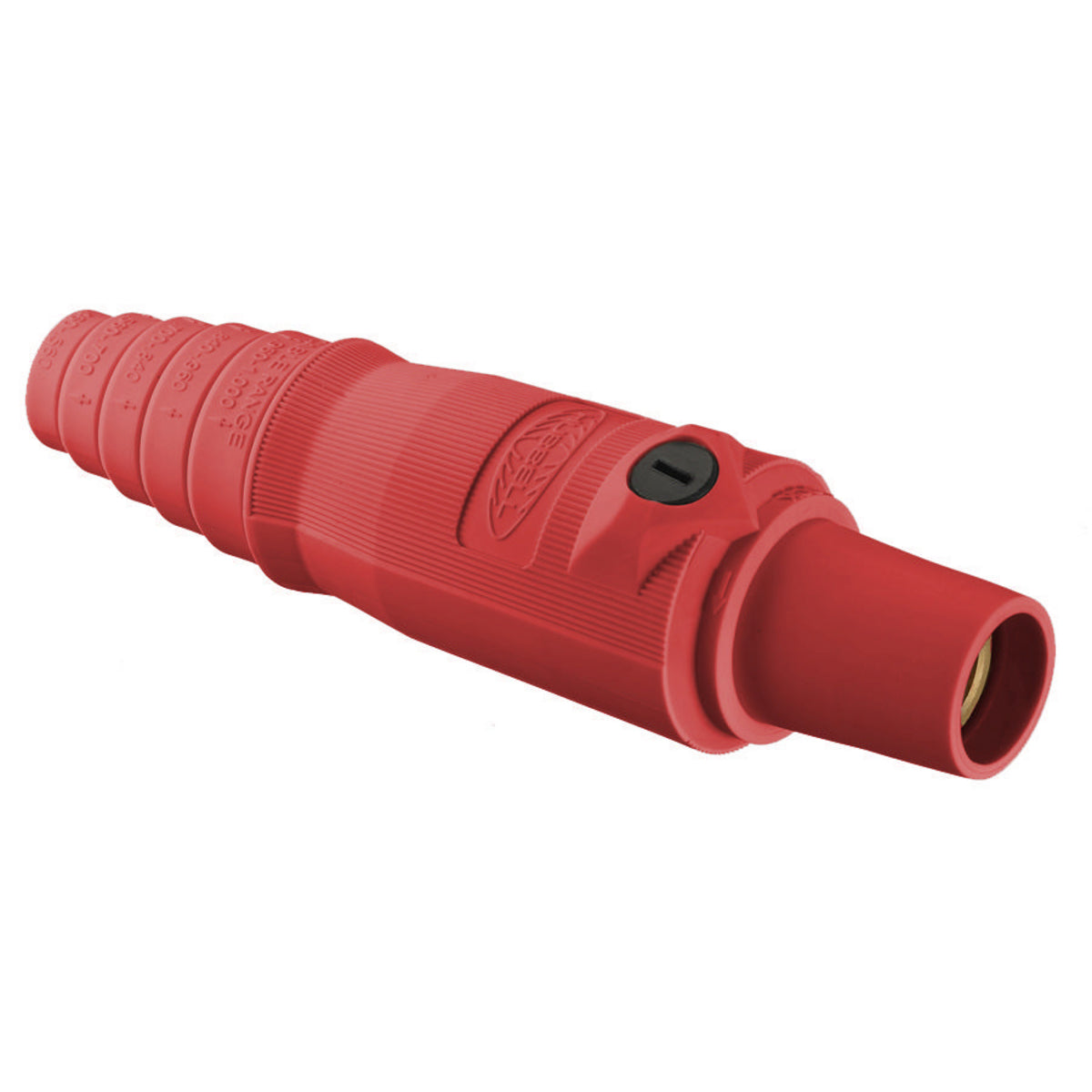

Wiring Device-Kellems HBL300FR Heavy Duty Female Plug 300A 600 VAC/250 VDC

Product Description

The Wiring Device-Kellems HBL300FR is a heavy duty industrial grade female plug designed for high ampacity connections. This single pole plug is rated for three hundred amps at six hundred volts for alternating current and two hundred fifty volts for direct current. It accommodates wire sizes from four to two/zero AWG using a pressure screw terminal connection.

• Durable brass contact construction
• UL type four X, twelve environmental rating for harsh conditions
• Tool-free installation with non-conductive retaining screw

Product Highlights

This plug is ideal for temporary power distribution in demanding environments such as events, concerts, and industrial applications. The robust design ensures reliable performance where electrical safety and operational reliability are critical.

Product Information

Standard Information

• Manufacturer: Hubbell Wiring Device-Kellems
• Type: Single Pole

Technical Specifications

• Amperage Rating: 300 A
• Voltage Rating: 600 VAC, 250 VDC
• Wire Size: 4 to 2/0 AWG
• Connection Type: Pressure Terminal Screws
• Contact Material: Brass
• Housing Material: Composite
• NEMA Rating: 3R/4X/12
• Length: 7.1 inches
• Diameter: 1.06 inches
