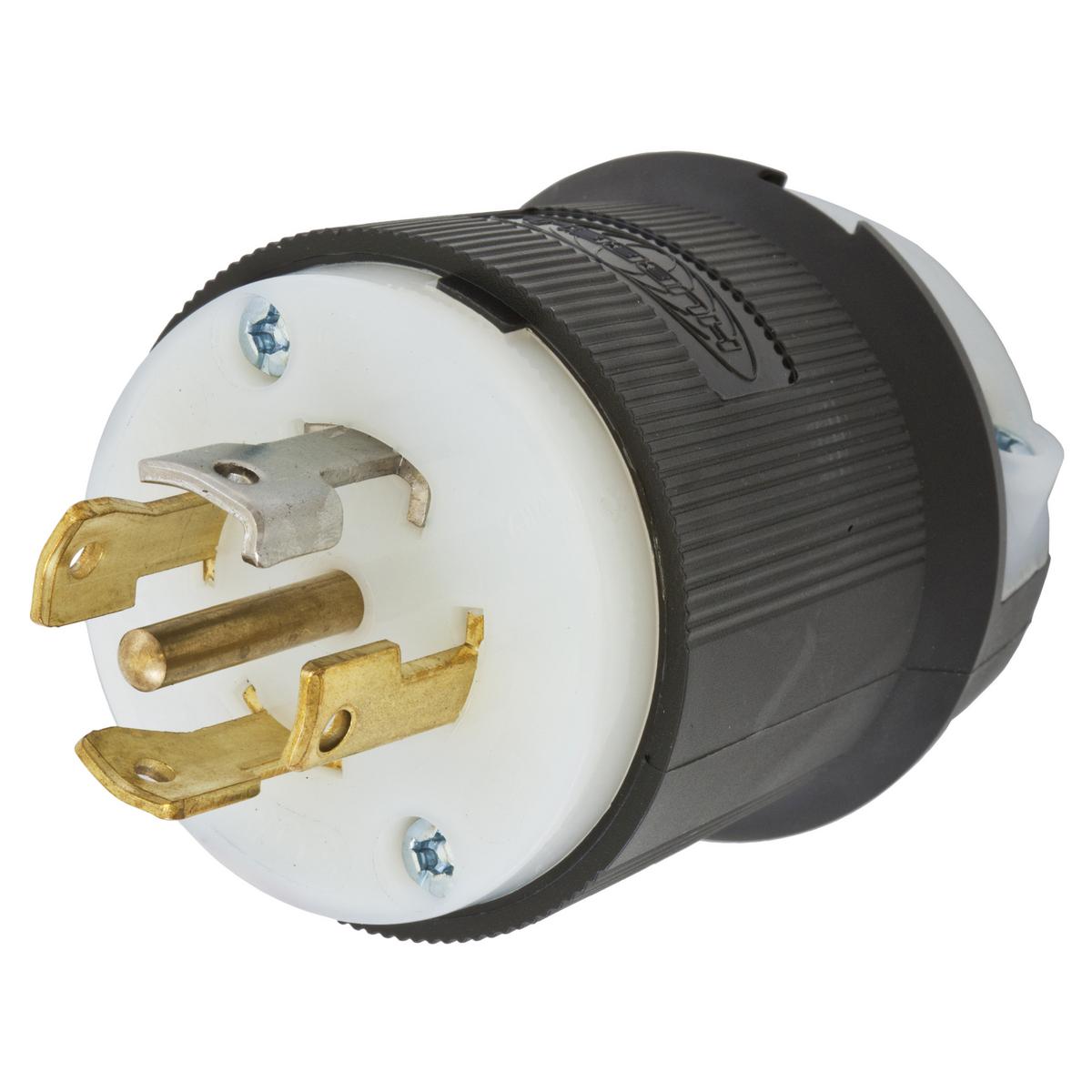

Wiring Device-Kellems HBL2831 3-Phase Grounding Cord Mount Locking Plug L23-30P

Product Description

The Wiring Device-Kellems HBL2831 is a Twist-Lock Insulgrip Locking Plug designed for three-phase grounding applications. This electrical device accommodates voltages of three hundred forty-seven to six hundred volts alternating current, supports a maximum of thirty amperes, and includes four poles and five wires. It is suitable for heavy-duty industrial usage.

• Rated for 347/600 VAC and 30 A.
• Insulgrip technology ensures a secure and safe connection.
• Compatible with cord diameters ranging from 0.35 inches to 1.15 inches.

Product Highlights

This locking plug features an IP20 enclosure, giving it a level of protection from dust and solid objects. It has a temperature rating from -40 to 75 degrees Celsius, making it versatile for various environments. The screw terminal design simplifies installation and ensures a reliable connection.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 347/600 VAC
• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 5
• Color: Black/White
• Material: Nylon
• Grade: Industrial
• NEMA Rating: L23-30P
• Dimensions: 2.33 x 2.33 x 2.75 in
• Cord Diameter: 0.35 to 1.15 in
• Enclosure: IP20
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Screw
