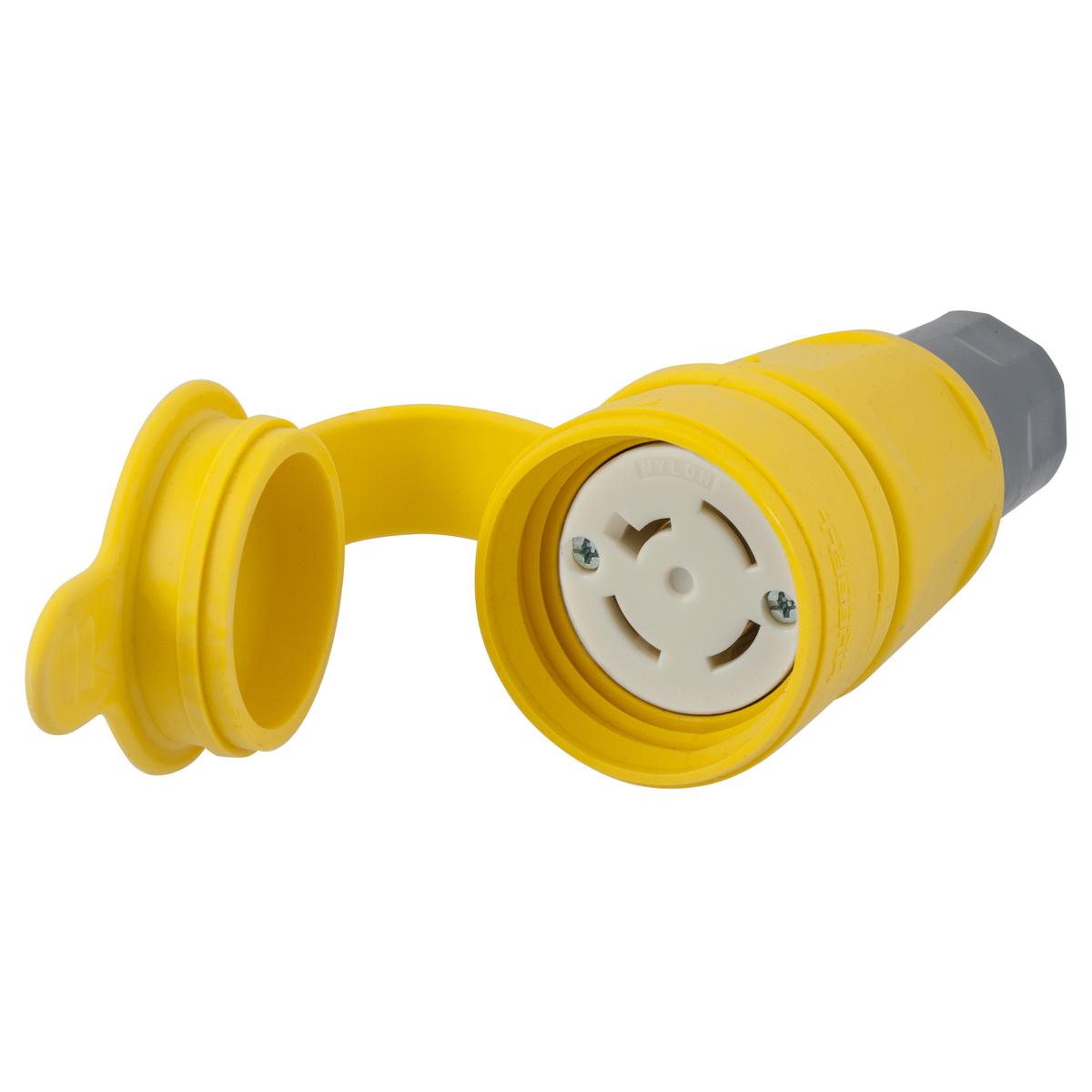

Wiring Device-Kellems HBL27W09 Twist-Lock 3-Phase Female Non-Grounding Watertight Connector 120/208 VAC

Product Description

The Wiring Device-Kellems HBL27W09 is a twist-lock locking connector designed for industrial use. This product operates at 120 to 208 VAC and supports a maximum amperage of twenty amps. The connector features a watertight surface mount design, making it suitable for outdoor and indoor applications.

• Compatible with a wide range of wire sizes from three-eighths to seven-eighths inch diameter.
• Constructed with thermoplastic and elastomer materials for durability.
• Rated for temperatures between negative forty to sixty degrees Celsius.

Product Highlights

This connector ensures safe and reliable electrical connections in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Cord Diameter: 3/8 to 7/8 in
• Dimensions: 2.77 x 2.77 x 5.67 in
• Enclosure Rating: NEMA 4/4X/6/6P/IP65/IP66/IP67
• Material: Thermoplastic/Elastomer
• Temperature Rating: -40 to 60 degrees Celsius
• Terminal Type: Screw
• Type: 3-Phase Female Non-Grounding Standard Watertight Surface Mount
• Voltage Rating: 120/208 VAC
• Amperage Rating: 20 A
• Number of Poles: 4
• Number of Wires: 4
• Color: Yellow
