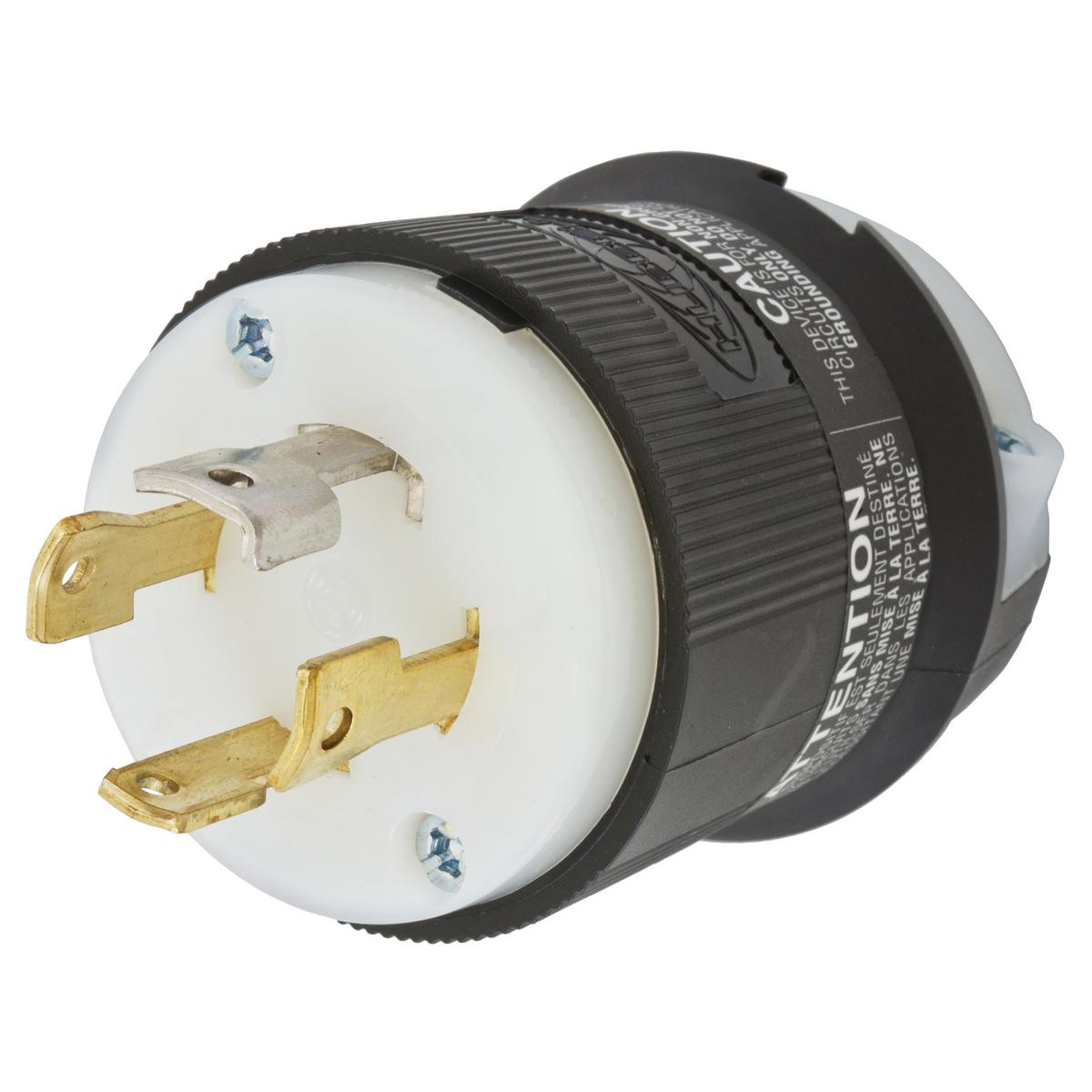

Wiring Device-Kellems HBL2751 Locking Plug 120/208 VAC 30 A L18-30P

Product Description

The Wiring Device-Kellems HBL2751 is a locking plug designed for heavy-duty applications. It operates at 120/208 VAC with a current rating of thirty amps. This plug features a three-phase non-grounding design, perfect for industrial environments.

• 4 poles and 4 wires configuration.
• IP20-rated enclosure protects from dust and contaminants.
• Temperature rating of minus forty to seventy-five degrees Celsius.

Product Highlights

The HBL2751 provides a reliable connection in demanding settings and is made from durable nylon material.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 3-Phase Non-Grounding Cord Mount
• Voltage Rating: 120/208 VAC
• Amperage Rating: 30 A
• Horsepower: 2 hp
• Number of Poles: 4
• Number of Wires: 4
• Material: Nylon
• Enclosure: IP20
• NEMA Rating: L18-30P
• Cord Diameter: 0.35 to 1.15 in
• Dimensions: 2.33 x 2.33 x 2.75 in
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Color: Black/White
