Wiring Device-Kellems HBL2721S Twist-Lock Grounding Plug 250 VAC 30 A L15-30P

Product Description

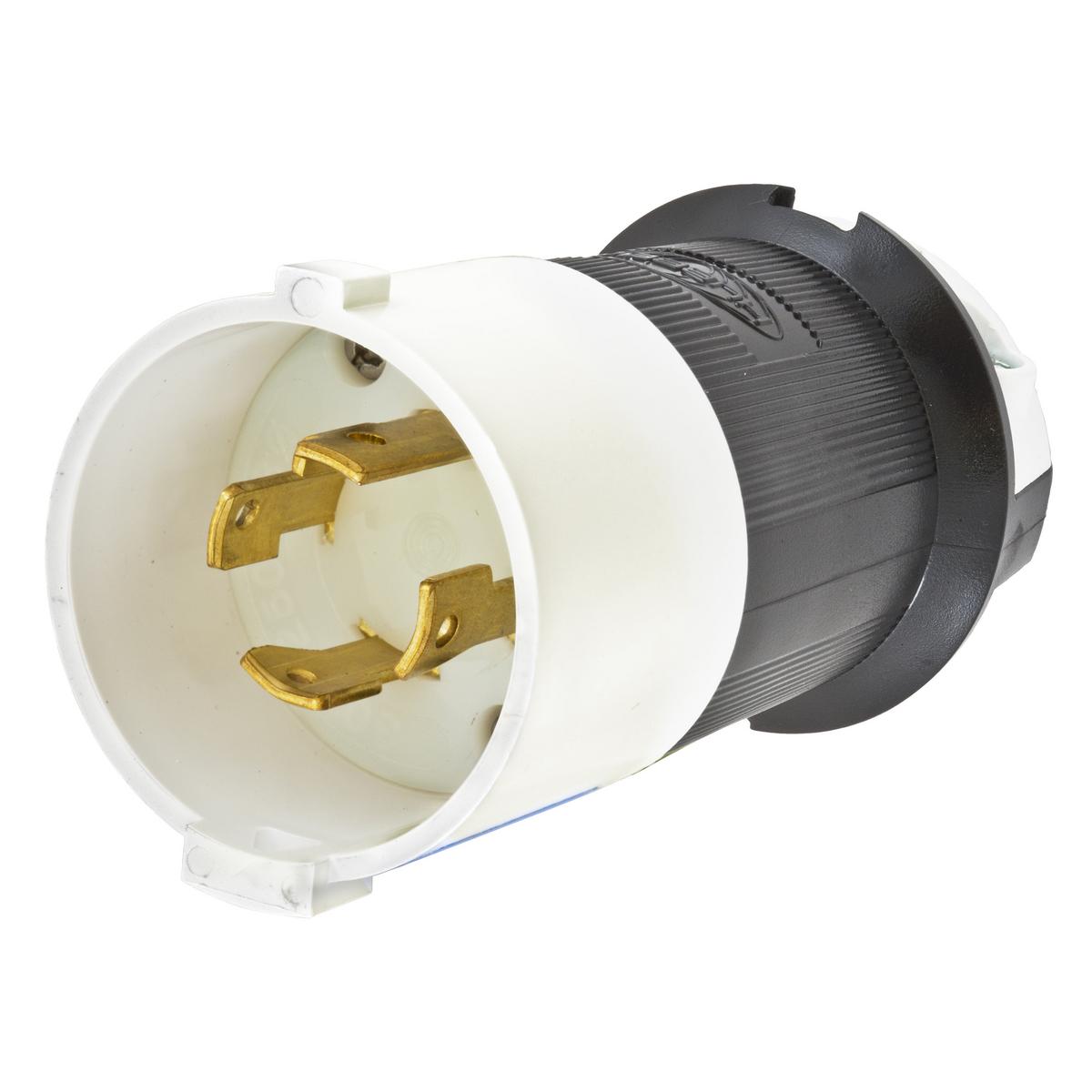

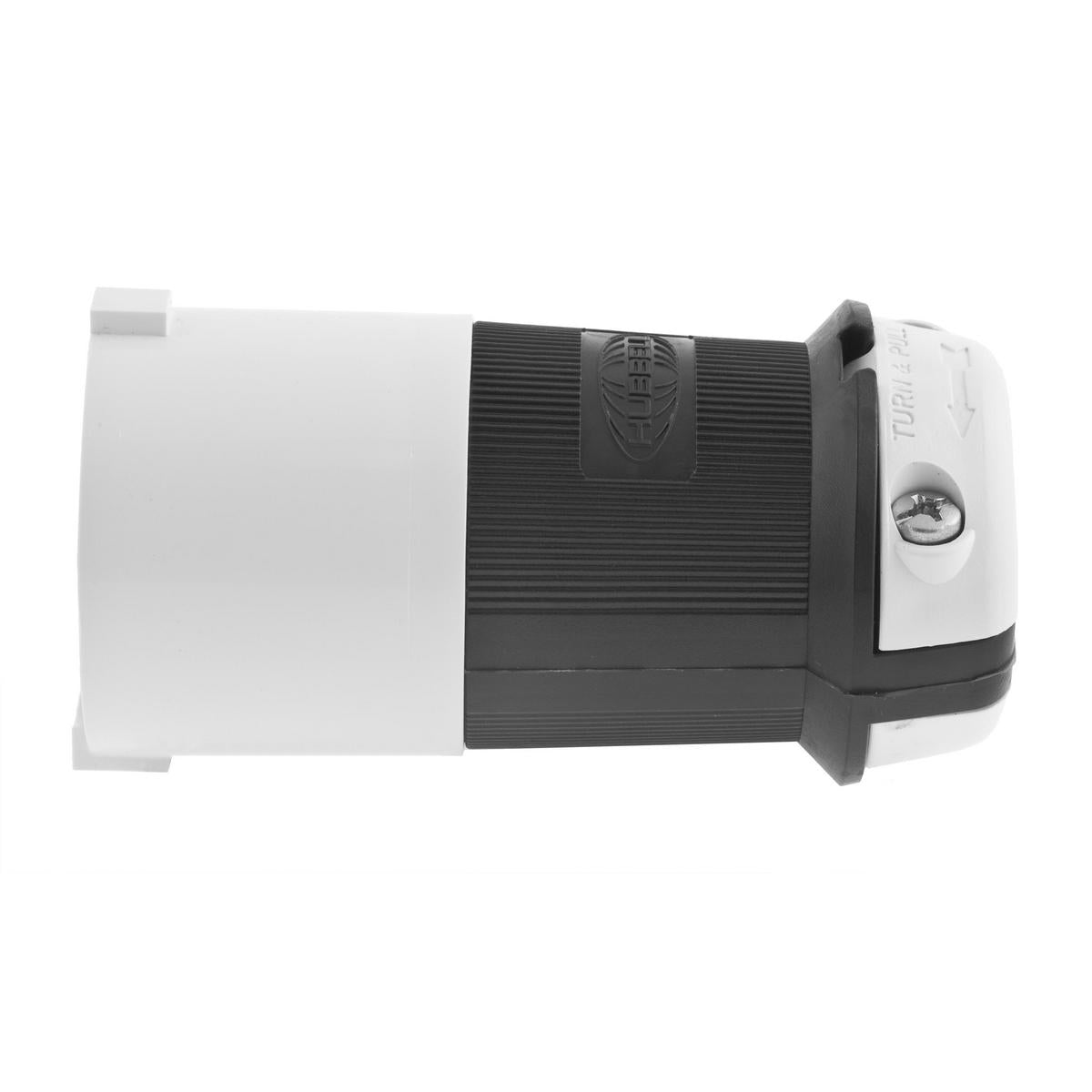

The Wiring Device-Kellems HBL2721S is a 3-phase grounding male standard cord mount locking plug. It operates at 250 VAC with a current rating of 30 A. This plug features three poles and four wires, making it suitable for various applications. It has an L15-30P NEMA rating and a durable IP20 enclosure, designed for use in challenging environments.

• Ribbed nylon housing for a secure grip and resistance to impact and chemicals
• Superior cord grip design to protect terminations from stress
• Integral dust shield for protection against dust and contaminants

Product Highlights

The HBL2721S plug provides reliability and safety for high-demand electrical systems. It can handle cord diameters from 0.35 to 1.15 inches and operates in temperatures from -40 to 75 degrees Celsius. This makes it suitable for use in diverse conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 3-Phase Grounding Male Standard Cord Mount
• Color: Black/White
• Material: Composite
• Enclosure: IP20
• Dimensions: 2.33 x 2.33 x 4.21 inches
• Horsepower: 3 hp
• NEMA Rating: L15-30P
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Cord Diameter: 0.35 to 1.15 inches
