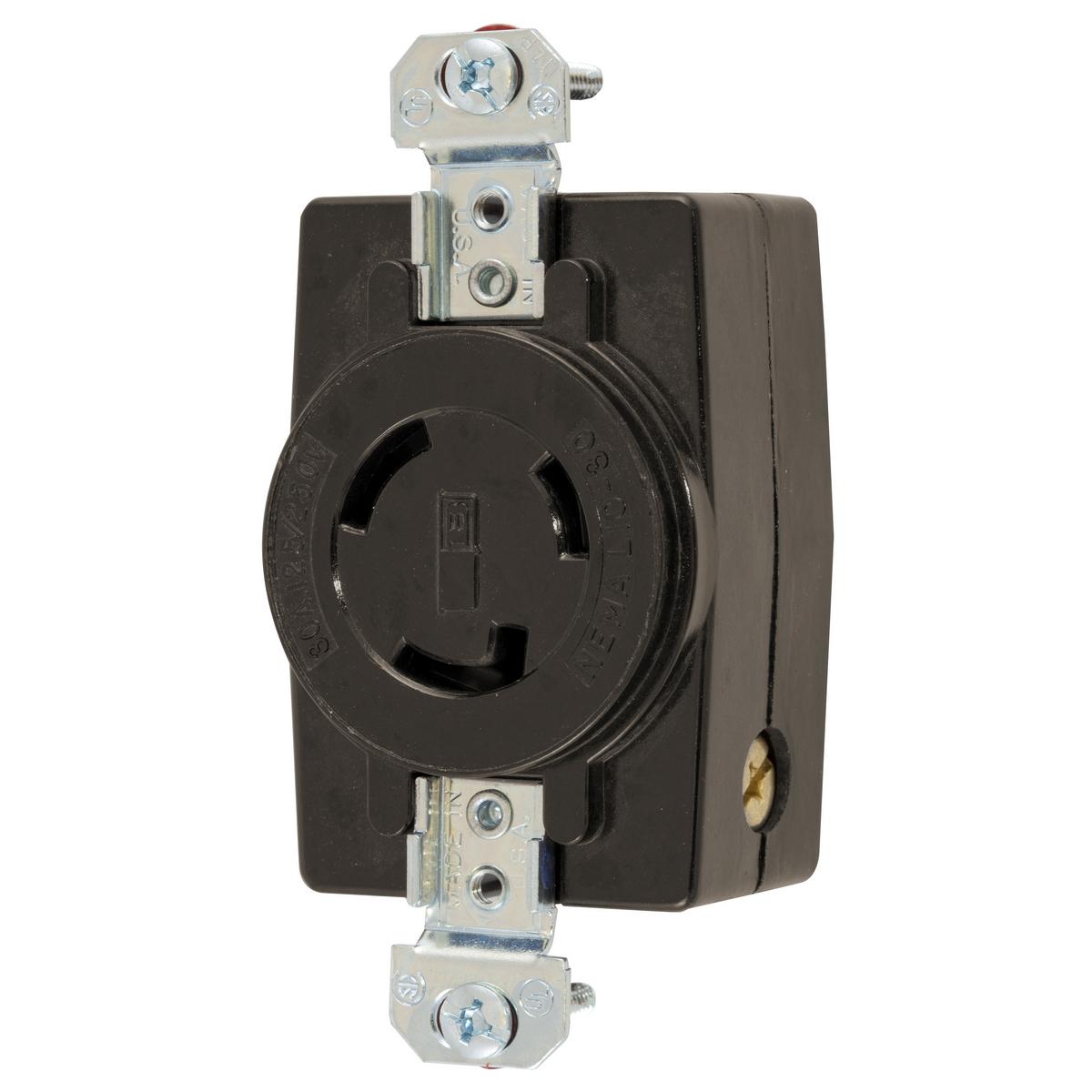

Wiring Device-Kellems HBL2660 1-Phase Heavy Duty Standard Single Screw Mount

Product Description

The Wiring Device-Kellems HBL2660 is a locking receptacle designed for reliable electrical connections. This device operates at 125/250 VAC and supports 30 A current with three poles and three wires. It is suitable for various applications in industrial environments.

• 1-Phase Heavy Duty Standard Single Screw Mount
• NEMA Rating: L10-30R
• Temperature Range: -40 to 75 degrees Celsius

Product Highlights

This receptacle is ideal for use in demanding conditions. It features a nylon construction for durability and an IP20 enclosure rating. This helps protect against dust and solids, ensuring long-lasting performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• Material: Nylon
• Enclosure: IP20
• NEMA Rating: L10-30R
• Terminal Type: Screw
• Temperature Rating: -40 to 75 degrees Celsius
