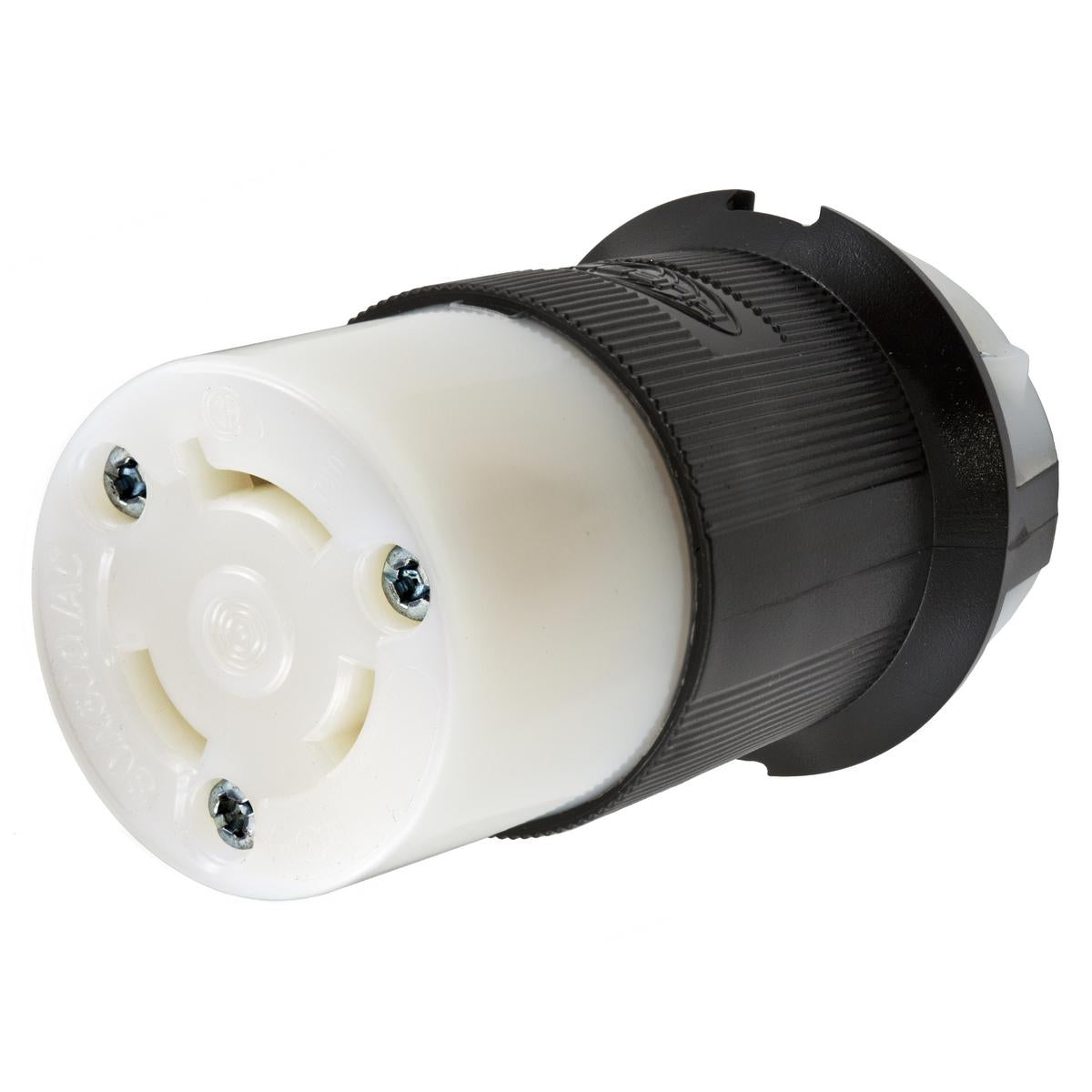

Wiring Device-Kellems HBL2653 Heavy Duty Non-Grounding Cord Mount Locking Connector

Product Description

Wiring Device-Kellems HBL2653 is a heavy-duty non-grounding cord mount locking connector. It operates at a voltage of six hundred VAC and supports thirty amps across two poles and three wires. With an L9-30R NEMA rating, this connector is suitable for industrial applications.

• Temperature range from -40 to 75 degrees Celsius.
• Designed with a pressure screw terminal for secure connections.
• Compatible with cords that have a diameter between 0.36 to 0.93 inches.

Product Highlights

This product features an excellent cord grip design that protects terminations from strain, making it ideal for heavy-duty use. The clear, funnel-shaped wire entry allows for easy termination and the integral dust shield keeps the wiring chamber protected from contaminants.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: L9-30R
• Temperature Rating: -40 to 75 degrees C
• Cord Diameter: 0.36 to 0.93 in
• Dimensions: 2.26 x 2.26 x 3.86 in
• Material: Nylon
• Enclosure: IP20
• Grade: Industrial
