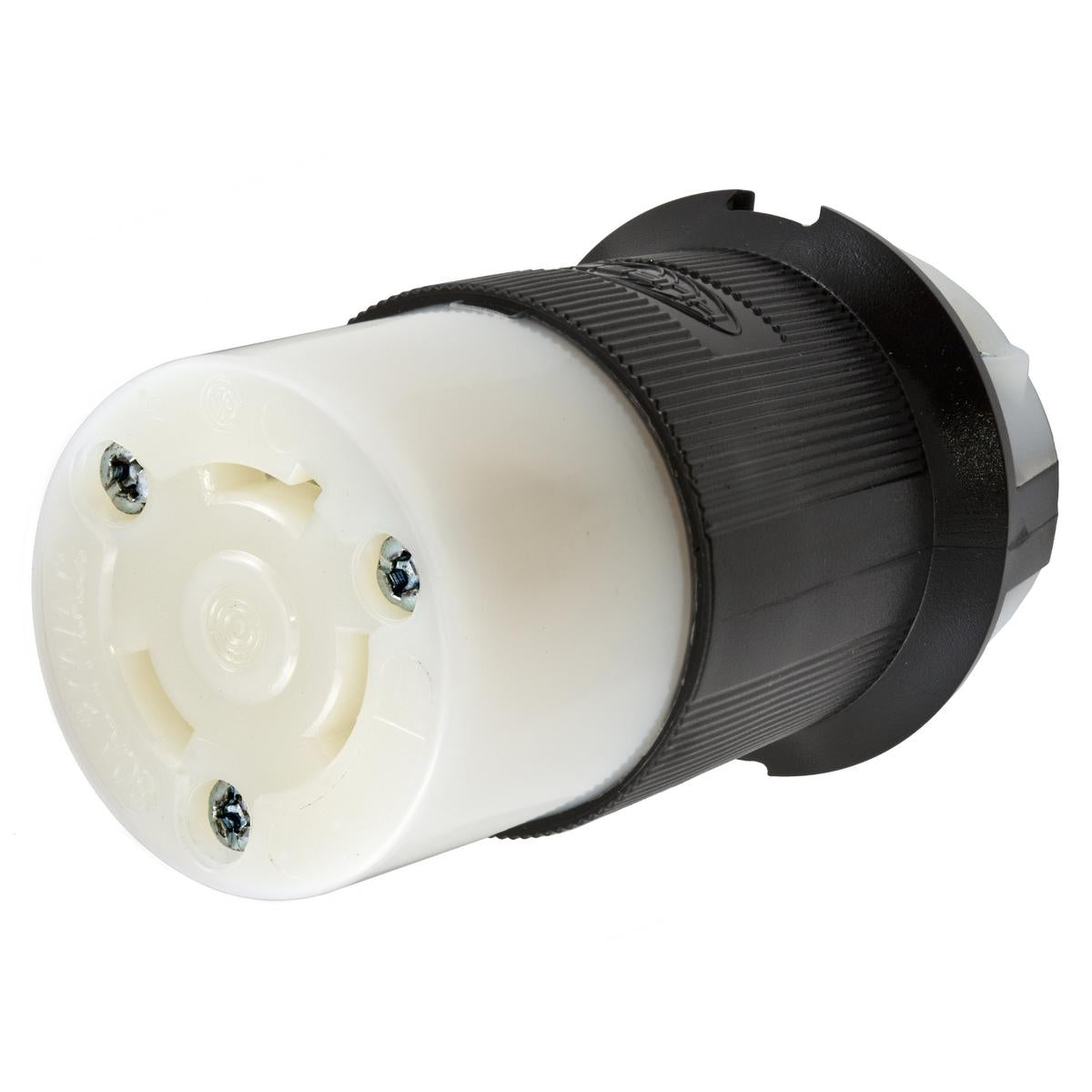

Wiring Device-Kellems HBL2633 Female Connector Heavy Duty Isolated Grounding Standard Sized Cord Mount

Product Description

The Wiring Device-Kellems HBL2633 is a heavy-duty female connector designed for isolated grounding. It is made for standard-sized cord mounting and is rated for 277 VAC and thirty amps. This connector features two poles and three wires, suitable for various applications requiring robust electrical connections.

• Compatible with cables ranging from 0.36 to 0.93 inches in diameter
• Constructed from industrial-grade nylon for durability
• Temperature rated from -40 to 75 degrees Celsius

Product Highlights

This connector is ideal for harsh environments, providing reliable performance and safety.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: Heavy Duty Isolated Grounding Standard Sized Cord Mount
• Voltage Rating: 277 VAC
• Amperage Rating: 30 A
• Horsepower Rating: 3 hp
• NEMA Rating: L7-30R/WD1/WD5
• Enclosure Rating: IP30
• Material: Nylon
• Color: Black/White
• Dimensions: 2.26 x 2.26 x 3.86 inches
• Cord Diameter: 0.36 to 0.93 inches
• Terminal Type: Pressure Screw
• Temperature Range: -40 to 75 degrees Celsius
• Number of Poles: 2
• Number of Wires: 3
