Wiring Device-Kellems HBL2631 Wiring Device-Kellems Twist-Lock 1-Phase Grounding Male Standard Cord Mount Plug

Product Description

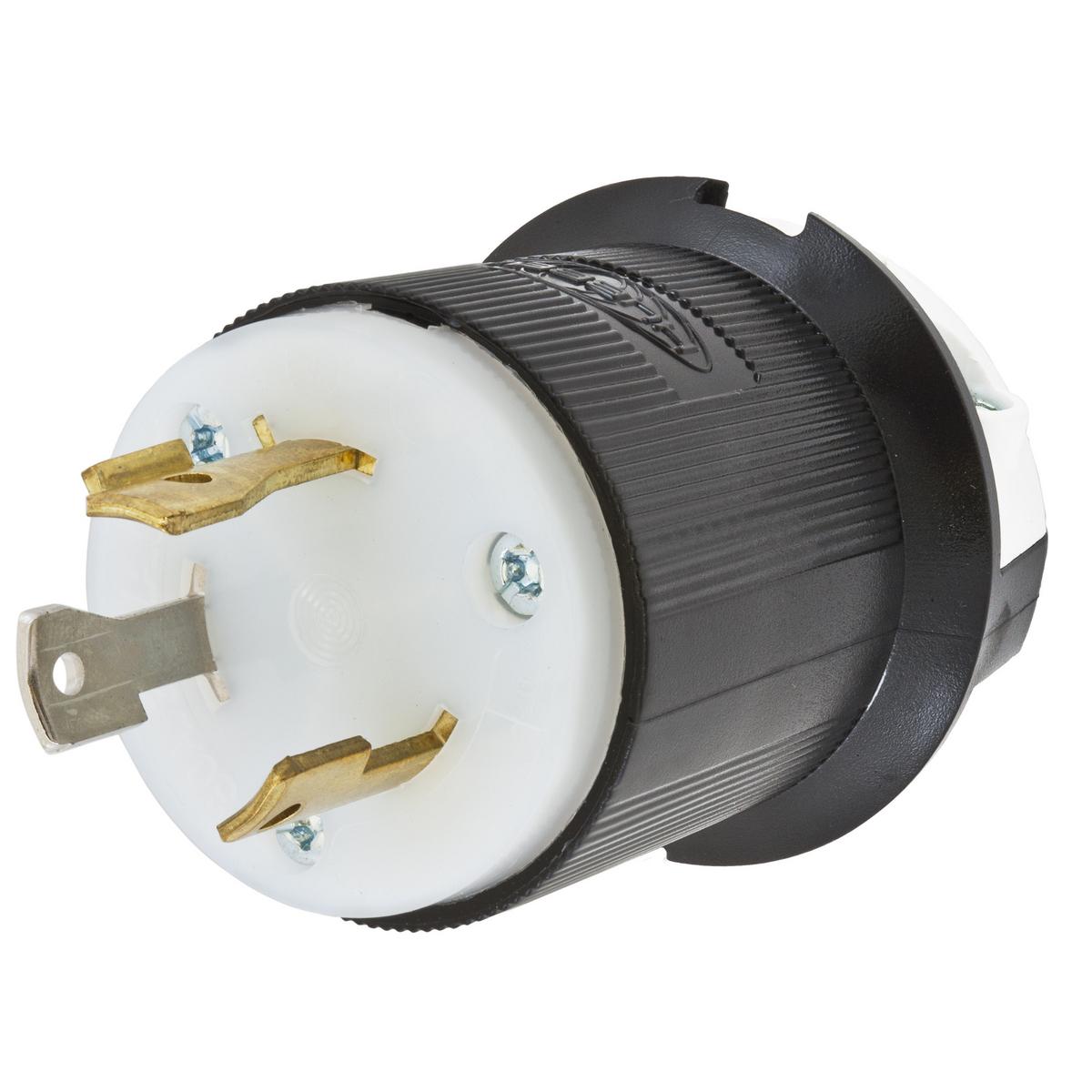

The Wiring Device-Kellems HBL2631 is a Twist-Lock Insulgrip Locking Plug designed for reliable connections in industrial applications. It is a 1-phase grounding male standard cord mount plug rated for 277 VAC and thirty Amperes. This plug features two poles and three wires, making it suitable for various electrical connections.

• Durable nylon construction enhances reliability
• Temperature range from -40 to 75 degrees Celsius
• Designed for cord diameters between 0.36 to 0.93 inches

Product Highlights

This plug is built for ease of use with a funnel-shaped wire entry and incorporates a dust shield to protect the wiring chamber. Its superior cord grip design prevents damage from strain, ensuring a secure termination.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 277 VAC
• Amperage Rating: 30 A
• Horsepower: 3 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.36 to 0.93 in
• Dimensions: 2.26 x 2.26 x 2.75 in
• Material: Nylon
• NEMA Rating: L7-30P
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Enclosure: IP20
• Grade: Industrial
• Color: Black/White
