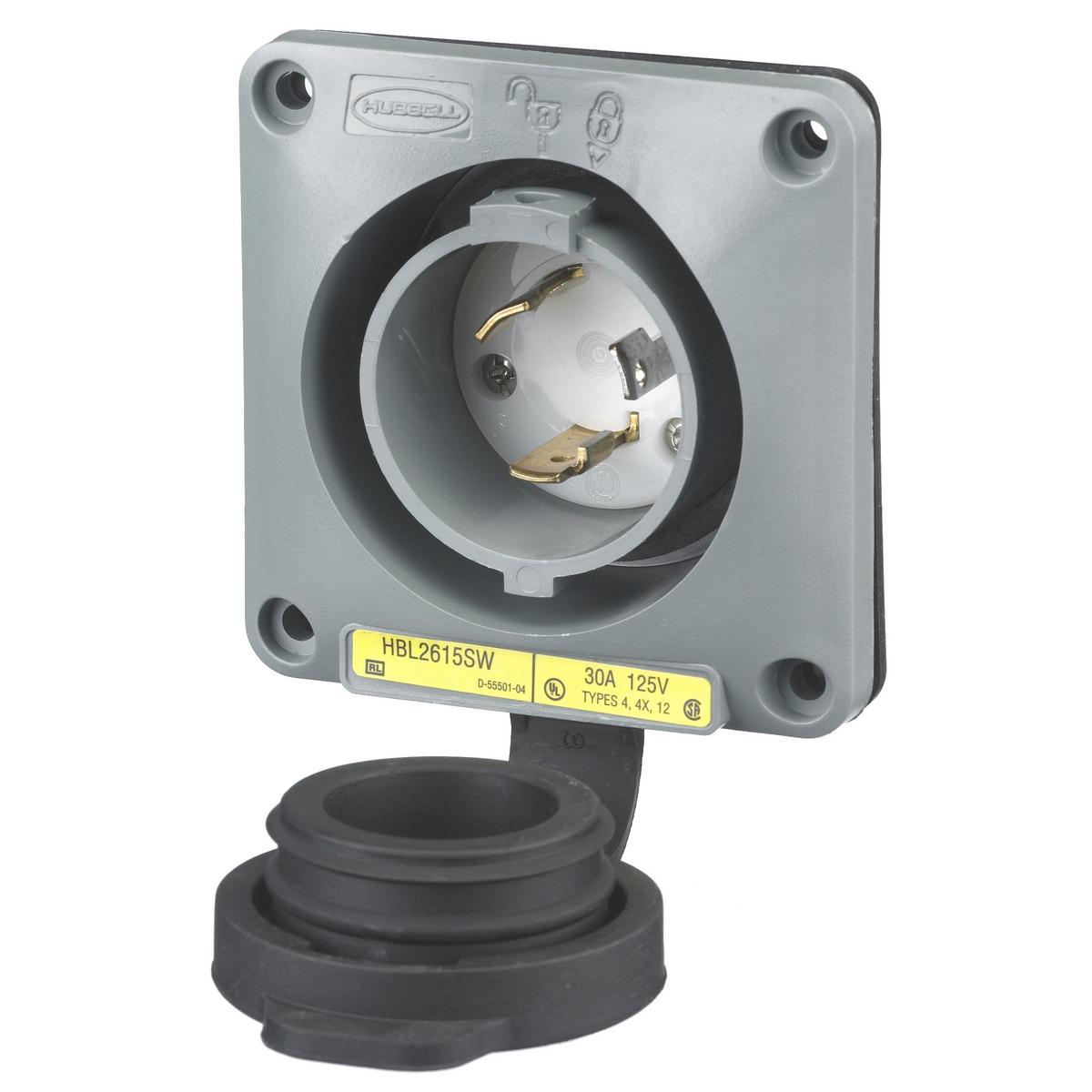

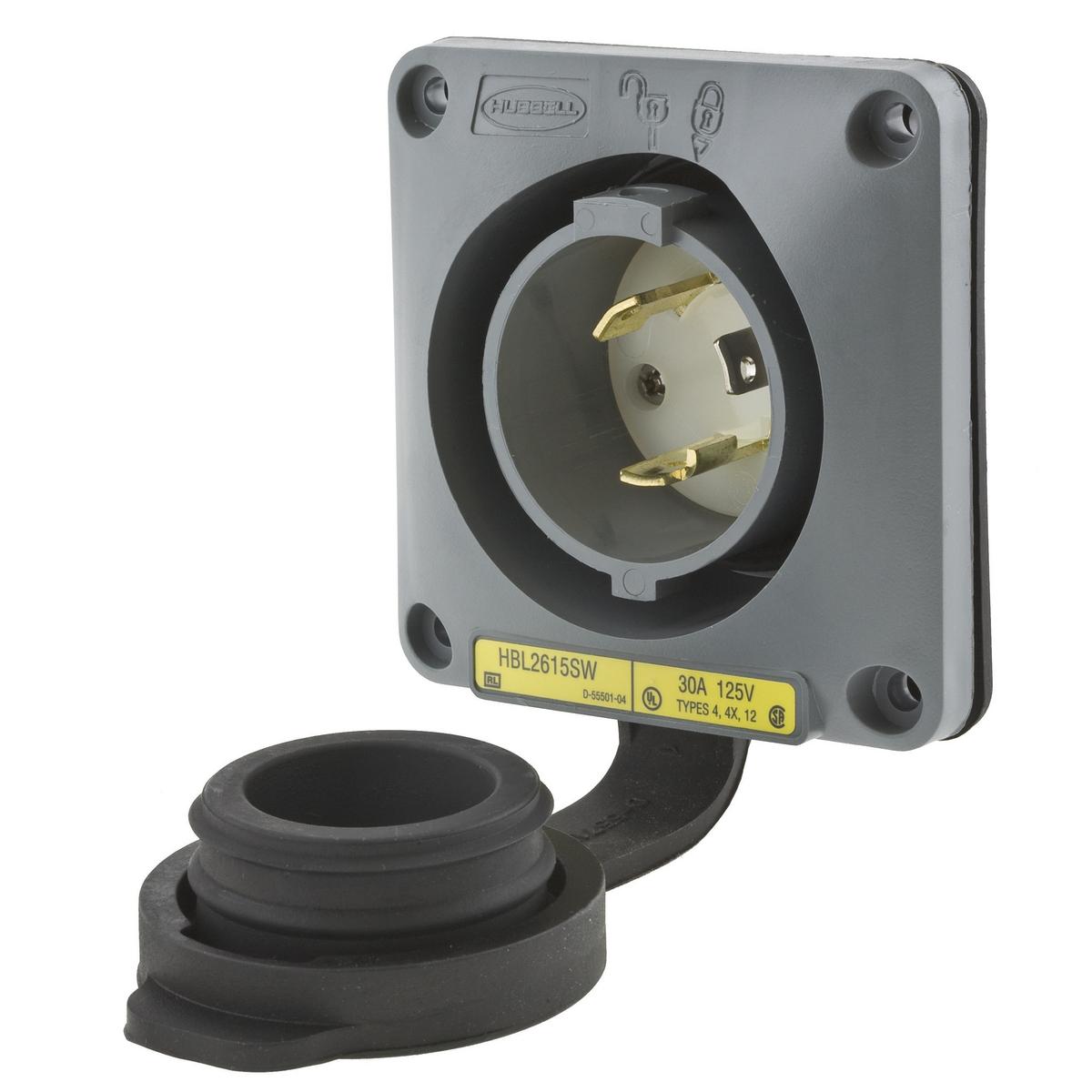

Wiring Device-Kellems HBL2615SW 1-Phase Grounding Standard Single Shrouded Watertight Screw Mount

Product Description

The Wiring Device-Kellems Twist-Lock Safety-Shroud HBL2615SW offers rugged performance in various environments. This locking flanged inlet is designed for 1-phase grounding and can handle up to 30 amps at 125 VAC. It features a watertight design suitable for outdoor and industrial applications.

• Watertight screw mount locking flanged inlet
• Temperature rating of -40 to 75 degrees Celsius
• NEMA rated for industrial use

Product Highlights

Designed for heavy-duty use in industrial settings, this inlet provides safety and reliability. It features clear terminal identification for easy installation and maintenance.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 3.75 x 3.75 x 2.27 inches
• Enclosure: NEMA 4/4X/12/IP66
• Grade: Industrial
• Material: Thermoplastic
• NEMA Rating: L5-30P/WD1/WD5
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
