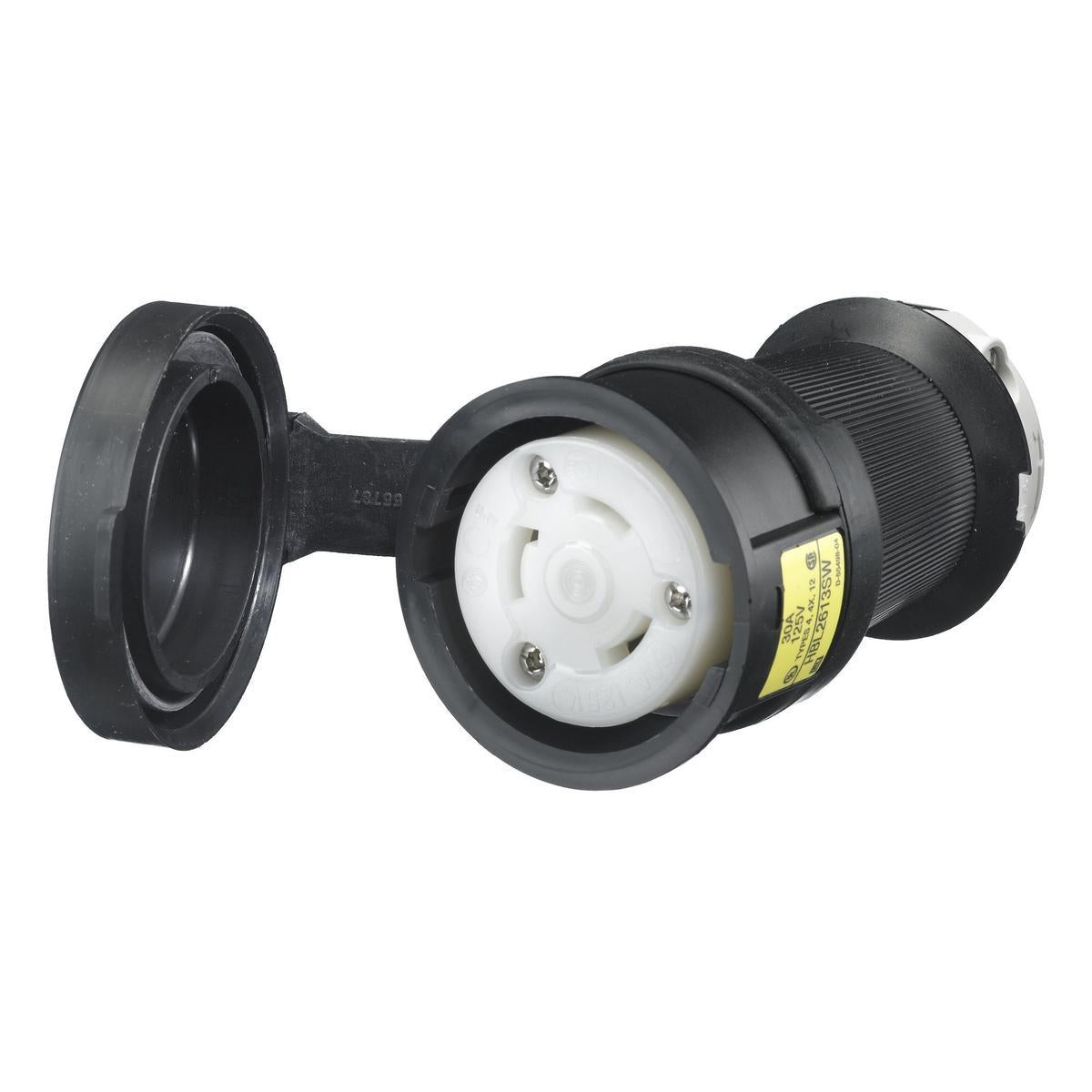

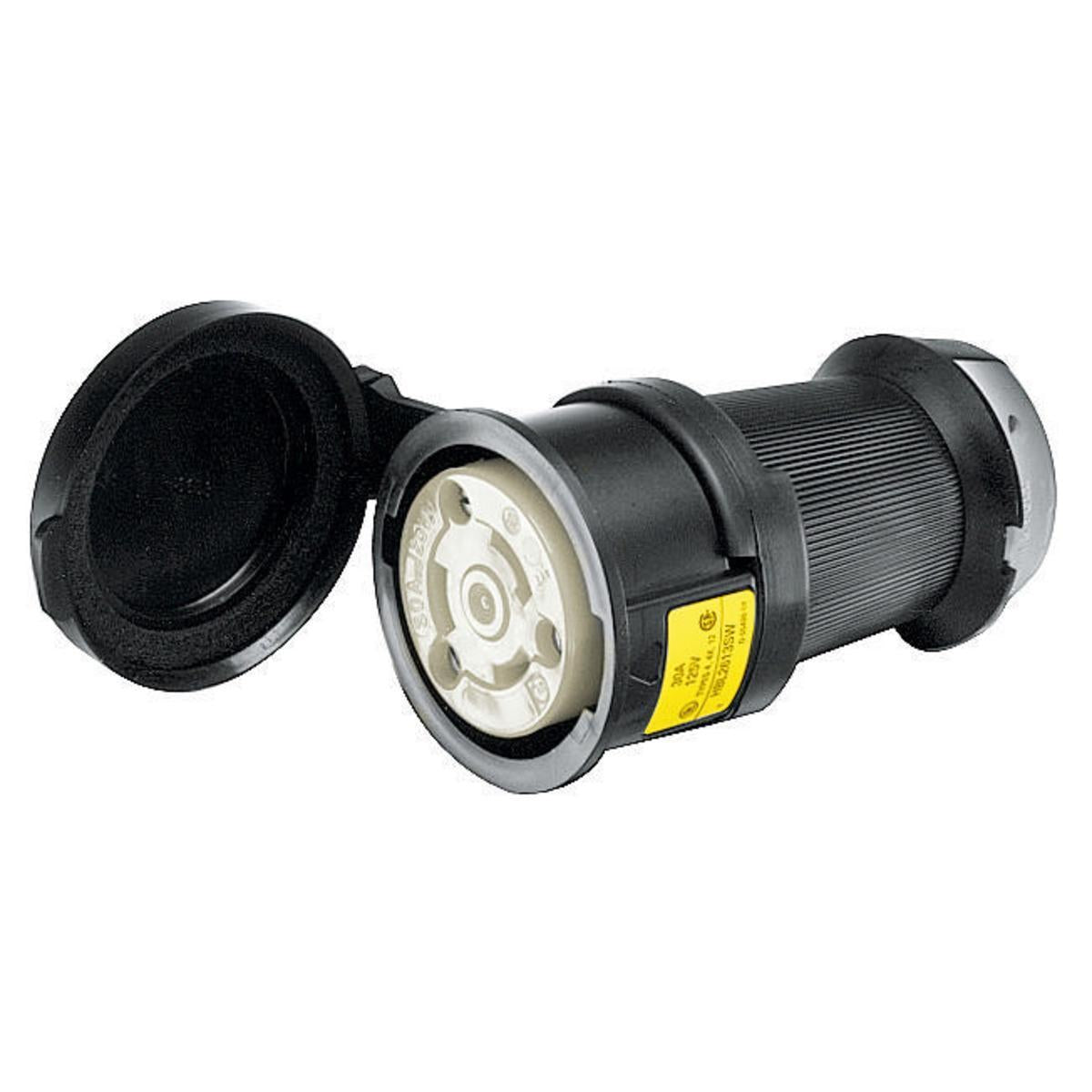

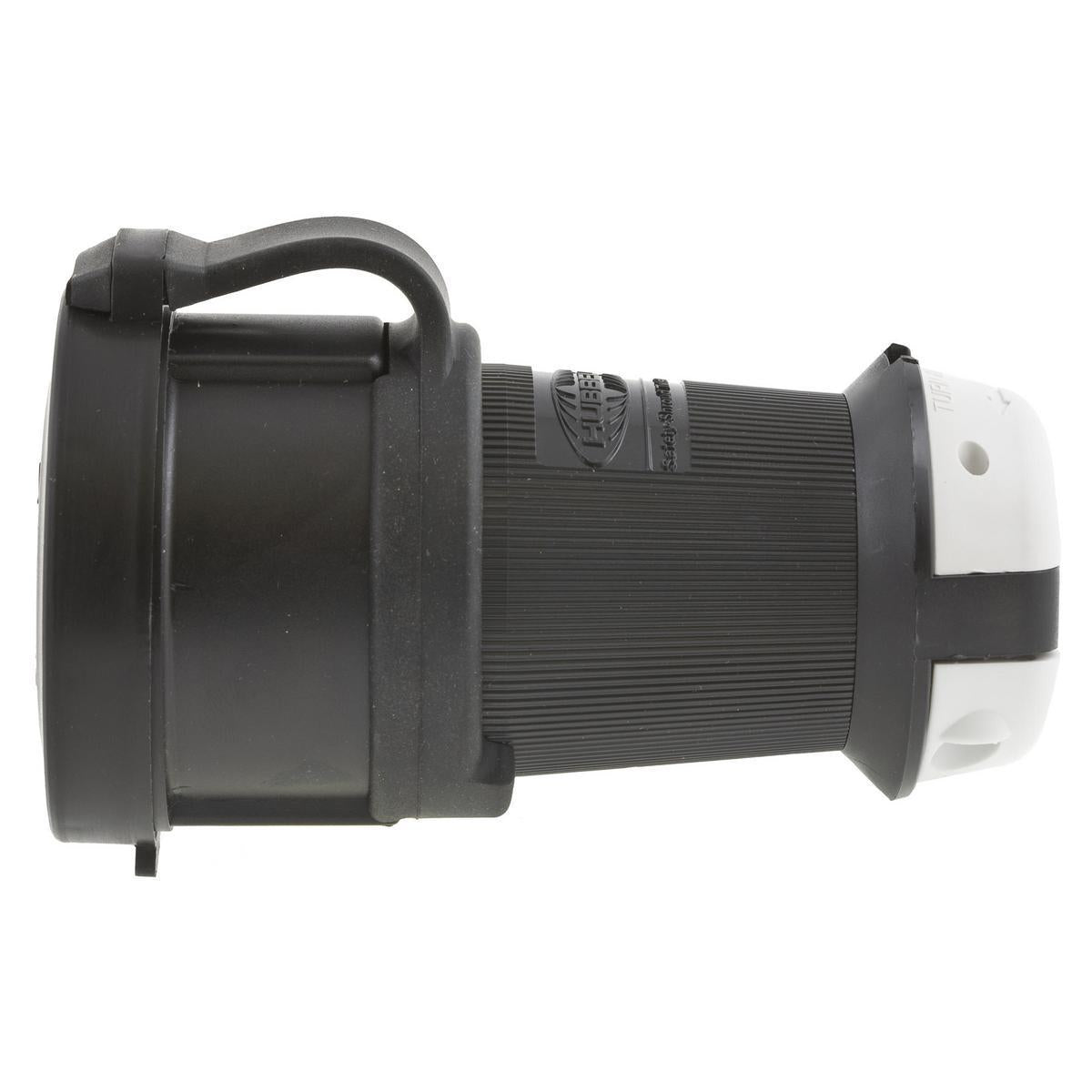

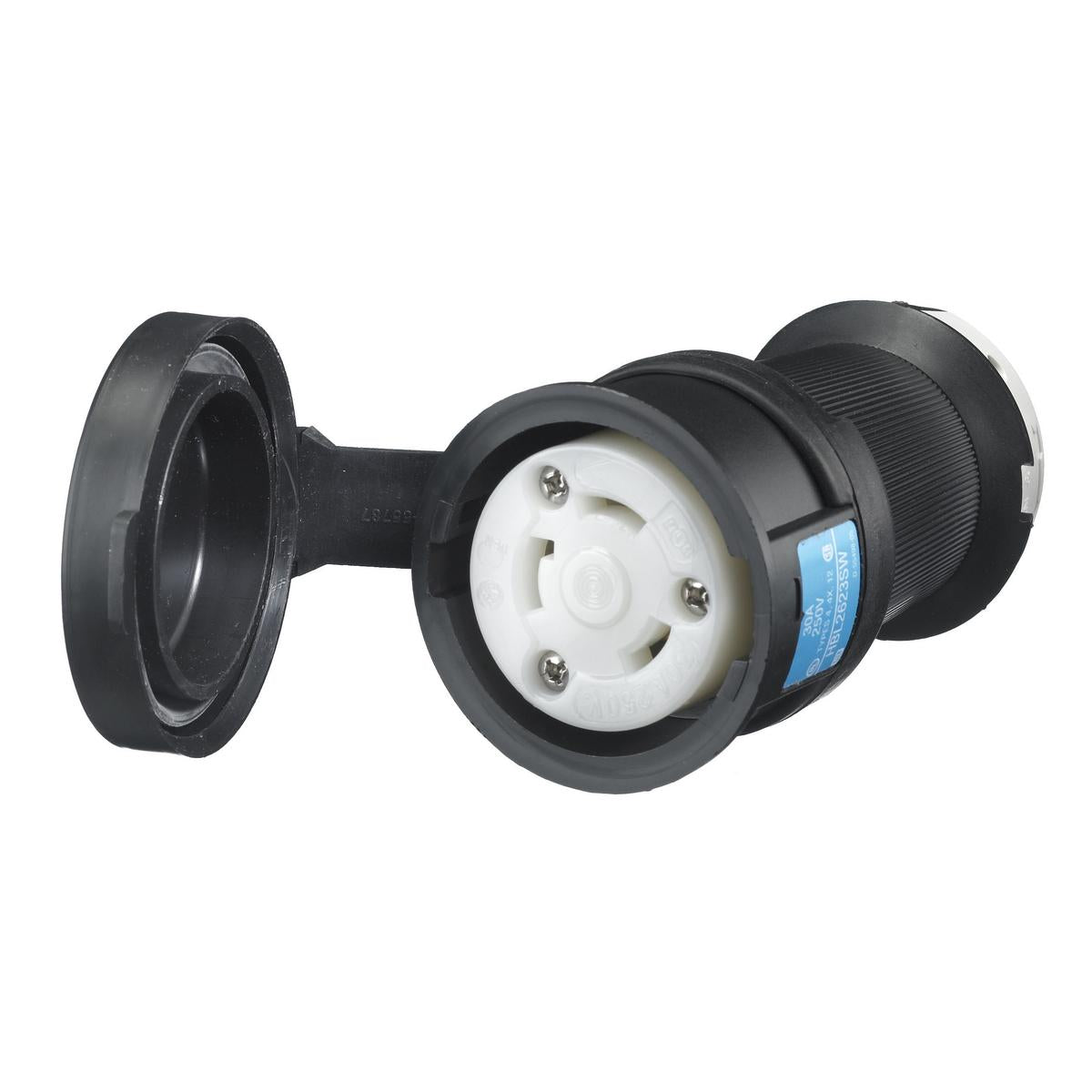

Wiring Device-Kellems HBL2613SW Heavy Duty Grounding Cord Mount Watertight Locking Connector

Product Description

The Wiring Device-Kellems HBL2613SW is a heavy-duty grounding cord mount watertight locking connector designed for commercial and industrial applications. This model operates at 125 VAC and supports up to 30 A, featuring two poles and three wires. The device is constructed with a composite material and comes in black and white colors.

• IP66 rated enclosure for dust and water resistance
• Temperature range of -40 to 75 degrees Celsius
• Compatible with cords between 0.36 to 0.93 inches in diameter

Product Highlights

This locking connector is ideal for outdoor use due to its watertight design. Its durable construction ensures reliable performance in harsh environments.

Product Information

Standard Information

• Brand: Hubbell
• Series: HBL®

Technical Specifications

• Cord Diameter: 0.36 to 0.93 in
• Dimensions: 2.57 x 2.57 x 4.4 in
• Enclosure: IP66
• Grade: Commercial/Industrial
• Material: Composite
• NEMA Rating: 4/4X/12/L5-30R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Pressure Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
