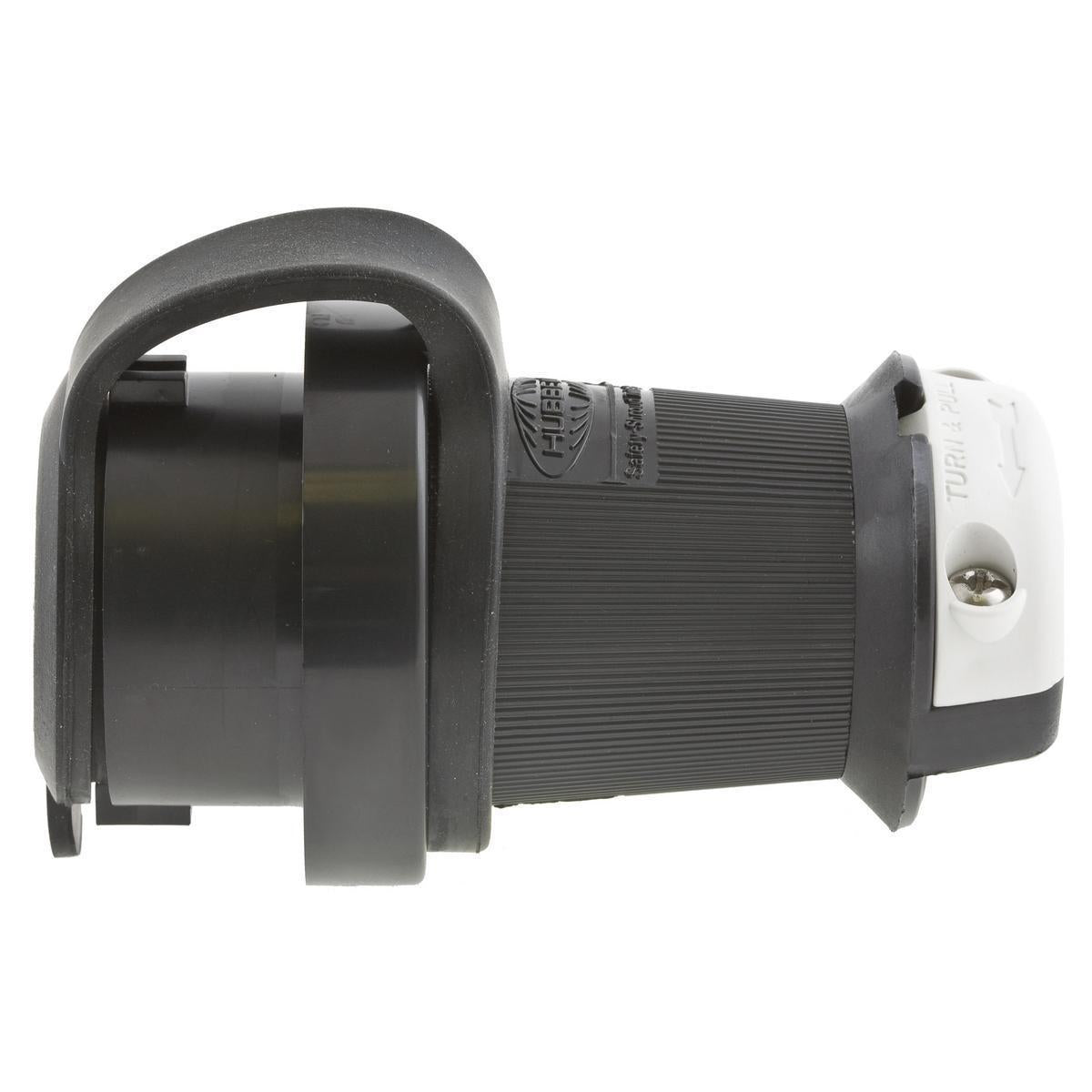

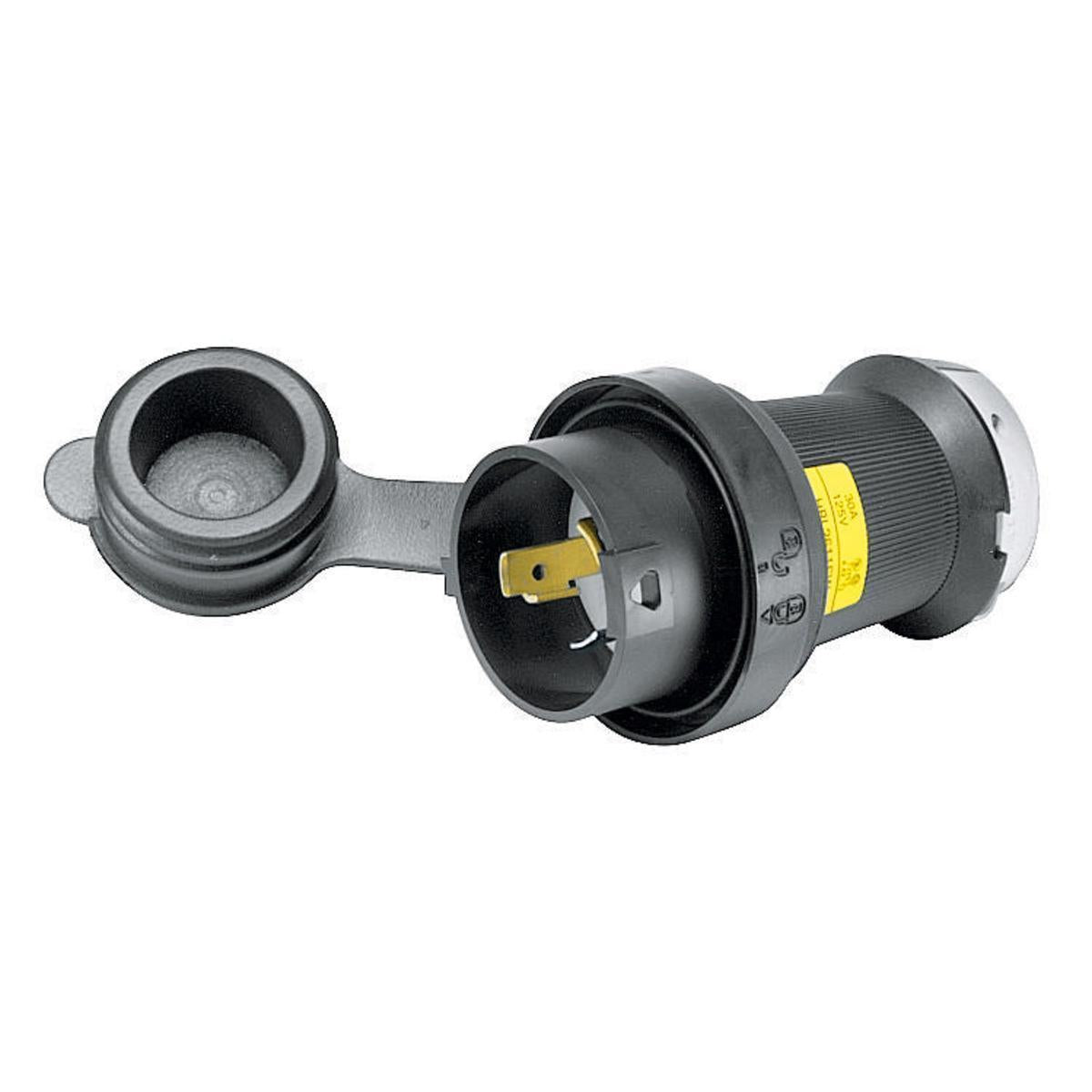

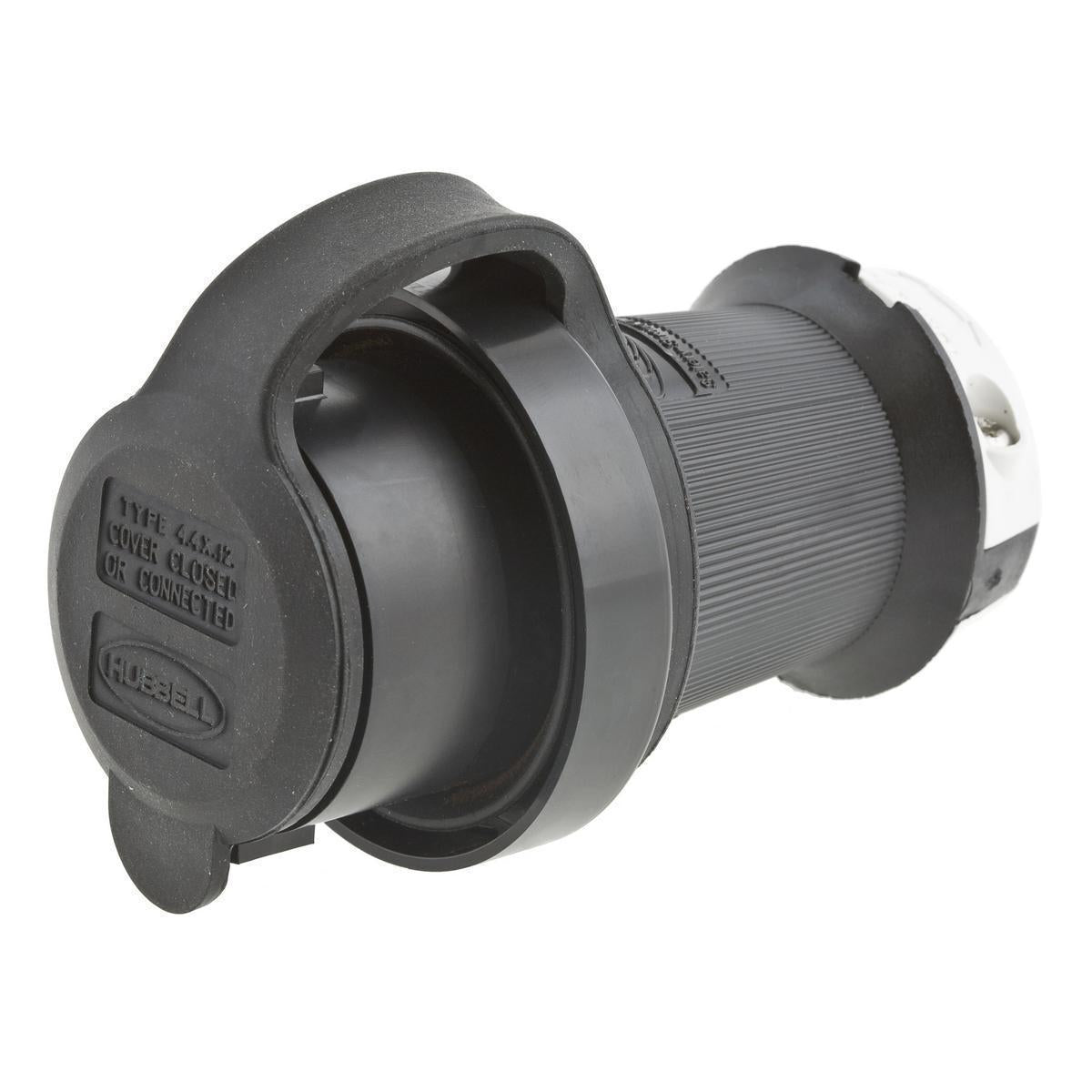

Wiring Device-Kellems HBL2611SW 1-Phase Extra Heavy Duty Grounding Cord Mount Watertight

Product Description

The Wiring Device-Kellems HBL2611SW is a locking plug designed for demanding electrical applications. It provides reliable connections in wet and harsh environments. The device offers a voltage rating of one hundred twenty-five volts and an amperage rating of thirty amps.

• Suitable for use in industrial settings.
• NEMA rating of L5-30P for compatibility with standard circuits.
• Durable construction for long-lasting service.

Product Highlights

This locking plug is watertight and made for heavy-duty use. It is easy to install and connects securely.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Extra Heavy Duty Grounding Cord Mount Watertight
• Color: Black/White
• Grade: Industrial
• NEMA Rating: L5-30P
• Horsepower: 2 hp
• Voltage Rating: 125 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.36 to 0.93 in
• Enclosure: NEMA 4/4X/12/IP66
• Material: Composite
• Temperature Rating: -40 to 75 deg C
• Dimensions: 2.77 x 2.77 x 4.4 in
• Terminal Type: Screw
