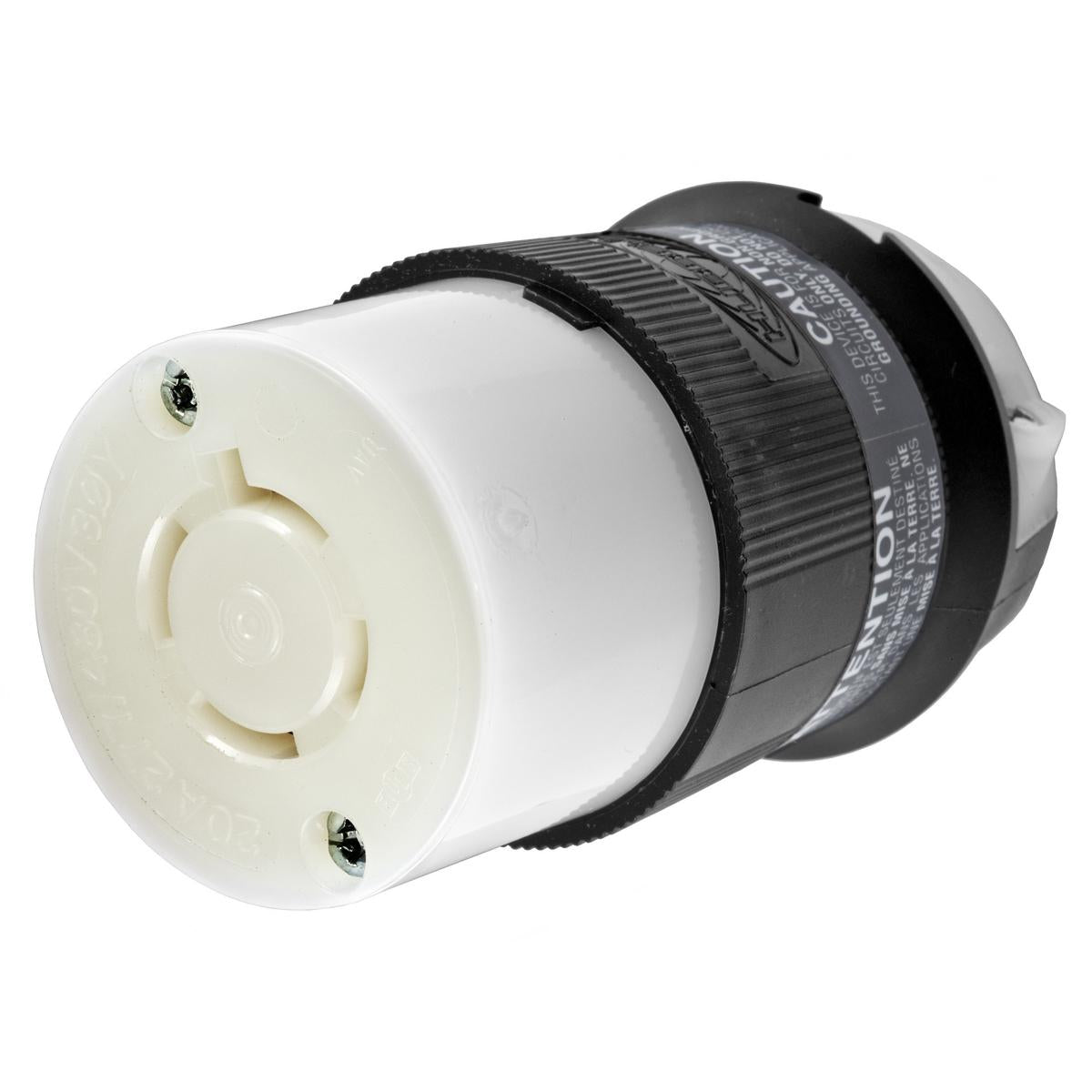

Wiring Device-Kellems HBL2453 3-Phase Heavy Duty Isolated Non-Grounding Standard Sized Cord Mount L19-20R/WD1/WD5

Product Description

The Wiring Device-Kellems HBL2453 is a 3-phase heavy duty isolated non-grounding standard sized cord mount female connector. This connector is rated for 277Y/480 VAC and has a capacity of twenty amps. It features a four pole, four wire design and is suitable for various industrial applications.

• Voltage rating of 277Y/480 VAC
• Amperage rating of 20 A
• Industrial grade with IP20 enclosure

Product Highlights

This connector is ideal for heavy duty usage in industrial settings. It is designed for easy installation and reliable performance under various environmental conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 3-Phase Heavy Duty Isolated Non-Grounding Standard Sized Cord Mount
• Cord Diameter: 0.35 to 1.15 in
• Dimensions: 2.33 x 2.33 x 3.86 in
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 5 hp
• Material: Nylon
• NEMA Rating: L19-20R/WD1/WD5
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Voltage Rating: 277Y/480 VAC
• Amperage Rating: 20 A
• Number of Poles: 4
• Number of Wires: 4
• Color: Black/White
