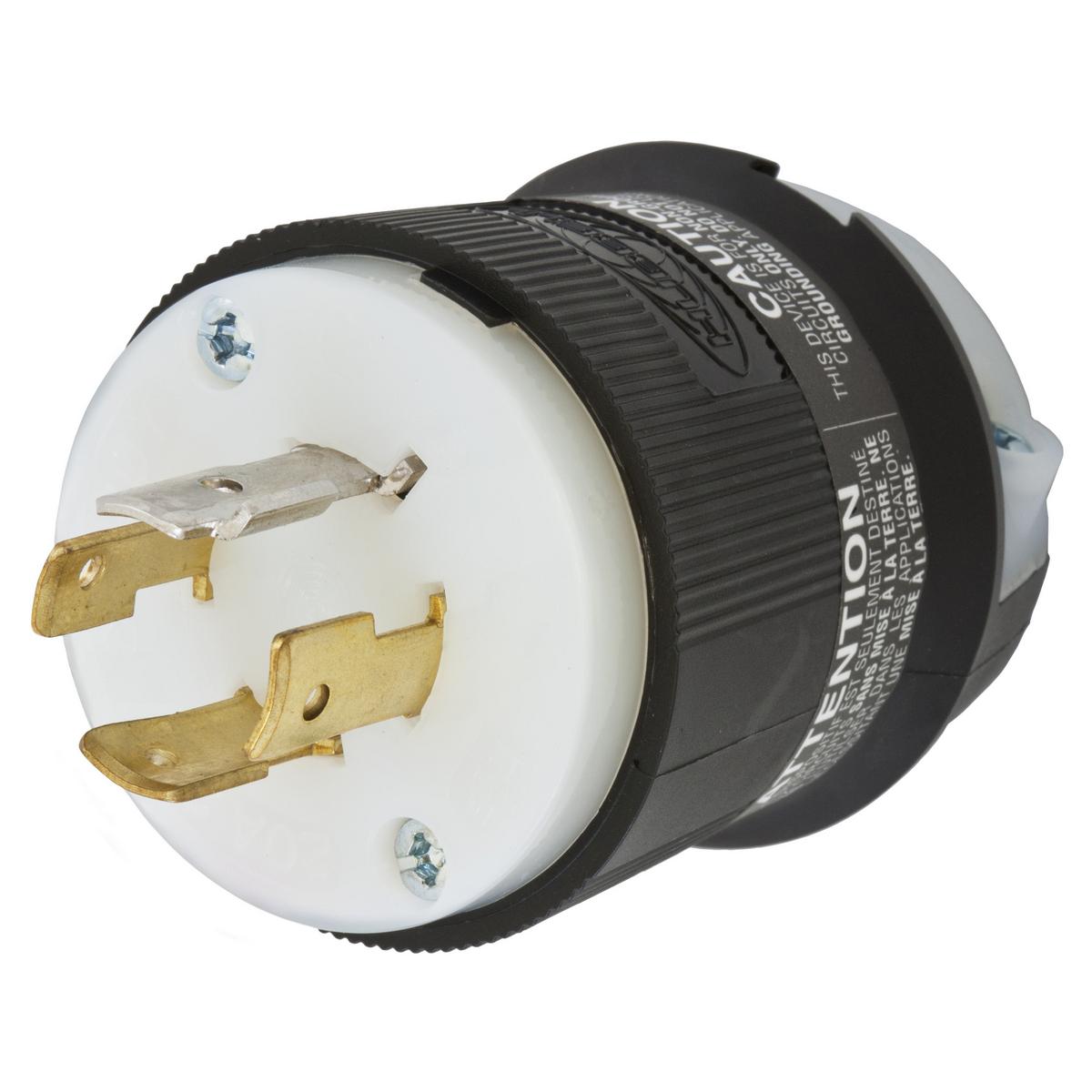

Wiring Device-Kellems HBL2451 3-Phase Non-Grounding Male Standard Cord Mount Locking Plug L19-20P

Product Description

The Wiring Device-Kellems HBL2451 is a 3-Phase Non-Grounding Male Standard Cord Mount Locking Plug from Hubbell. This plug operates at 277/480 VAC and has a current rating of twenty amps. It features four poles and four wires, providing a reliable connection in industrial applications.

• Designed for industrial use with an IP20 enclosure rating.
• Compatible with cords having a diameter from 0.35 to 1.15 inches.
• Temperature rated from -40 to 75 degrees Celsius.

Product Highlights

This locking plug is ideal for demanding environments, ensuring a secure connection while resisting impact and chemicals.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 3-Phase Non-Grounding Male Standard Cord Mount
• Voltage Rating: 277/480 VAC
• Amperage Rating: 20 A
• Horsepower: 5 hp
• Number of Poles: 4
• Number of Wires: 4
• NEMA Rating: L19-20P
• Material: Nylon
• Enclosure: IP20
• Dimensions: 2.33 x 2.33 x 2.75 inches
• Cord Diameter: 0.35 to 1.15 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
