Wiring Device-Kellems HBL2443 3-Phase Heavy Duty Isolated Non-Grounding Standard Sized Cord Mount

Product Description

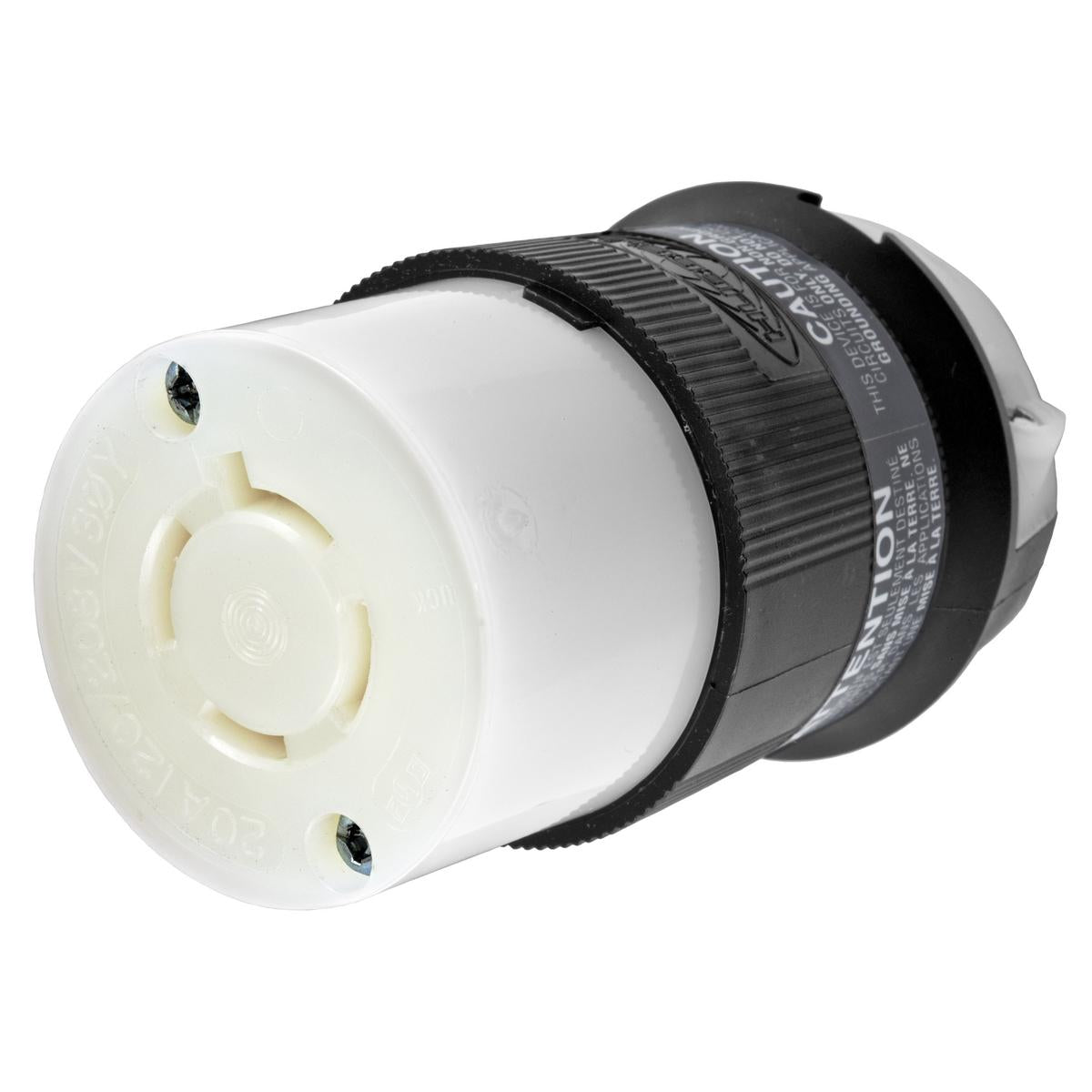

The Wiring Device-Kellems HBL2443 is a Twist-Lock Insulgrip Female Connector designed for 3-phase applications. It operates at 120Y/208 Delta VAC and supports a maximum load of twenty amperes. The connector features four poles and four wires, suitable for heavy-duty usage in industrial environments. The durable nylon construction ensures reliability in various conditions.

• Compatible with cord diameters from 0.35 to 1.15 inches
• Rated for temperatures between negative forty to seventy-five degrees Celsius
• IP20 enclosure for protection against dust and foreign objects

Product Highlights

This connector is ideal for industrial applications requiring a non-grounding solution with high durability and temperature resistance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 3-Phase Heavy Duty Isolated Non-Grounding Standard Sized Cord Mount
• Voltage Rating: 120Y/208 Delta VAC
• Amperage Rating: 20 A
• Horsepower: 2 hp
• Color: Black/White
• Enclosure: IP20
• Material: Nylon
• Dimensions: 2.33 x 2.33 x 3.86 in
• NEMA Rating: L18-20R/WD1/WD5
• Temperature Rating: -40 to 75 deg C
• Cord Diameter: 0.35 to 1.15 in
• Terminal Type: Pressure Screw
• Number of Poles: 4
• Number of Wires: 4
