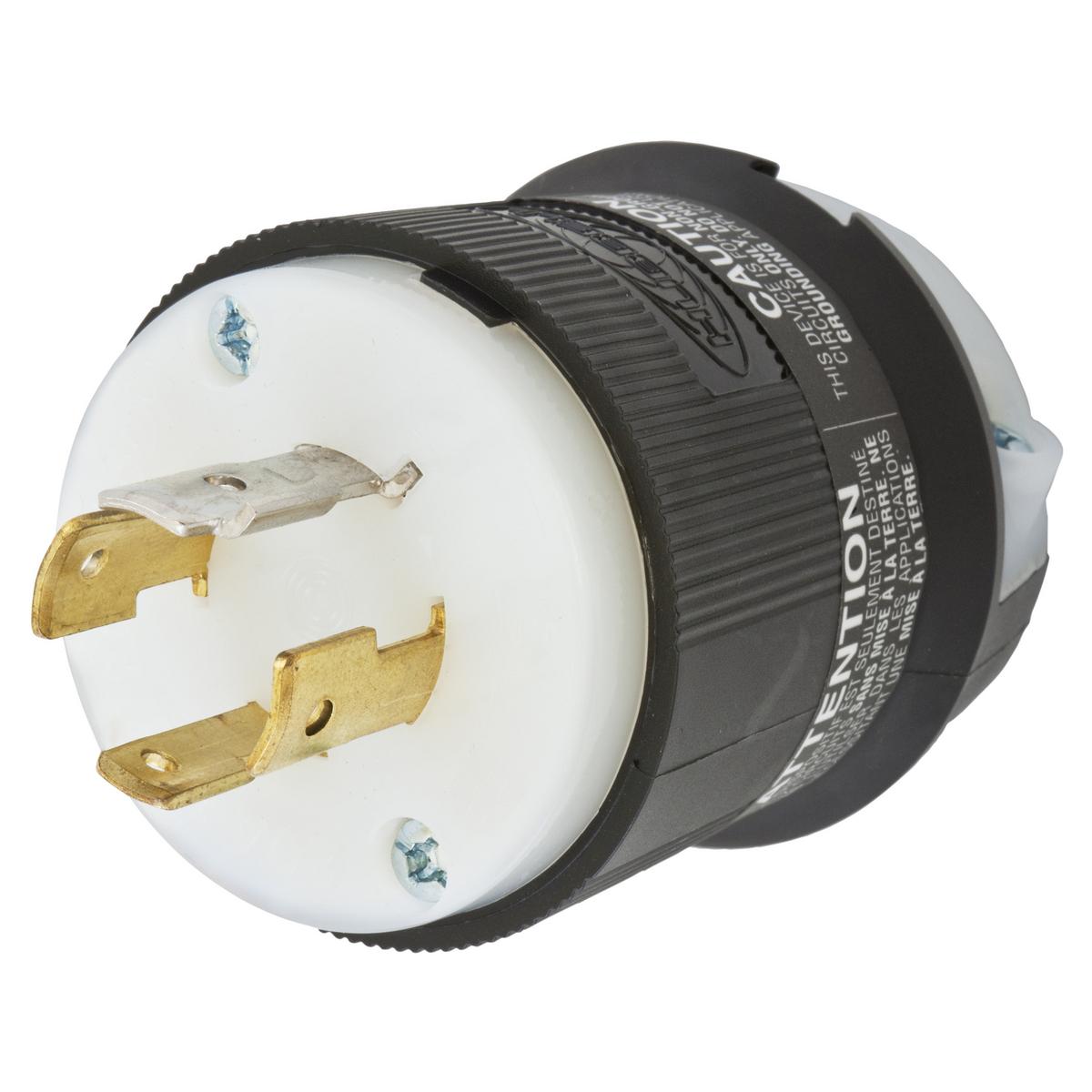

Wiring Device-Kellems HBL2441 3-Phase Non-Grounding Cord Mount Locking Plug 120/208 VAC

Product Description

The Wiring Device-Kellems HBL2441 is a robust locking plug from Hubbell that supports 3-phase non-grounding functions. It operates at 120/208 VAC and has a maximum capacity of twenty amperes. Designed for industrial applications, this plug features a durable nylon body that withstands impact and chemical exposure, making it suitable for use in various environments, including the entertainment industry.

• 4 poles and 4 wires design
• IP20 enclosure for added protection
• Rated for negative forty to seventy-five degrees Celsius

Product Highlights

Designed with a secure cord grip to prevent strain on connections and an easy wire entry for installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 3-Phase Non-Grounding Cord Mount
• Voltage Rating: 120/208 VAC
• Amperage Rating: 20 A
• Horsepower: 2 hp
• Number of Poles: 4
• Number of Wires: 4
• Cord Diameter: 0.35 to 1.15 in
• Dimensions: 2.33 x 2.33 x 2.75 in
• Material: Nylon
• Color: Black/White
• NEMA Rating: L18-20P
• Enclosure: IP20
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Grade: Industrial
