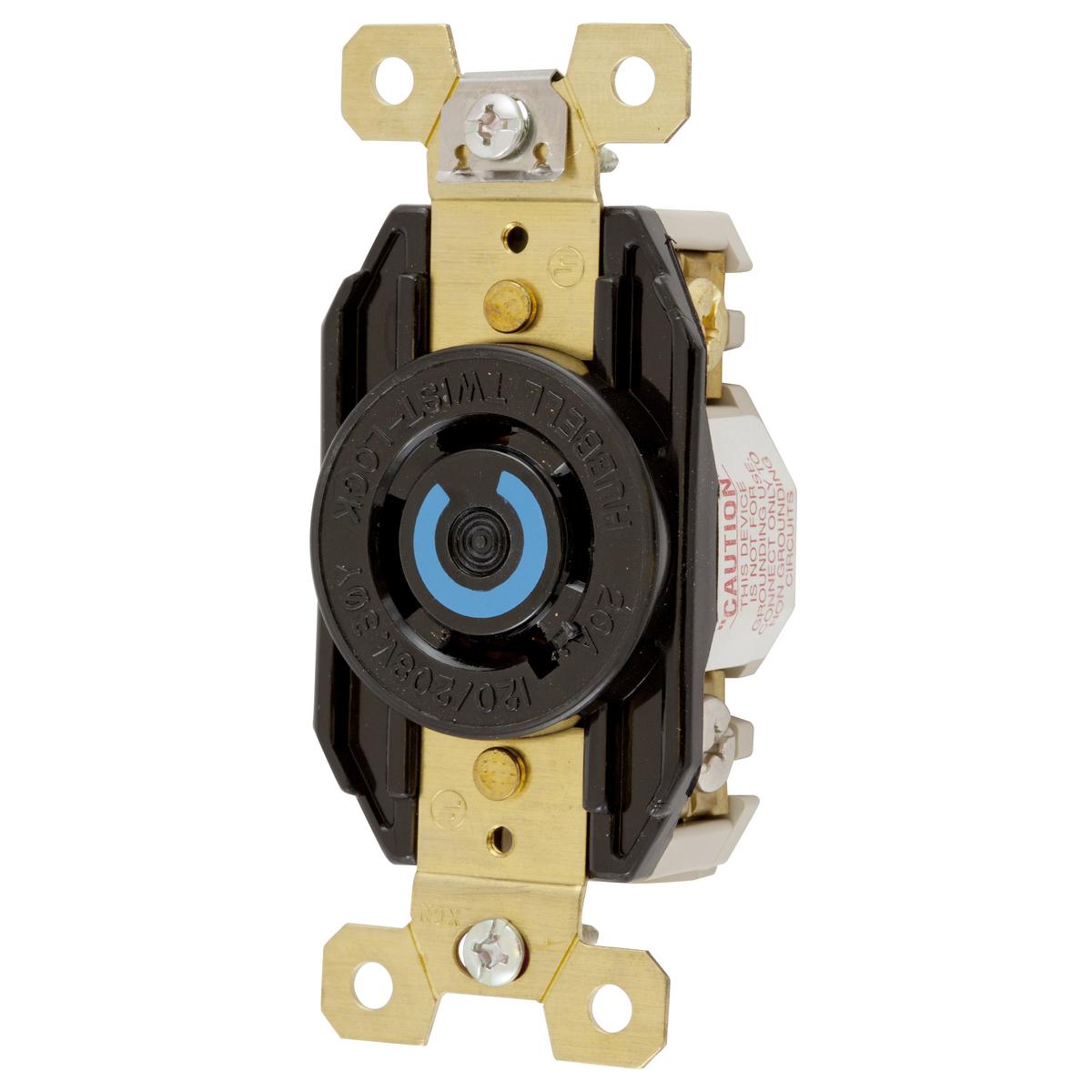

Wiring Device-Kellems HBL2440 Twist-Lock® Locking Receptacle 120/208 VAC 20 A L1820R

Product Description

The Wiring Device-Kellems HBL2440 is a twist-lock locking receptacle designed for heavy-duty applications. This receptacle accommodates three-phase power with a voltage rating of 120/208 VAC and an amperage rating of 20 A. It features a standard single screw mount and is suited for industrial use.

• Heavy-duty flush non-grounding design
• Rated for up to 2 hp
• Constructed from nylon for durability

Product Highlights

The HBL2440 comes with a four-pole and four-wire configuration, making it ideal for various industrial and commercial applications. The receptacle operates efficiently within a temperature range of -40 to 75 degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.28 x 1.7 x 1.23 inches
• Grade: Industrial
• Horsepower: 2 hp
• Material: Nylon
• NEMA Rating: L18-20R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Type: 3-Phase Heavy Duty Flush Non-Grounding Standard Single Screw Mount
• Voltage Rating: 120/208 VAC
• Amperage Rating: 20 A
• Number of Poles: 4
• Number of Wires: 4
• Color: Black
