Wiring Device-Kellems HBL23CM13 connector power 125 VAC

Product Description

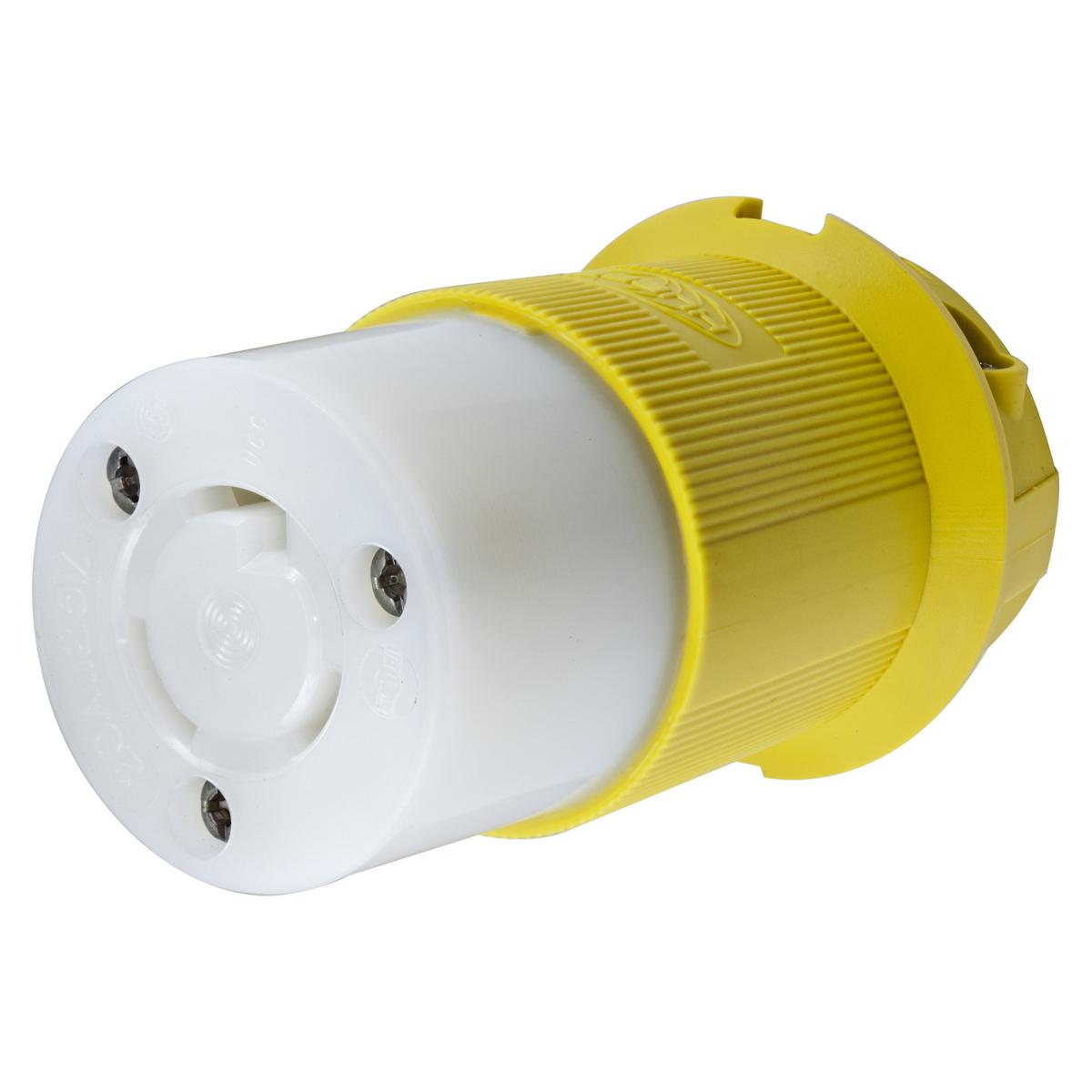

The Wiring Device-Kellems HBL23CM13 is a heavy duty female grounding standard cord mount connector that operates at 125 VAC and 20 A. This connector includes two poles and three wires for versatility in applications. It is designed for use with cords that range from zero point thirty-six to zero point ninety-three inches in diameter.

• Heavy duty female grounding connector
• Marine grade and IP20 rated for durability
• Temperature rating from negative forty to seventy-five degrees Celsius

Product Highlights

This connector is ideal for outdoor and harsh environments, offering robust construction and reliable electrical connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL23CM13
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.36 to 0.93 in
• Dimensions: 2.26 x 2.26 x 3.86 in
• Enclosure: IP20
• Grade: Marine
• Material: Nylon
• NEMA Rating: L5-20R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
