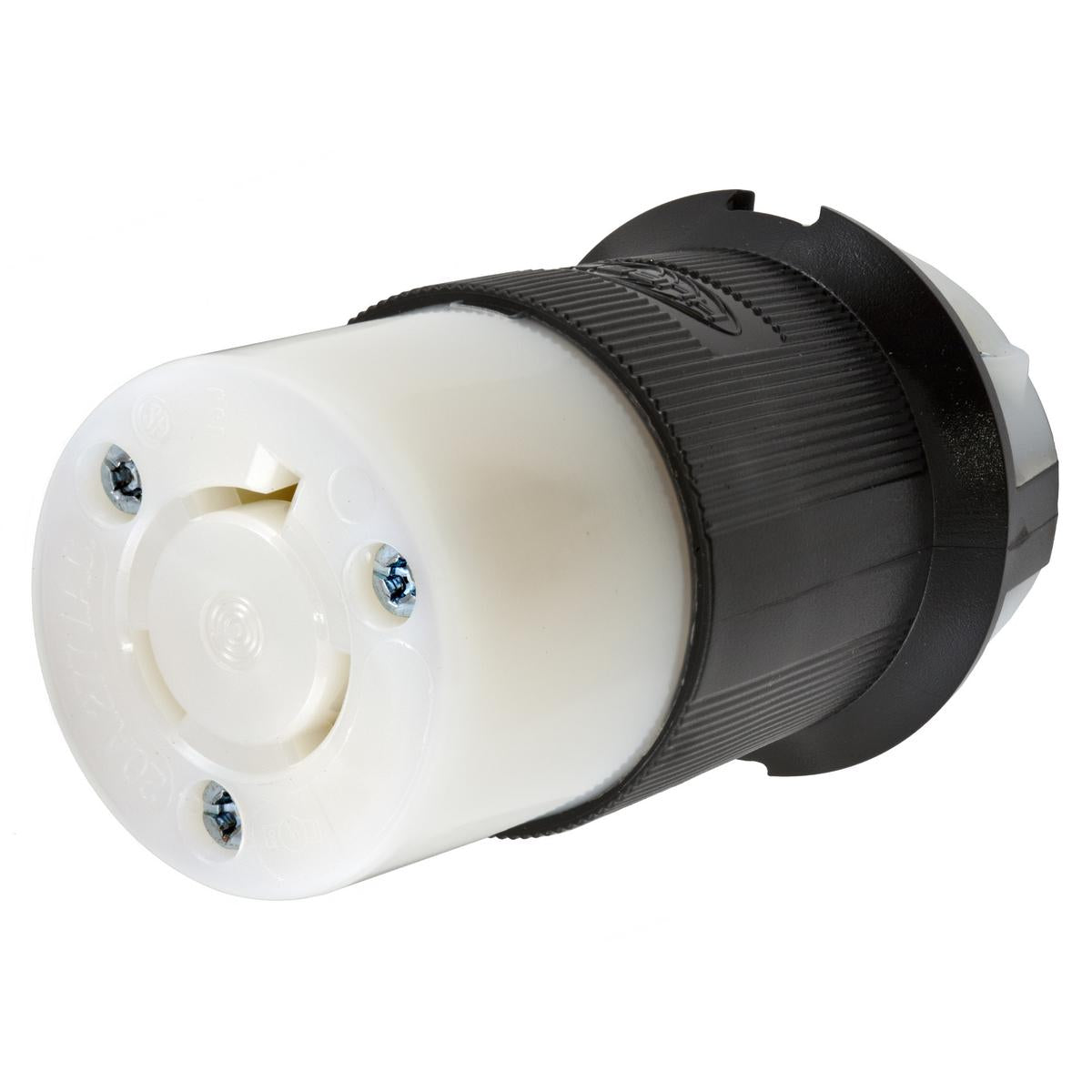

Wiring Device-Kellems HBL2333 Grounding Heavy Duty Shrouded Watertight Cord Mount

Product Description

The Wiring Device-Kellems HBL2333 is a locking connector designed for grounding. This heavy-duty, shrouded, watertight cord mount is suitable for various industrial applications. It operates at two hundred seventy-seven volts alternating current and has a capacity of twenty amps, accommodating two poles and three wires.

• Heavy-duty shrouded design for durability
• NEMA 4/4X/12/IP66 rated enclosure for water and dust resistance
• Compatible with cords ranging from zero point thirty-six inches to zero point ninety-three inches in diameter

Product Highlights

This locking connector offers a robust solution for secure electrical connections in demanding environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 783585037929

Technical Specifications

• Voltage Rating: 277 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 2 hp
• Temperature Rating: -40 to 75 deg C
• Cord Diameter: 0.36 to 0.93 in
• Dimensions: 2.26 x 2.26 x 3.86 in
• Material: Nylon
• Enclosure: NEMA 4/4X/12/IP66
• NEMA Rating: L7-20R
• Terminal Type: Pressure Screw
