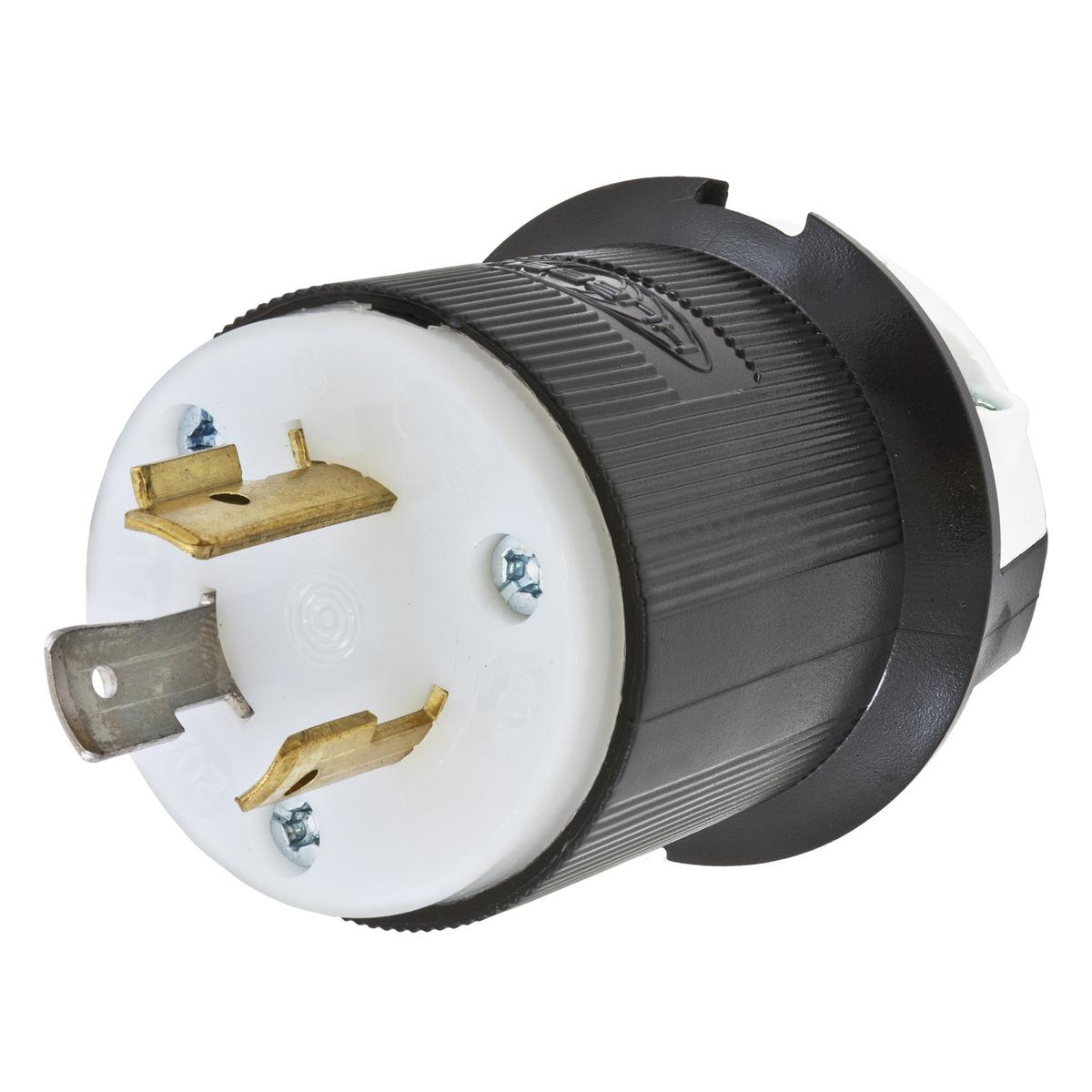

Wiring Device-Kellems HBL2331 1-Phase Grounding Cord Mount Locking Plug

Product Description

The Wiring Device-Kellems Twist-Lock HBL2331 is a locking plug designed for 1-phase grounding cord mount use. It operates at a voltage of two hundred seventy-seven VAC and supports a maximum of twenty amps. This device has two poles and three wires, making it suitable for various industrial applications. The L7-20P NEMA rating ensures reliability in demanding environments.

• Constructed with nylon for strength and durability
• Features IP20 enclosure for indoor use
• Temperature range suitable from -40 degrees Celsius to 75 degrees Celsius

Product Highlights

This locking plug is ideal for connecting equipment in industrial settings, ensuring a secure and efficient electrical connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Cord Diameter: 0.36 to 0.93 inches
• Dimensions: 2.26 x 2.26 x 2.75 inches
• Grade: Industrial
• Horsepower: 2 hp
• Material: Nylon
• NEMA Rating: L7-20P
• Voltage Rating: 277 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
