Wiring Device-Kellems HBL2330 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount L720R

Product Description

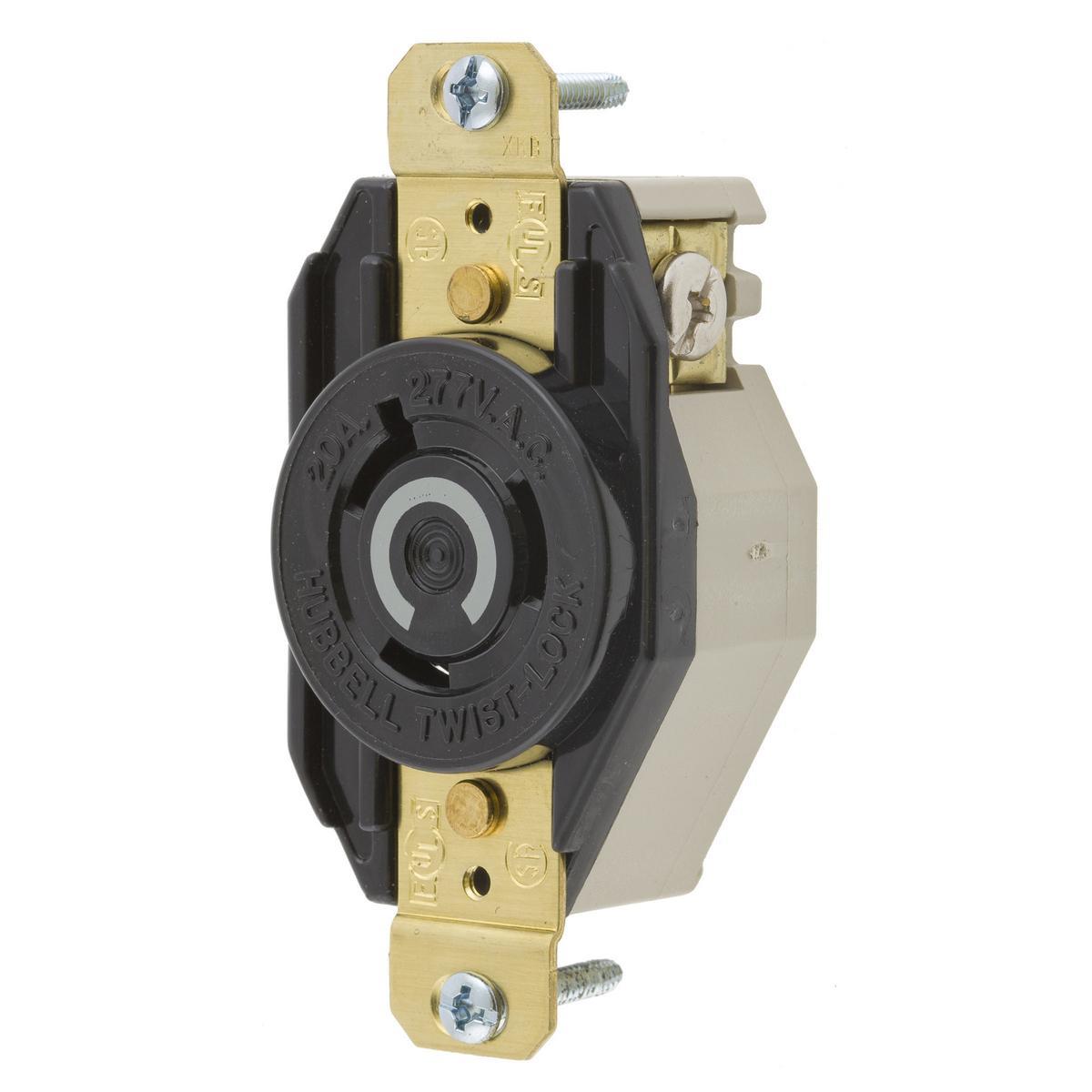

The Wiring Device-Kellems HBL2330 is a reliable locking receptacle designed for heavy-duty applications. This device is rated for 277 VAC and can support up to 20 A. The flush mount design is suitable for various industrial settings, ensuring a secure connection.

• Durable nylon construction for long-lasting use.
• NEMA 4/4X/12/IP20 rated for outdoor and indoor applications.
• Temperature range from -40 to 75 degrees Celsius.

Product Highlights

This receptacle is ideal for environments where a robust and secure power connection is essential.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Flush Mount Grounding Heavy Duty Single Screw Mount
• Voltage Rating: 277 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 3.28 x 1.7 x 1.23 inches
• Material: Nylon
• Color: Black
• Horsepower: 2 hp
• Enclosure: NEMA 4/4X/12/IP20
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
