Wiring Device-Kellems HBL2313SW Locking Connector 125 VAC 20 A L5-20R

Product Description

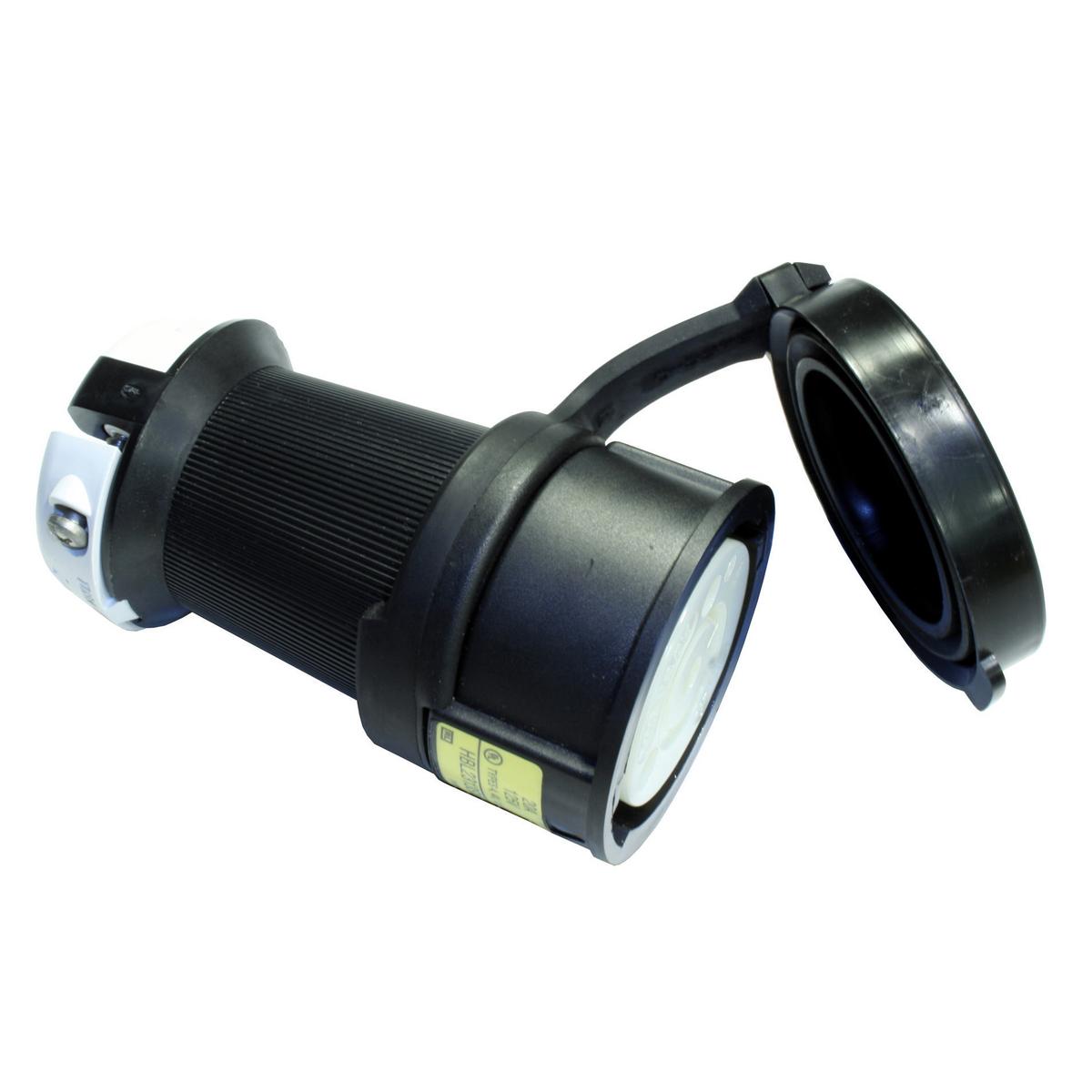

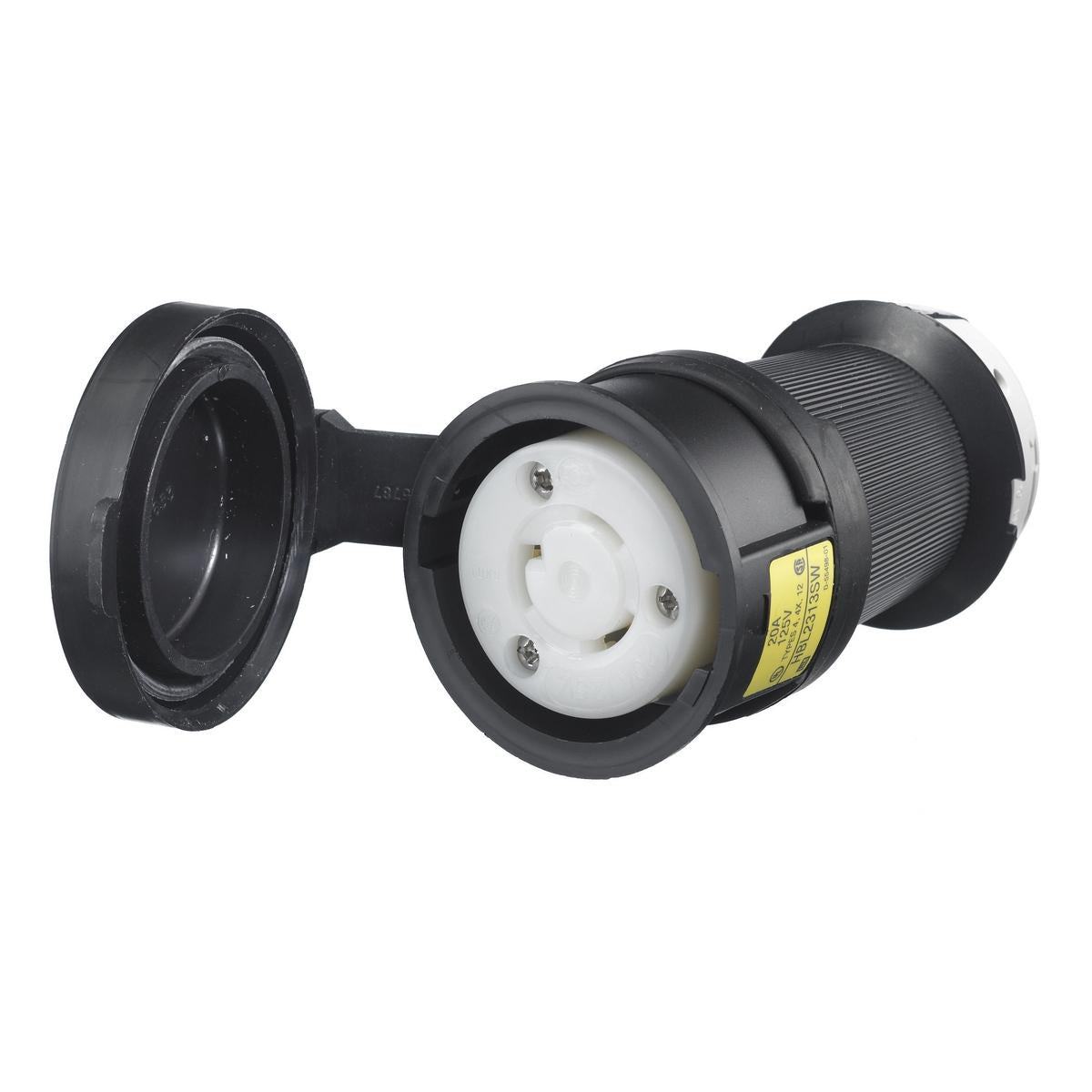

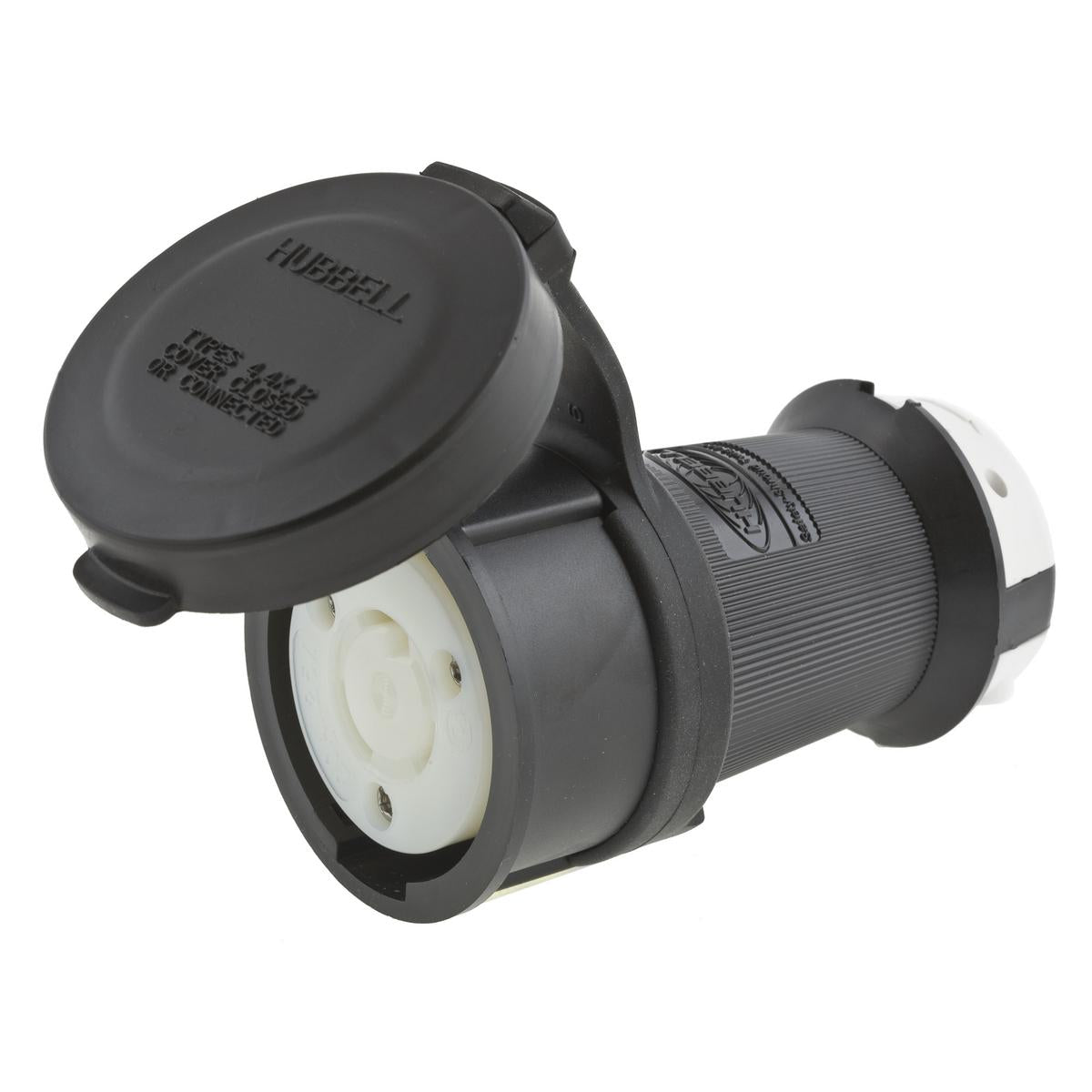

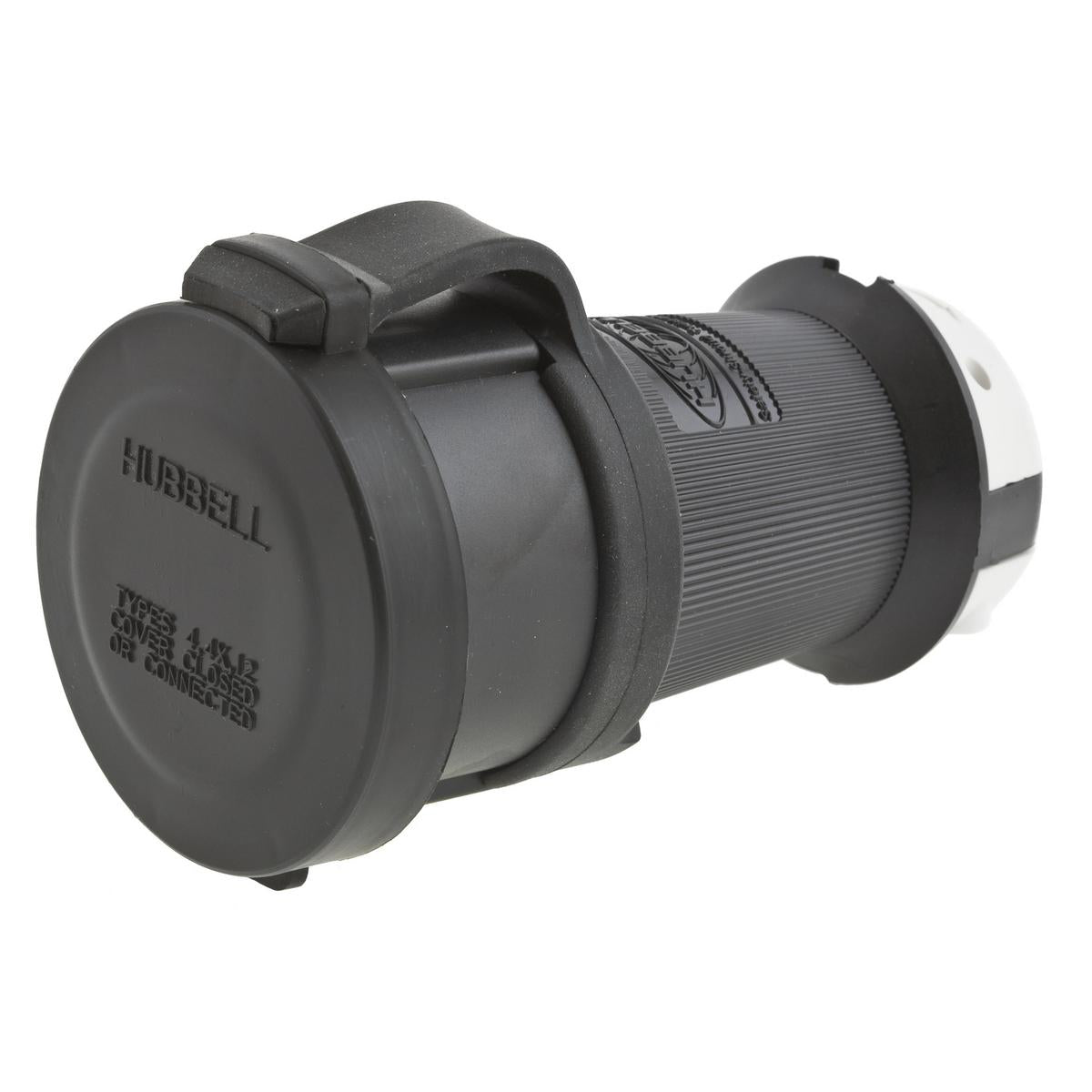

The Wiring Device-Kellems HBL2313SW is a grounding heavy-duty shrouded watertight cord mount locking connector. It operates at 125 VAC and supports up to 20 A. This connector features a two-pole and three-wire design, making it suitable for various industrial applications. The device is designed with a NEMA 4/4X/12/IP66 enclosure, ensuring protection against water and dust.

• UL type 4X environmental seal
• Rated for -40 to 75 degrees Celsius
• Made from durable composite materials

Product Highlights

This locking connector is ideal for industrial settings where reliability is crucial. The connector's pressure screw terminal offers secure connections, while the cord grip design prevents strain on terminations.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 2.57 x 2.57 x 4.4 in
• Cord Diameter: 0.36 to 0.93 in
• Material: Composite
• Enclosure: NEMA 4/4X/12/IP66
• Temperature Rating: -40 to 75 degrees Celsius
• NEMA Rating: L5-20R
