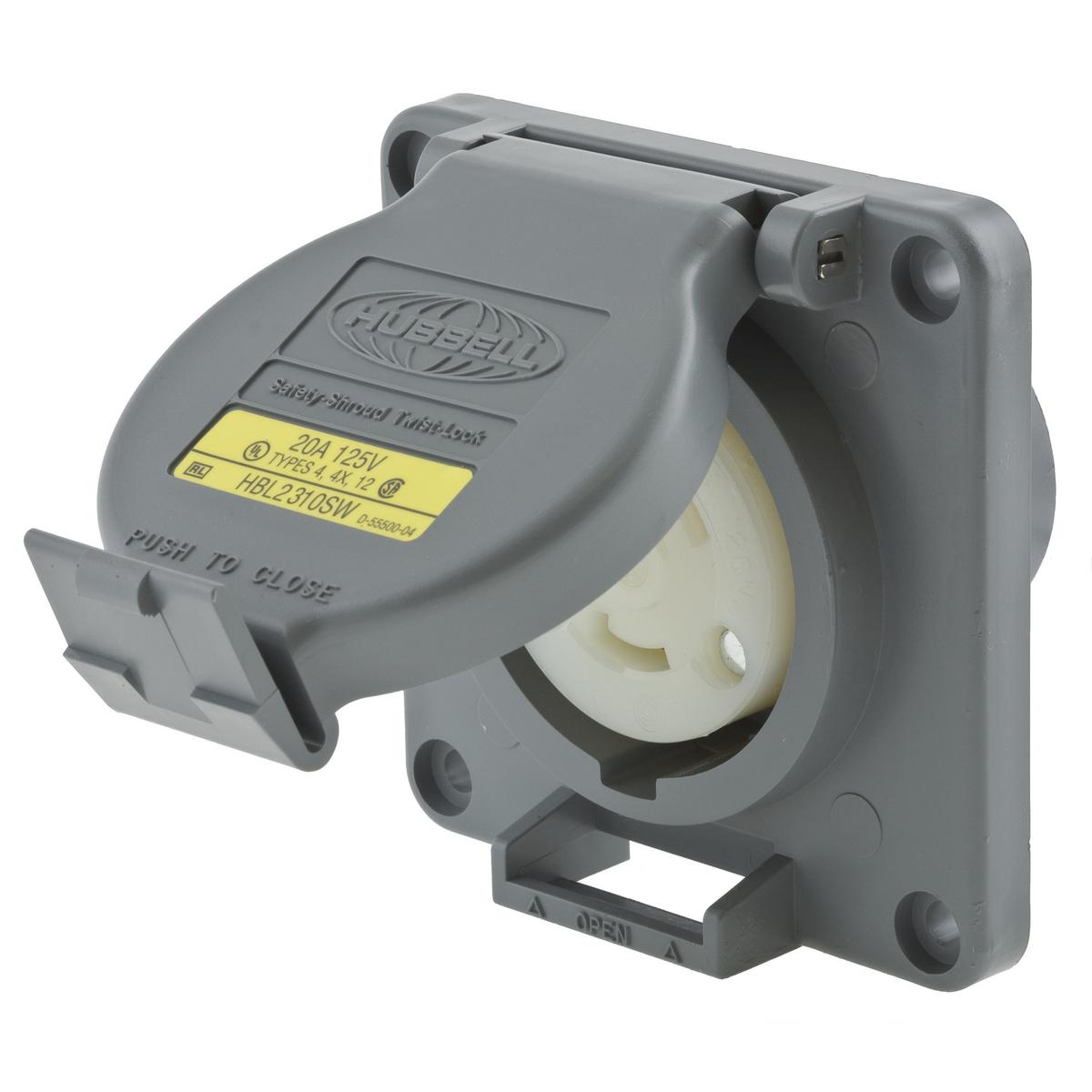

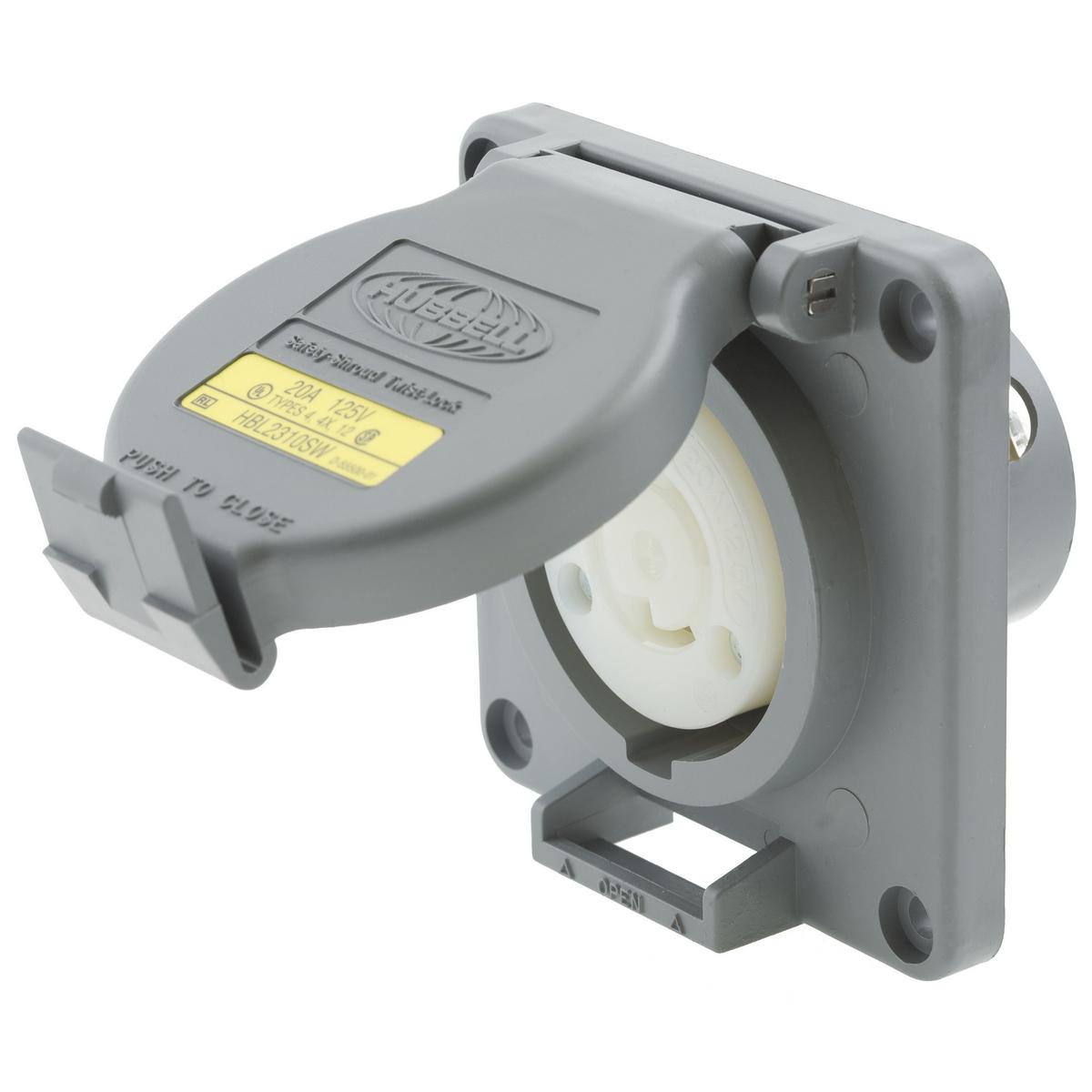

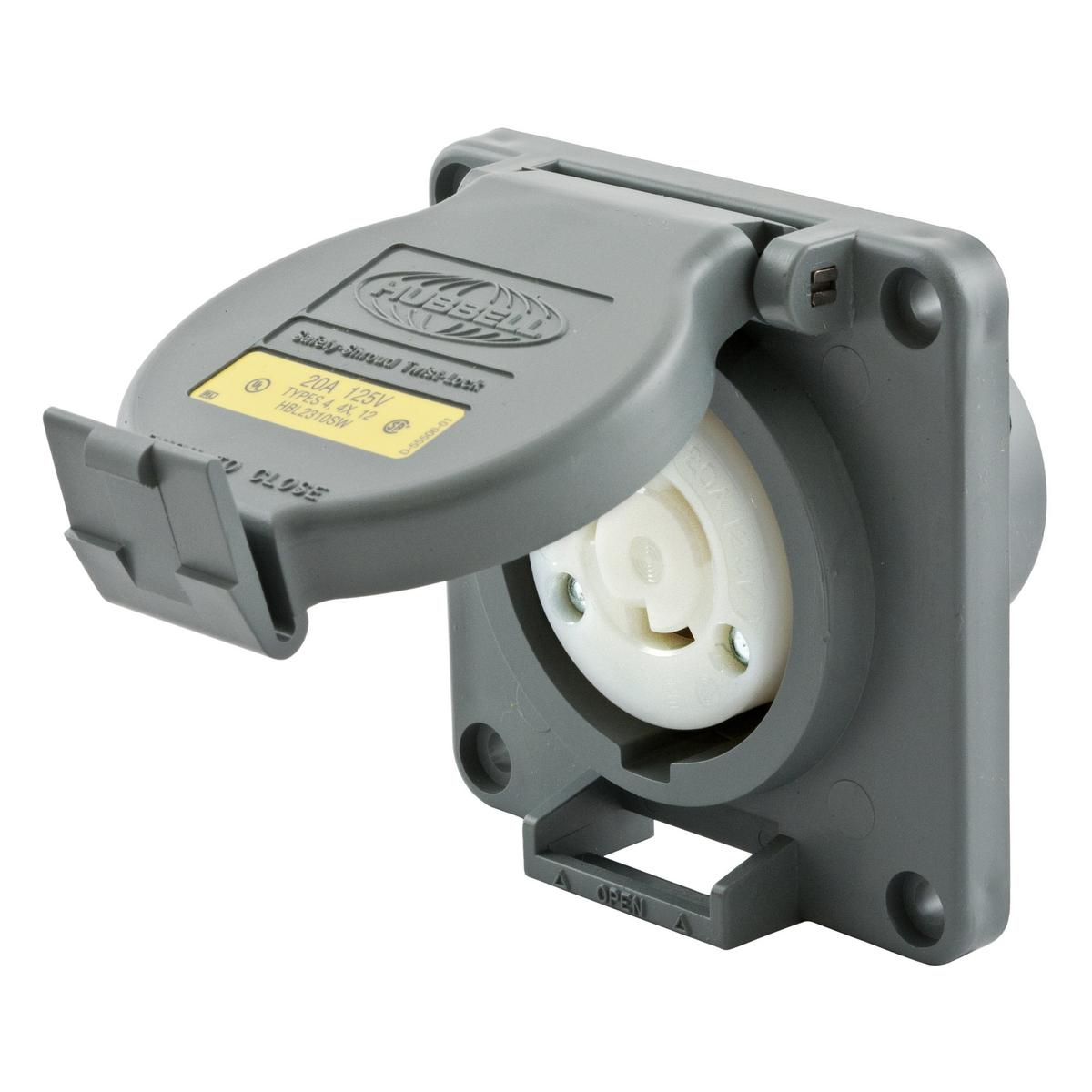

Wiring Device-Kellems HBL2310SW 1-Phase Grounding Heavy Duty Shrouded Single Standard Watertight Screw Mount

Product Description

The Wiring Device-Kellems Twist-Lock HBL2310SW is designed for heavy-duty applications. This locking receptacle features a watertight screw mount, ideal for outdoor use where moisture is a concern. It operates at 125 VAC and has a current rating of 20 A. structured with two poles and three wires, this receptacle ensures reliable connections in industrial settings.

• Durable thermoplastic material for long-lasting use
• Weatherproof NEMA rating for harsh environments
• Temperature range from -40 to 75 degrees Celsius

Product Highlights

This receptacle is well-suited for environments that demand robust performance and resilience against moisture and environmental factors.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.75 x 3.75 x 2.69 inches
• Enclosure: NEMA 4/4X/12/IP66
• Grade: Industrial
• Horsepower: 1 hp
• Material: Thermoplastic
• NEMA Rating: L5-20R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray/White
