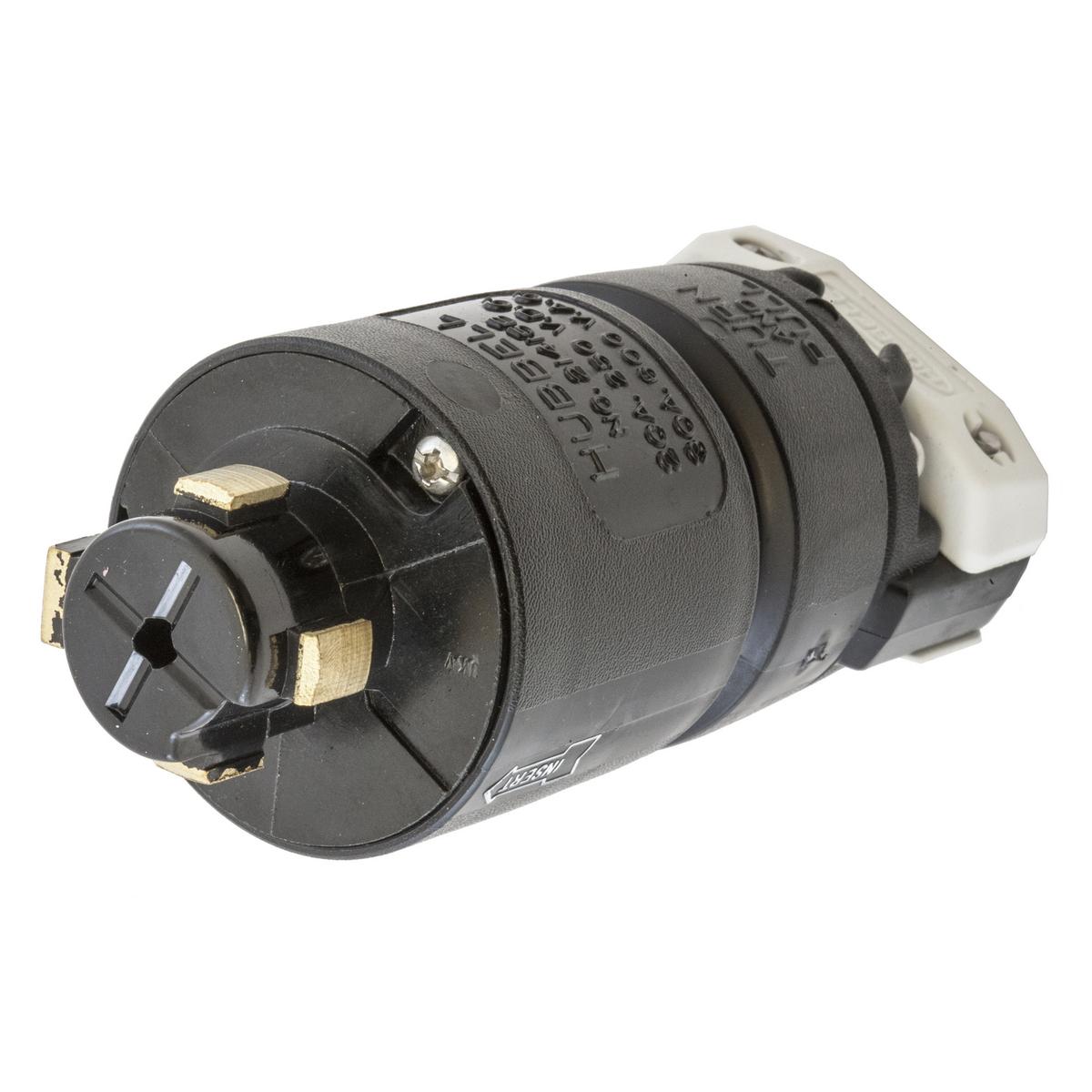

Wiring Device-Kellems HBL21415B Heavy Duty Grounding Cord Mount Locking Plug 600 VAC/250 VDC

Product Description

The Wiring Device-Kellems HBL21415B is a three-phase heavy duty grounding cord mount locking plug with a voltage rating of six hundred volts alternating current or two hundred fifty volts direct current. This product accommodates a current of twenty to thirty amperes and features three poles and four wires.

• Type: 3-Phase Heavy Duty Grounding Cord Mount
• Voltage Rating: 600 VAC / 250 VDC
• Amperage Rating: 20/30 A

Product Highlights

This locking plug operates in environments ranging from -40 to 75 degrees Celsius and incorporates a pressure screw terminal configuration. The design includes an industrial-grade nylon enclosure with an IP30 rating.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Cord Diameter: 0.63 to 1.2 in
• Dimensions: 2.33 x 0.94 x 5.63 in
• Enclosure: IP30
• Grade: Industrial
• Material: Nylon
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Number of Poles: 3
• Number of Wires: 4
• Color: Black/White
