Wiring Device-Kellems HBL15W33 Power Straight Blade Connector 125 VAC

Product Description

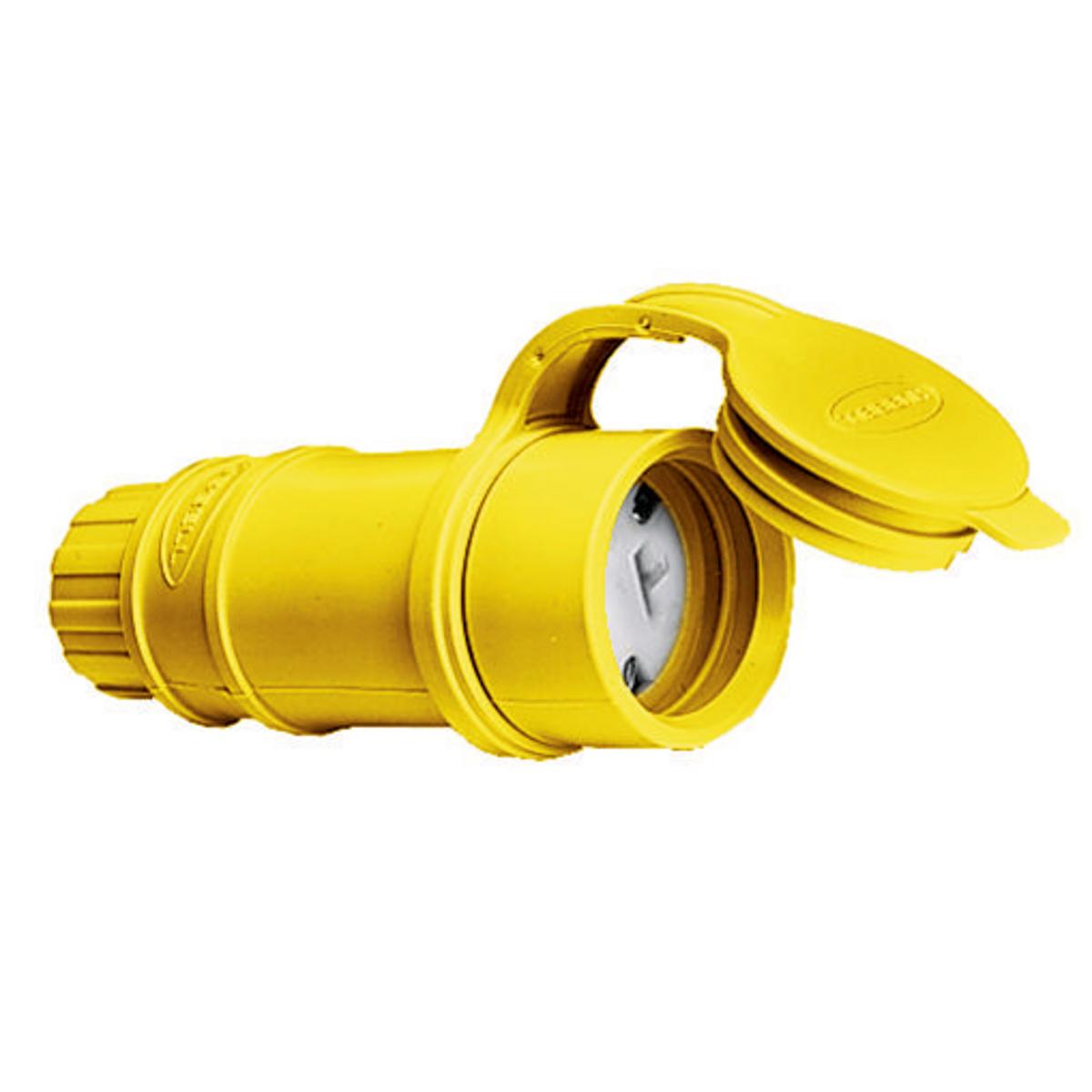

Wiring Device-Kellems HBL15W33 is a female grounding insulated watertight cord mount straight blade connector. This device operates at 125 VAC and supports a maximum of 20 A. It is designed with two poles and three wires, suitable for various applications.

• Holds a NEMA 5-20R rating
• Operates safely in temperature ranges from -40 to 75 degrees Celsius
• Features an IP20 enclosure for protection

Product Highlights

This connector is ideal for commercial and industrial use. The design ensures watertight connections, making it suitable for challenging environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.3 to 0.655 inches
• Dimensions: 3 x 1.61 x 3 inches
• Material: Composite
• Color: Yellow
• Grade: Commercial/Industrial
• NEMA Rating: 5-20R
• Terminal Type: Screw
• Enclosure: IP20
• Temperature Rating: -40 to 75 degrees Celsius
