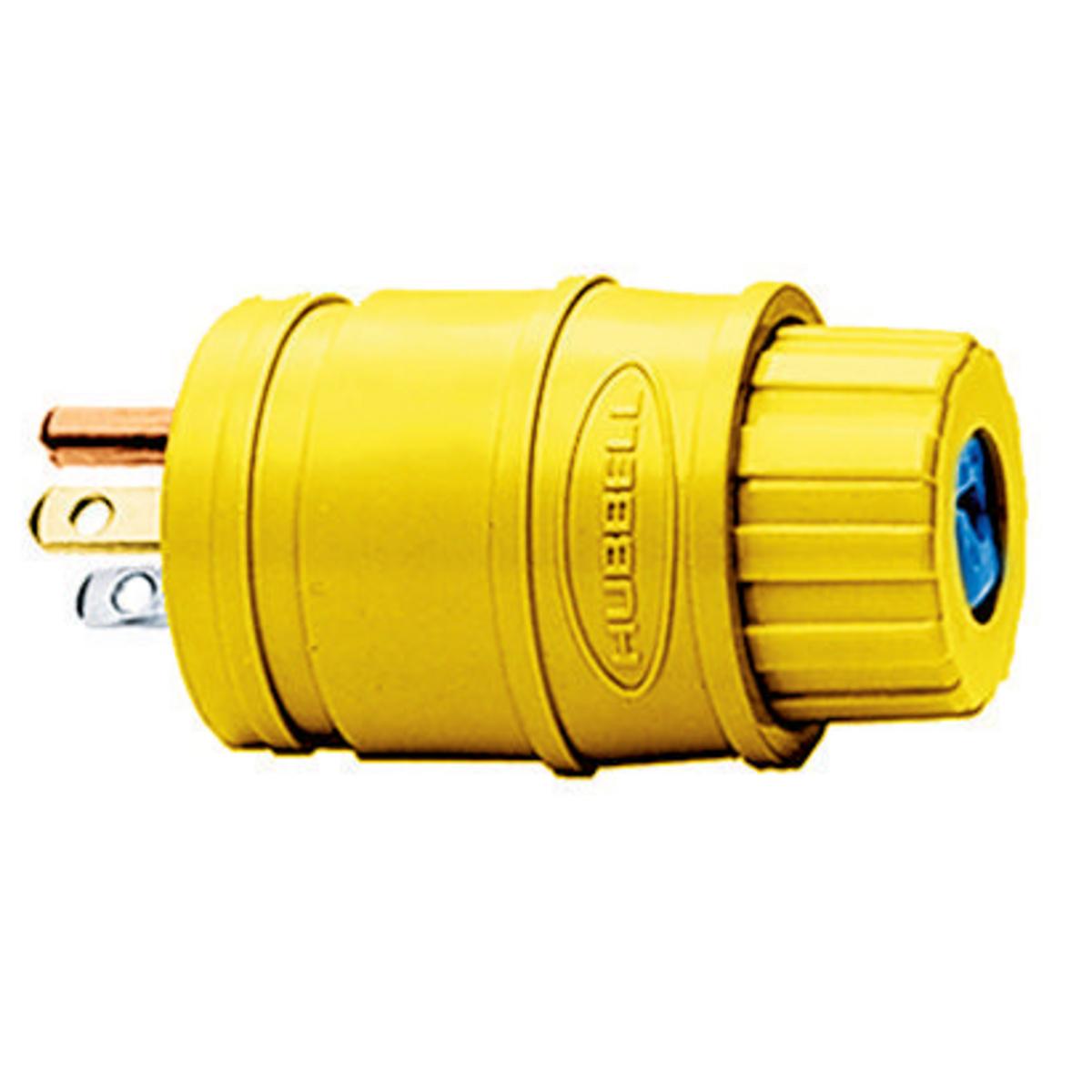

Wiring Device-Kellems HBL14W47 1-Phase Grounding Watertight Standard Cord Mount Weather Resistant

Product Description

The Wiring Device-Kellems Elastogrip HBL14W47 is a 1-phase grounding watertight standard cord mount weather resistant straight blade plug rated for 125 VAC and 15 A. This product features a robust design suitable for commercial and industrial applications. The plug is compatible with cords ranging from 0.3 to 0.655 inches in diameter, ensuring secure connections even in tough environments.

• Rating: 125 VAC, 15 A, suitable for heavy-duty use.
• Material: Constructed from durable polycarbonate for longevity.
• NEMA Rating: 5-15P, ideal for various electrical devices.

Product Highlights

This device is designed to withstand harsh conditions, featuring an IP55 enclosure that protects against dust and water ingress. With a temperature rating of -40 to 75 degrees Celsius, it functions effectively across a wide temperature range. The screw terminal design accommodates 18 to 12 AWG solid or stranded copper conductors.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Part Number: HBL14W47 HW

Technical Specifications

• Cord Diameter: 0.3 to 0.655 in
• Dimensions: 2.65 x 1.55 x 2.65 in
• Enclosure: IP55
• Grade: Commercial/Industrial
• Horsepower: 1/2 hp
• Material: Polycarbonate
• NEMA Rating: 5-15P
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Yellow
