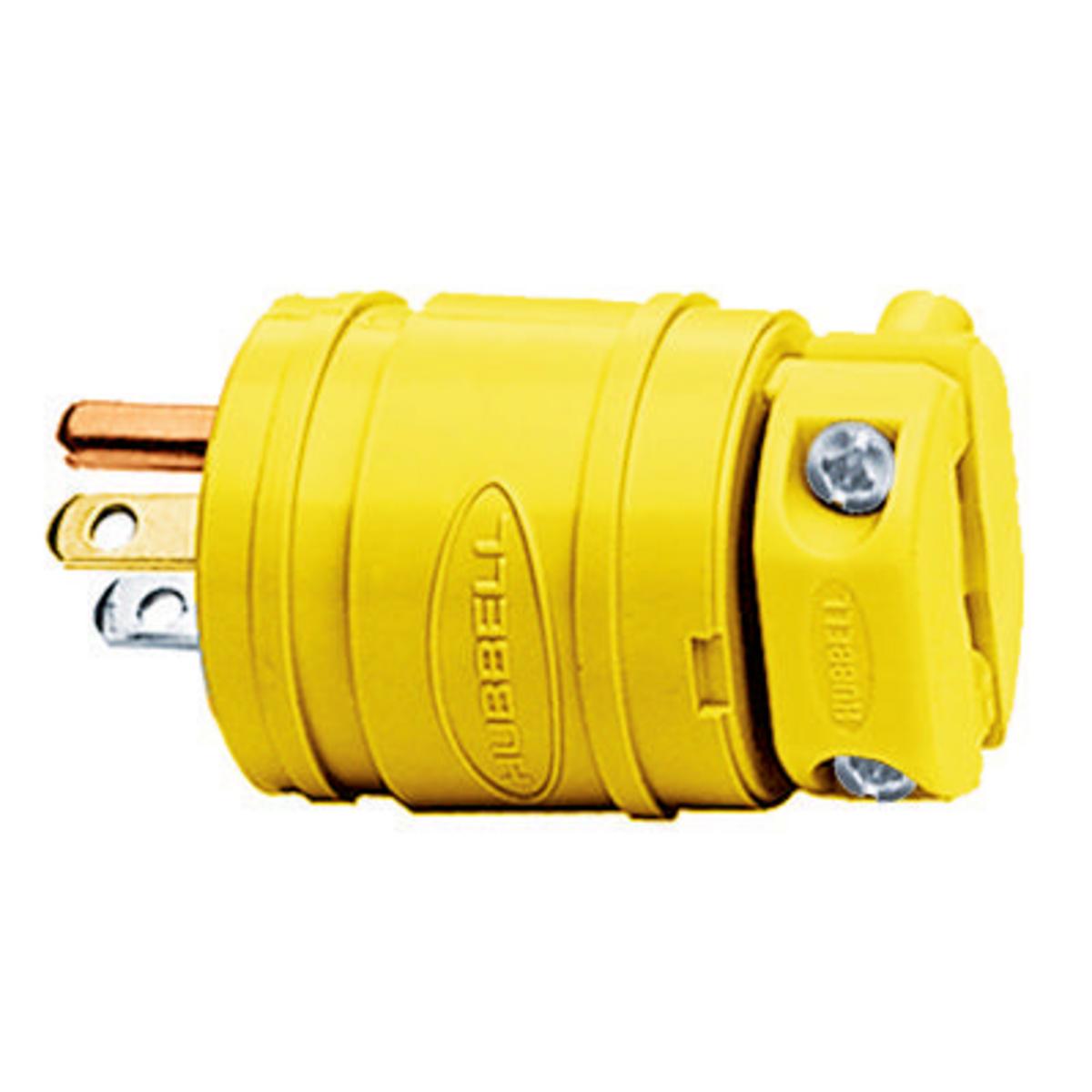

Wiring Device-Kellems HBL1447 Straight Blade Plug 1-Phase Cord Mounted Grounding Watertight

Product Description

The Wiring Device-Kellems HBL1447 is a 1-Phase cord mounted grounding watertight straight blade plug designed for reliable performance in various settings. It operates at 125 VAC and has a maximum amperage rating of 15 A. This plug features a durable construction suited for commercial and industrial applications.

• Grounding watertight design
• Compatible with cords ranging from 0.3 to 0.655 inches in diameter
• Made with polycarbonate material for enhanced durability

Product Highlights

This plug includes a thermoplastic elastomer housing with a dust and moisture seal to improve longevity and maintain functionality in harsh conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 1/2 hp
• NEMA Rating: 5-15P
• Temperature Rating: -40 to 75 deg C
• Enclosure: IP20
• Material: Polycarbonate
• Cord Diameter: 0.3 to 0.655 in
• Dimensions: 2.19 x 1.55 x 2.19 in
• Terminal Type: Screw
• Grade: Commercial/Industrial
