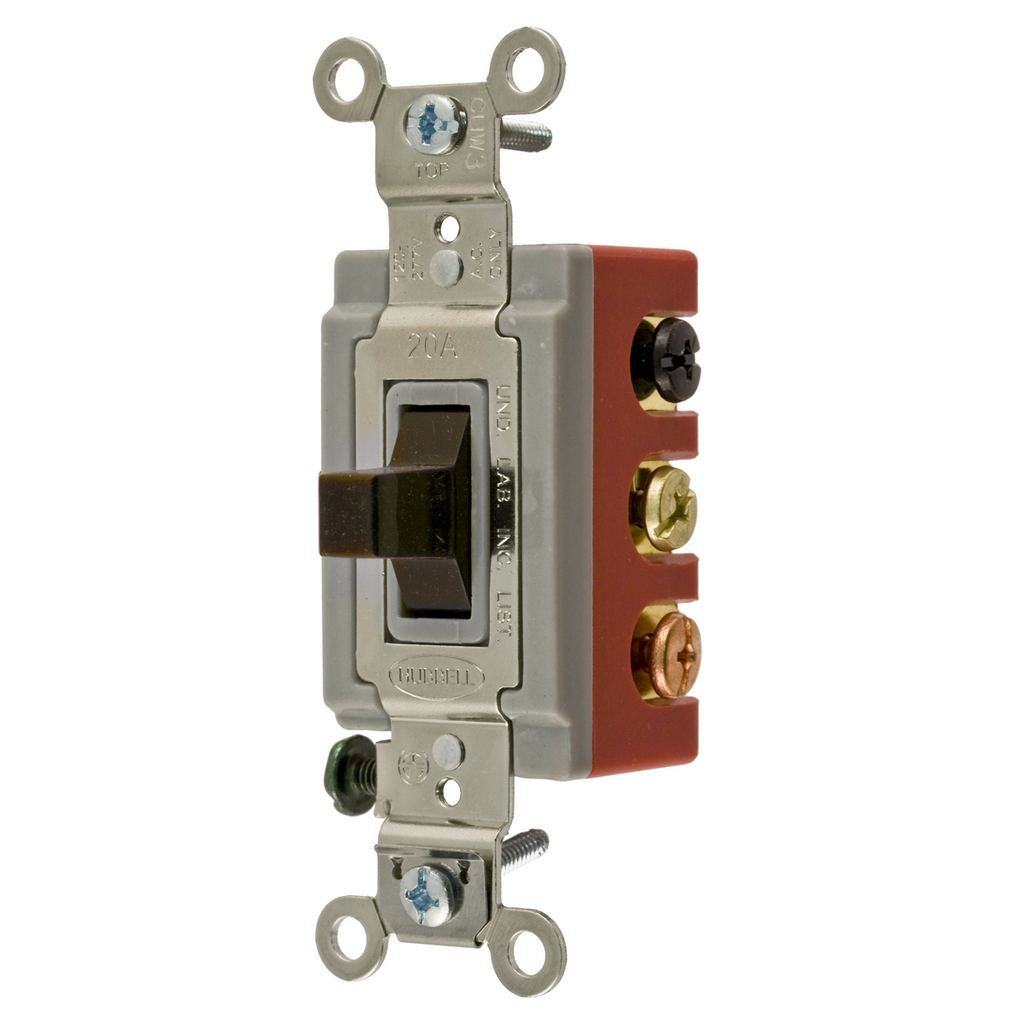

Wiring Device-Kellems HBL1386 Toggle Switch Extra Heavy Duty 20A 120/277V

Product Description

The Wiring Device-Kellems HBL1386 is a toggle switch designed for general-purpose use in industrial settings. This switch operates at voltage ratings from one hundred twenty to two hundred seventy-seven volts and supports a maximum current of twenty amperes. It features a three-position center-off contact configuration, allowing for easy toggling between states.

• Heavy-duty design for lasting performance
• Suitable for industrial applications and dry environments
• Back and side wired for flexible installation

Product Highlights

The HBL1386 switch is ideal for applications requiring reliable switching solutions in demanding environments. Its sturdy construction allows for a high life expectancy of fifty thousand operating cycles.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: HBL1386

Technical Specifications

• Power Rating: 5540 W
• Amperage Rating: 20 A
• Voltage Rating: 120 to 277 VAC
• Contact Configuration: 3-Position Center Off

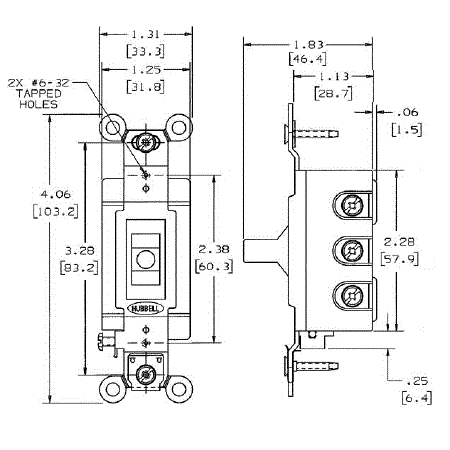

• Dimensions: 4.06 x 1.31 x 1.89 inches
• Environmental Conditions: -40 to 75 degrees C
• Material: Thermoset
• Number of Poles: 2
