Wiring Device-Kellems HBL1223 HWD 3-Way Extra Heavy Duty General Purpose Standard Toggle Switch

Product Description

The Wiring Device-Kellems HBL1223 is a three-way extra heavy-duty toggle switch. It operates at voltage ratings between one hundred twenty and two hundred seventy-seven VAC with a current rating of twenty A. This switch is suitable for various industrial applications and can handle up to five thousand five hundred forty watts.

• Designed for heavy-duty industrial use.
• Two-position contact configuration for versatile functionality.
• Durable thermoset material suitable for harsh conditions.

Product Highlights

This toggle switch features a robust design ideal for continuous use in industrial settings while ensuring reliability and safety.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: HBL1223

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Operating Cycles: 50000 cycles
• Environmental Conditions: -40 to 75 deg C

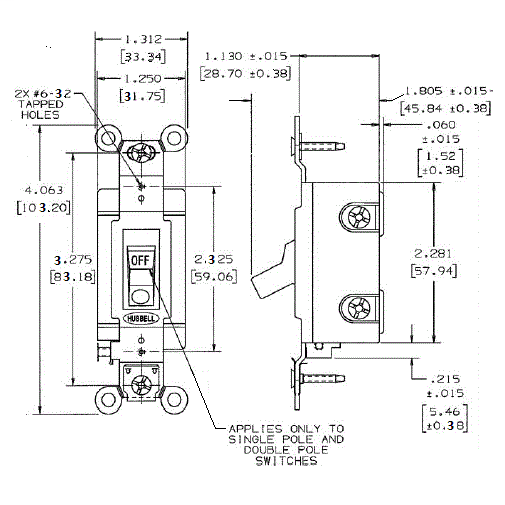

• Dimensions: 4.06 x 1.31 x 1.87 inches
• Material: Thermoset
• Actuator Type: Toggle
• Contact Configuration: 2-Position
