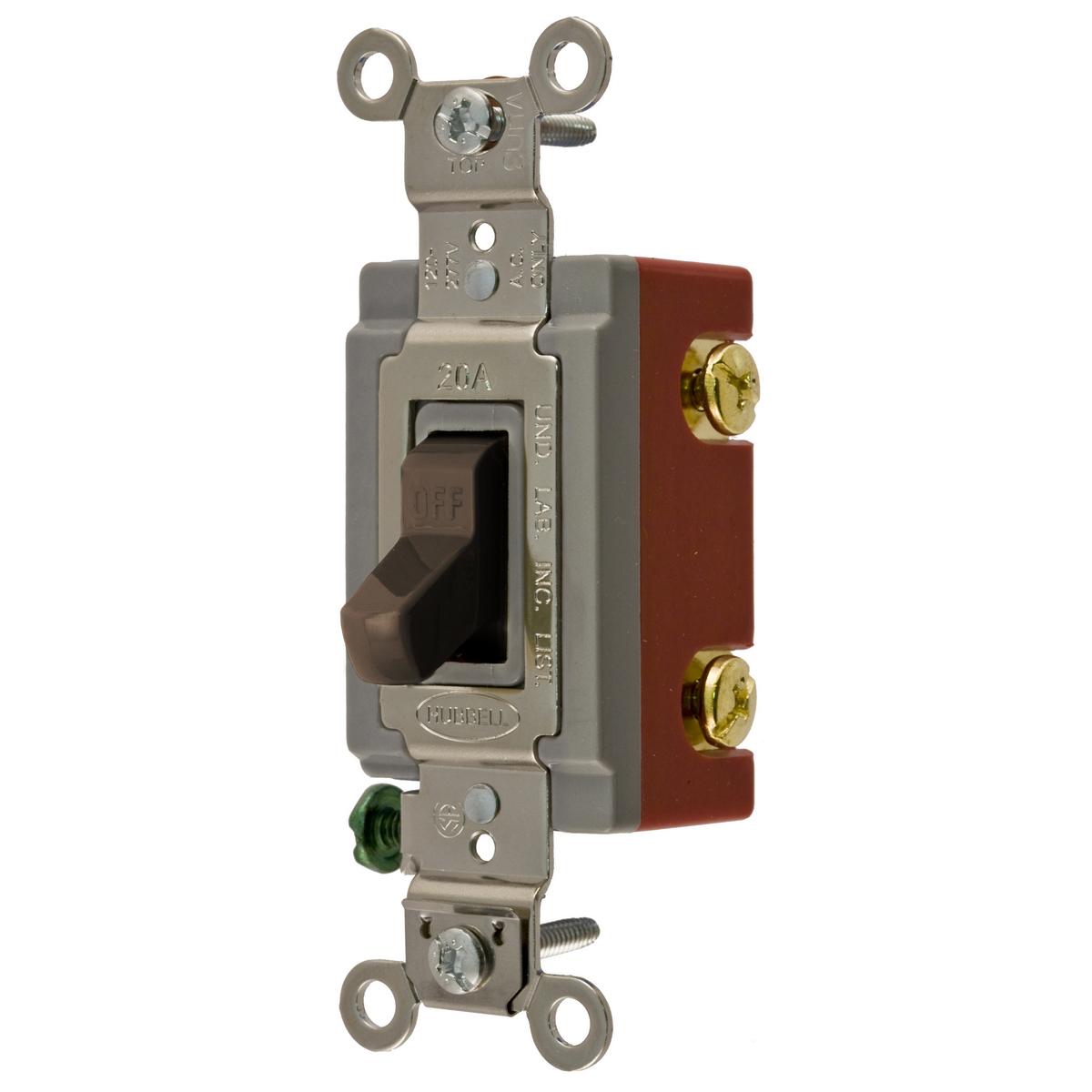

Wiring Device-Kellems HBL1221 Toggle Switch 2-Position Extra Heavy Duty General Purpose Industrial Grade Standard

Product Description

The Wiring Device-Kellems HBL1221 is a toggle switch designed for heavy-duty applications. This switch operates on a voltage range of one hundred twenty to two hundred seventy-seven volts AC and has a power rating of five thousand five hundred forty watts. With a durable design featuring a nylon toggle and thermoset body, it is suitable for various industrial environments.

• 120 to 277 VAC voltage rating
• 20 A amperage rating
• 50000 operating cycles

Product Highlights

This toggle switch is made for general-purpose industrial use and provides reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 2-Position Extra Heavy Duty General Purpose Industrial Grade Standard
• Dimensions: 4.06 inches x 1.31 inches x 1.87 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon Toggle/Thermoset Body
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Back/Side Wire
• Series: HBL®
• Power Rating: 5540 W
• Contact Configuration: 2-Position
• Actuator: Toggle
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
