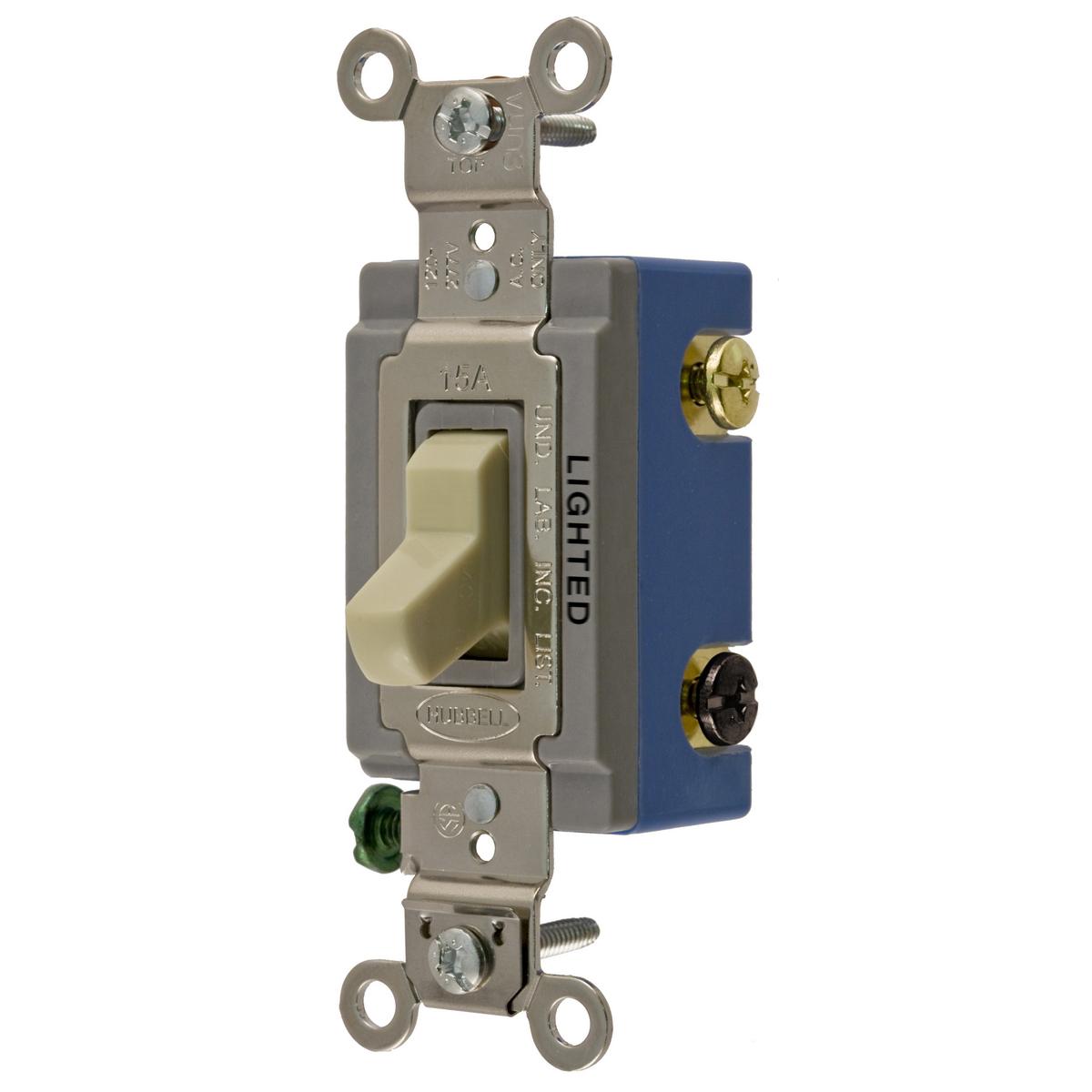

Wiring Device-Kellems HBL1203IL Toggle Switch 3-Way Extra Heavy Duty General Purpose Illuminated Standard

Product Description

Wiring Device-Kellems HBL1203IL is a 3-way toggle switch. It is designed for heavy-duty use in various applications. Rated for 120 to 277 VAC, this switch can handle a maximum of 15 A and 4155 W. It comes with a 2-position contact configuration ensuring reliable operation.

• Toggle actuator for easy operation
• Operating cycles up to 50000
• Environmental resilience from -40 to 75 degrees Celsius

Product Highlights

This toggle switch is suitable for multiple settings, providing durability and long-term reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Color: Ivory
• Dimensions: 4.06 x 1.31 x 1.86 in
• Environmental Conditions: -40 to 75 deg C
• Material: Thermoset
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Back/Side Wire
• Type: 3-Way Extra Heavy Duty General Purpose Illuminated Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2-Position
