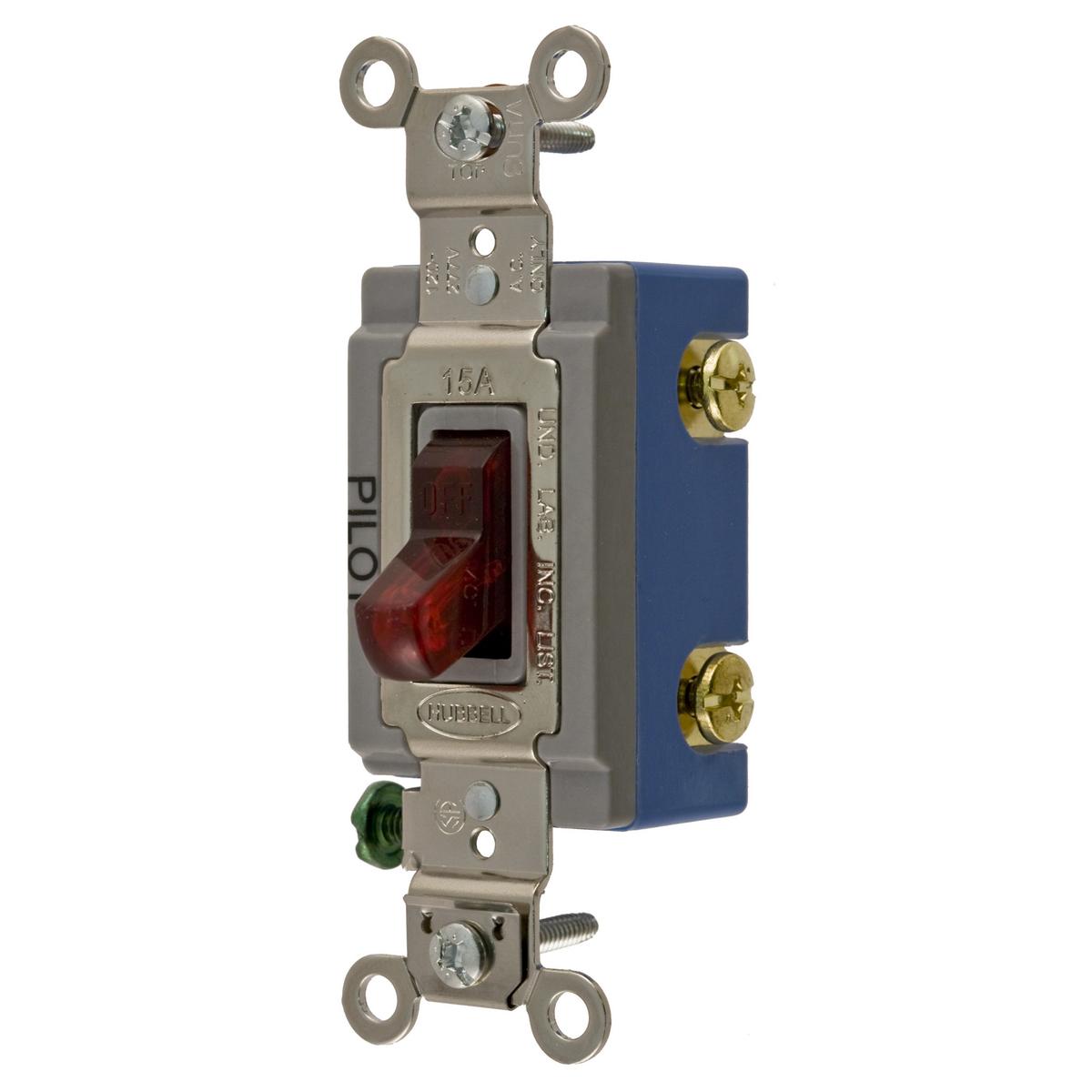

Wiring Device-Kellems HBL1201PL Toggle Switch 120 to 277 VAC 15 A

Product Description

The Wiring Device-Kellems HBL1201PL is a toggle switch designed for general purpose usage. This switch operates on voltages ranging from one hundred twenty to two hundred seventy-seven VAC. It has a power rating of fifteen amperes and five thousand five hundred forty watts. The switch features a two-position contact configuration which ensures reliable operation in various applications.

• Rated for voltages between one hundred twenty to two hundred seventy-seven VAC
• Can handle up to fifteen amps of current
• Designed for extra-heavy-duty use with fifty thousand operating cycles

Product Highlights

This toggle switch is suitable for use in demanding environments. It is built with durable thermoset material and is rated to operate in temperatures from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Color: Red
• Dimensions: Four point zero six x one point three one x one point eight six inches
• Environmental Conditions: Minus forty to seventy-five degrees Celsius
• Material: Thermoset
• Mounting: Threaded
• Number of Poles: One
• Operating Cycles: Fifty thousand cycles
• Terminal Type: Back/Side Wire
• Type: Extra Heavy Duty General Purpose Pilot Light Standard
• Voltage Rating: One hundred twenty to two hundred seventy-seven VAC
• Amperage Rating: Fifteen amps
• Power Rating: Five thousand five hundred forty watts
• Contact Configuration: Two-Position
