Wiring Device-Kellems HBL1201 Toggle Switch Extra Heavy Duty General Purpose Standard HBL1201 HW

Product Description

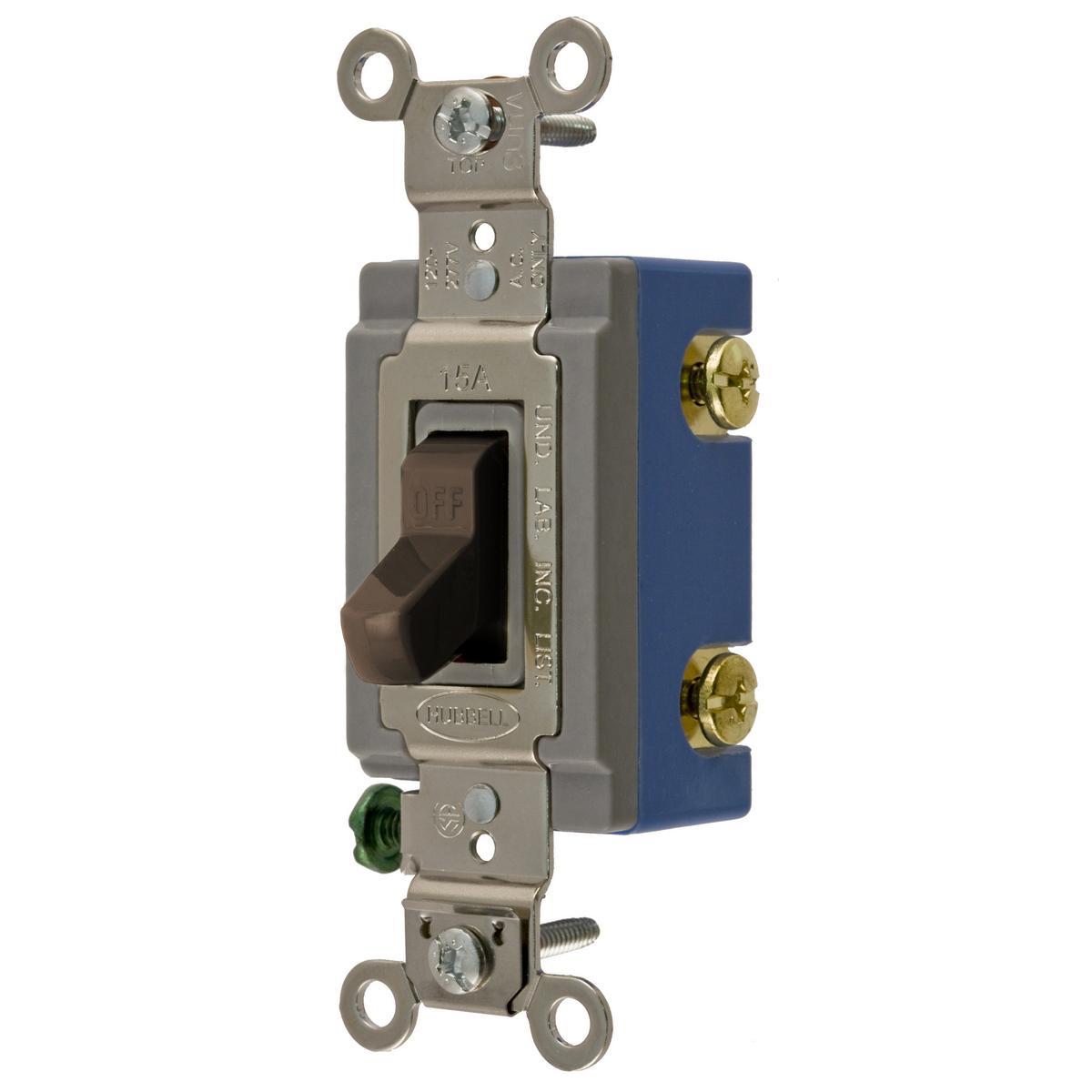

The Wiring Device-Kellems HBL1201 is a toggle switch designed for heavy duty applications. It operates on voltages from one hundred twenty to two hundred seventy-seven VAC and carries a fifteen amp load with a power rating of four thousand one hundred fifty-five watts. The switch features a two-position contact configuration, making it reliable for various electrical installations.

• Operating voltage: 120 to 277 VAC
• Amperage rating: 15 A
• Durable thermoset material

Product Highlights

This product is ideal for trade professionals looking for a dependable toggle switch. The threaded mounting and back/side wire terminal provide ease of installation and secure connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: HBL1201 HW

Technical Specifications

• Actuator: Toggle
• Material: Thermoset
• Color: Brown
• Dimensions: 4.06 x 1.31 x 1.87 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2-Position
