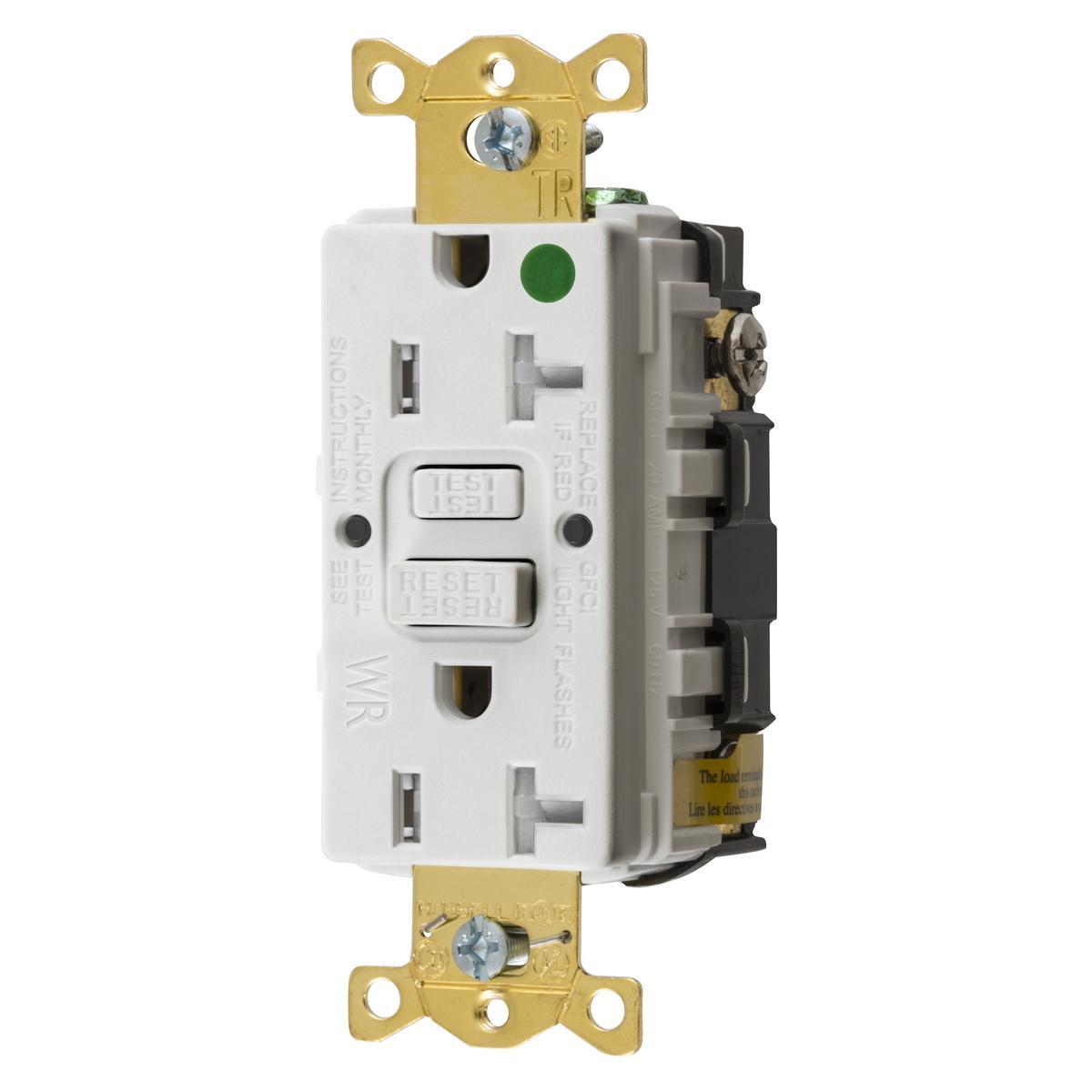

Wiring Device-Kellems GFTWRST83W 1-Phase Decorator Duplex Heavy Duty Standard Straight Blade Self-Test Tamper/Weather-Resistant Screw Mount

Product Description

The Wiring Device-Kellems GFTWRST83W is a GFCI receptacle designed for heavy-duty applications. It features a one-phase decorator duplex configuration with a self-test function. This device provides weather resistance, built with materials to withstand harsh conditions and meet electrical codes.

• Patented shutter design for tamper-resistant protection.
• Protects against miswiring, preventing power to the face or downstream.
• Includes AUTOGUARD® self-test technology that cuts power if critical components are damaged.

Product Highlights

This GFCI receptacle is ideal for commercial and hospital environments, ensuring safety and functionality in wet and demanding spaces.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Type: 1-Phase Decorator Duplex Heavy Duty Standard Straight Blade Self-Test Tamper/Weather-Resistant Screw Mount
• Dimensions: 1.75 in W x 1.47 in D
• Frequency Rating: 60 Hz
• Grade: Commercial/Hospital
• Horsepower: 1 hp
• Material: Composite
• NEMA Rating: 5-20R
• Temperature Rating: -30 to 150 deg F
• Terminal Type: Screw
