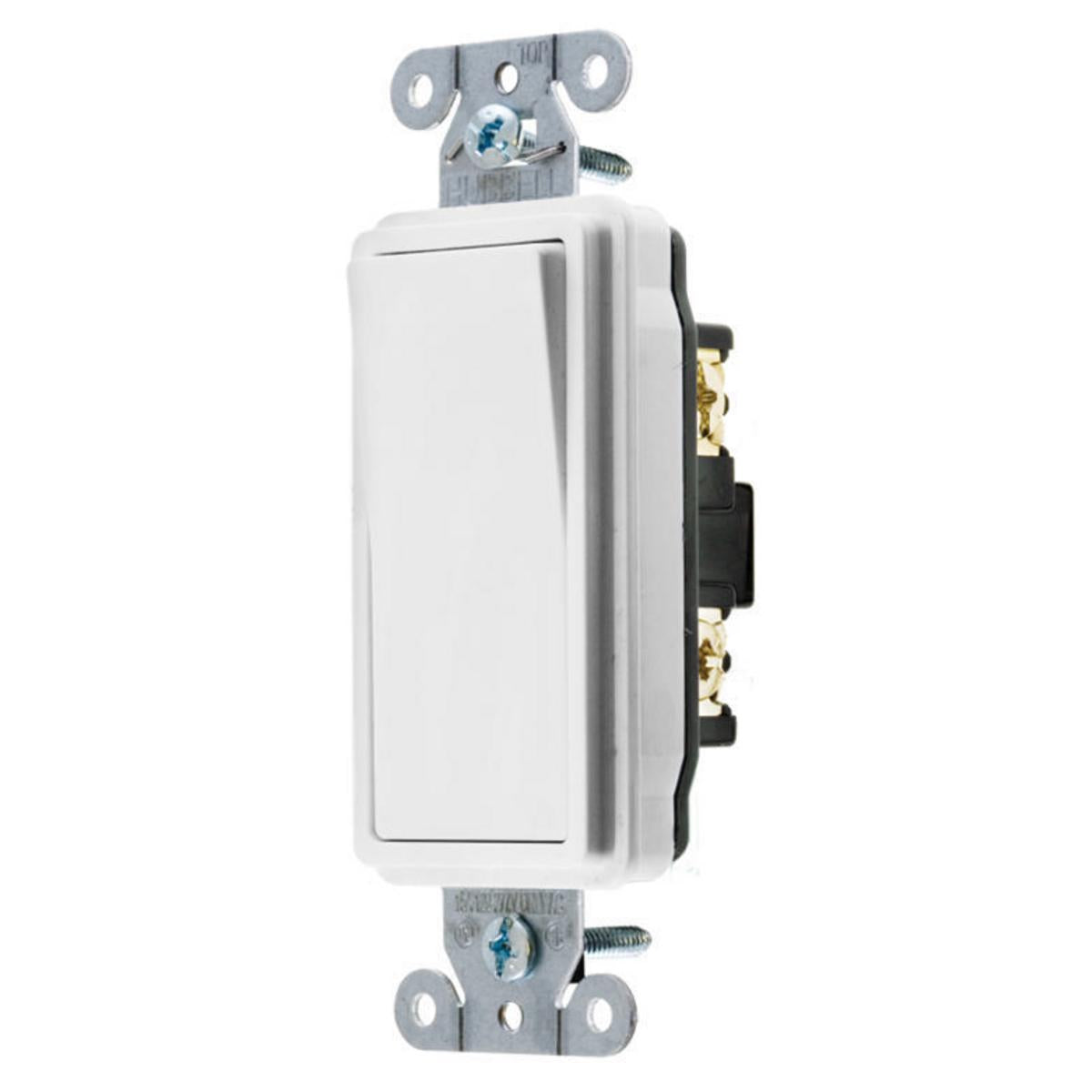

Wiring Device-Kellems DS420W 4-Way 2-Position Heavy Duty Specification Grade Standard

Product Description

The Wiring Device-Kellems DS420W is a 4-way, 2-position heavy duty specification grade switch. It operates on a voltage range of 120 to 277 VAC with a power rating of 5540 W and a current rating of 20 A. This switch is designed for various applications requiring reliable operation in commercial settings.

• Four-way operation with two-position contact configuration
• Rated for up to fifty thousand operating cycles
• Threaded mounting and screw terminal for secure installation

Product Highlights

This switch features a thermoplastic body, making it suitable for harsh environments. It can handle a wide range of temperatures, operating efficiently between negative forty degrees to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 4-Way 2-Position Heavy Duty Specification Grade Standard
• Action: DPDT
• Actuator: Rocker
• Color: White
• Dimensions: 4.28 inches x 1.73 inches x 1.67 inches
• Environmental Conditions: -40 to 75 degrees C
• Material: Thermoplastic
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Terminal Type: Screw
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2 Position
