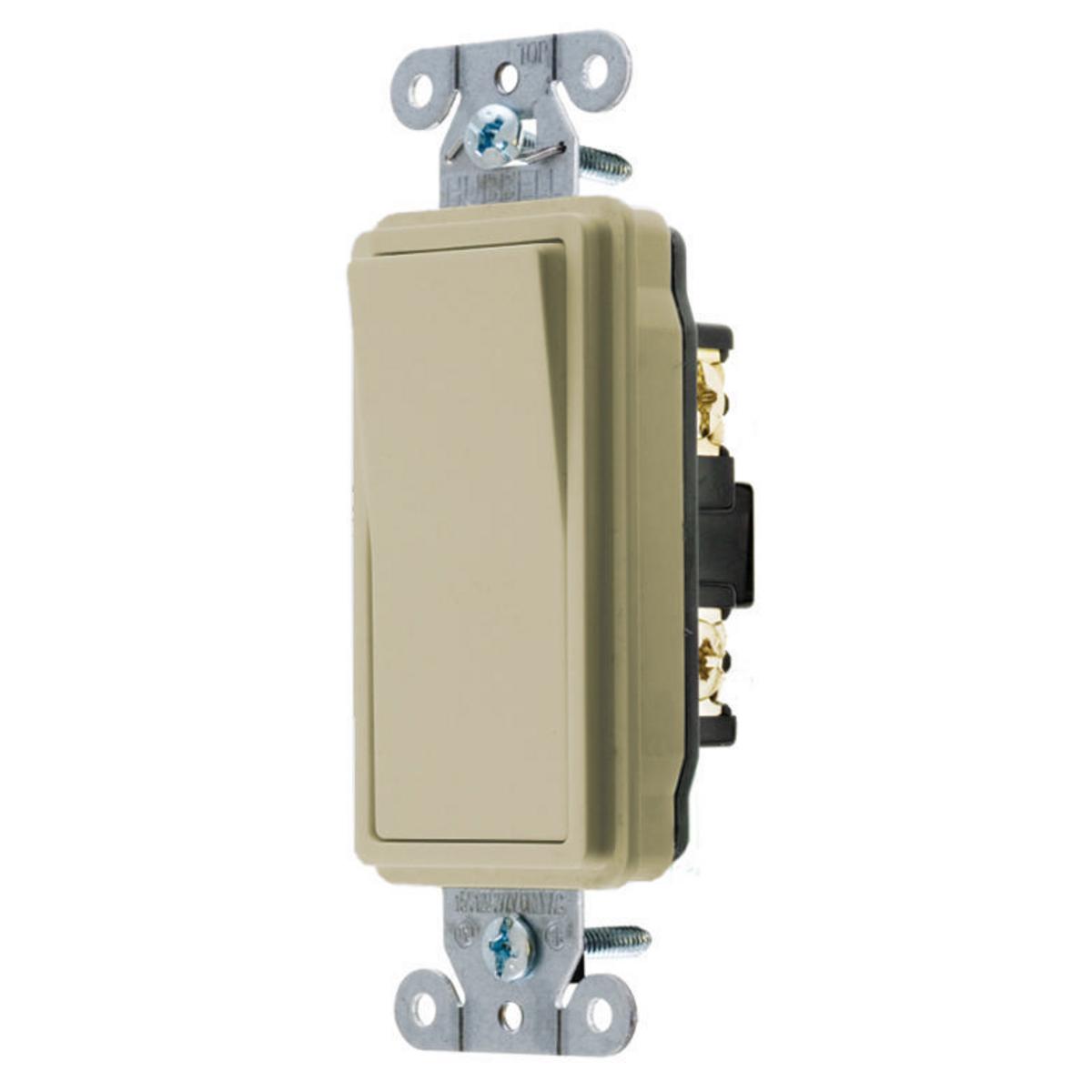

Wiring Device-Kellems DS420I Heavy Duty 4-Way Switch

Product Description

The Wiring Device-Kellems DS420I is a 4-way switch designed for high-demand applications. It operates at a voltage range of 120 to 277 VAC and can handle up to twenty amperes of current. This switch is ideal for controlling lights from multiple locations.

• Heavy duty specification grade construction
• Long life with up to fifty thousand operating cycles
• Suitable for a wide range of electrical systems

Product Highlights

Designed for reliability and safety, this heavy-duty switch meets high standards for commercial and industrial usage.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Material: Thermoplastic
• Color: Ivory
• Action: DPDT
• Actuator: Rocker
• Dimensions: 4.28 x 1.73 x 1.67 inches
• Operating Cycles: 50000 cycles
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2 Position
• Environmental Conditions: -40 to 75 deg C
• Mounting: Threaded
• Terminal Type: Screw
• Number of Poles: 2
