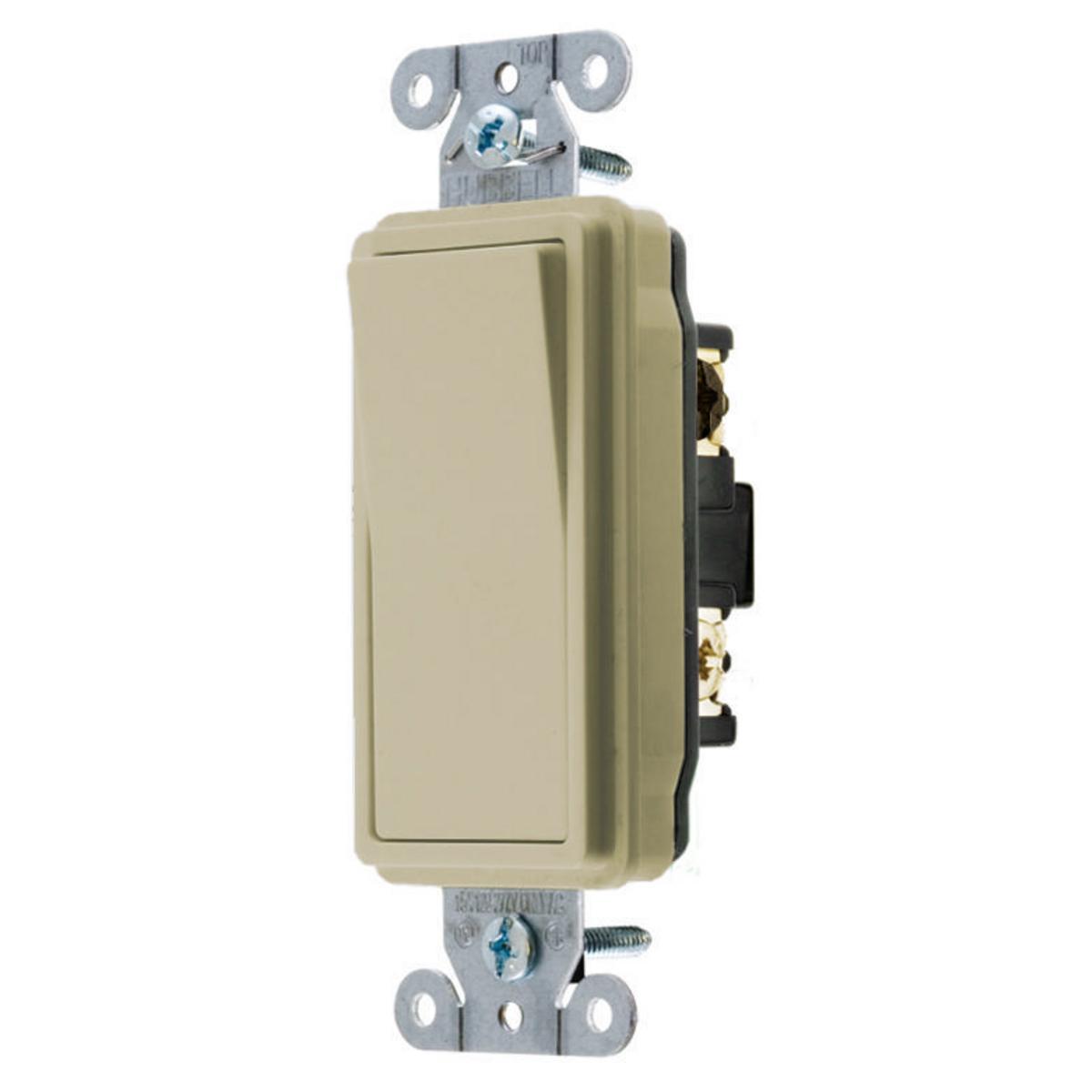

Wiring Device-Kellems DS320I 3-Way 2-Position Heavy Duty Specification Grade Standard

Product Description

The Wiring Device-Kellems DS320I is a 3-way decorator switch designed for heavy-duty applications. This switch operates at a voltage range from one hundred twenty to two hundred seventy-seven VAC and supports a maximum current of twenty amps, rated for five thousand five hundred forty watts.

• SPDT action with a rocker actuator
• Threaded mounting and screw terminal connections
• Durable thermoplastic construction for optimum performance

Product Highlights

Ideal for residential and commercial applications, ensuring reliable operation under various conditions.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Action: SPDT
• Actuator: Rocker
• Color: Ivory
• Dimensions: 3.91 x 1.41 x 1.01 inches
• Environmental Conditions: -40 to 75 deg C
• Material: Thermoplastic
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Series: DS Series
• Terminal Type: Screw
• Type: 3-Way 2-Position Heavy Duty Specification Grade Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2 Position
