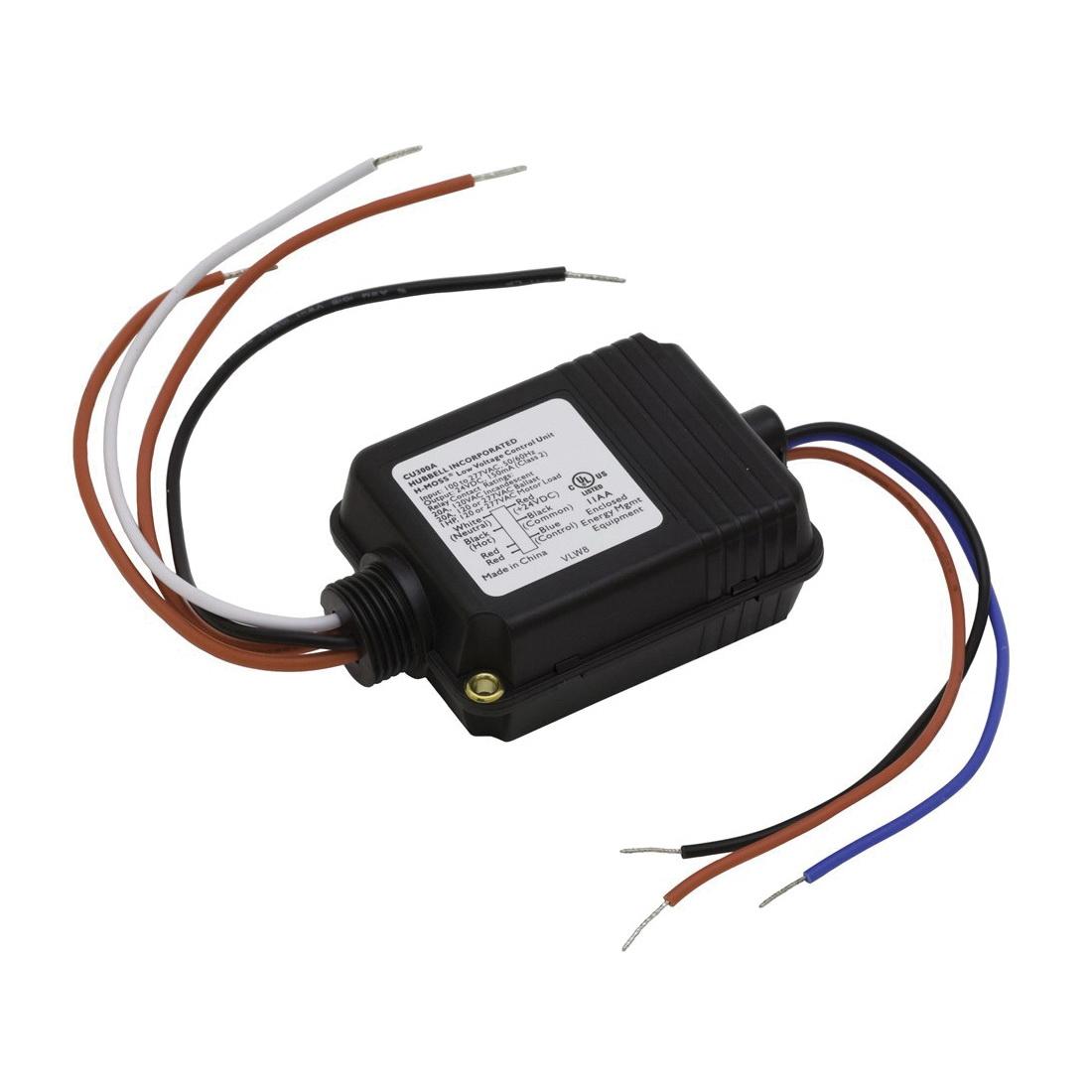

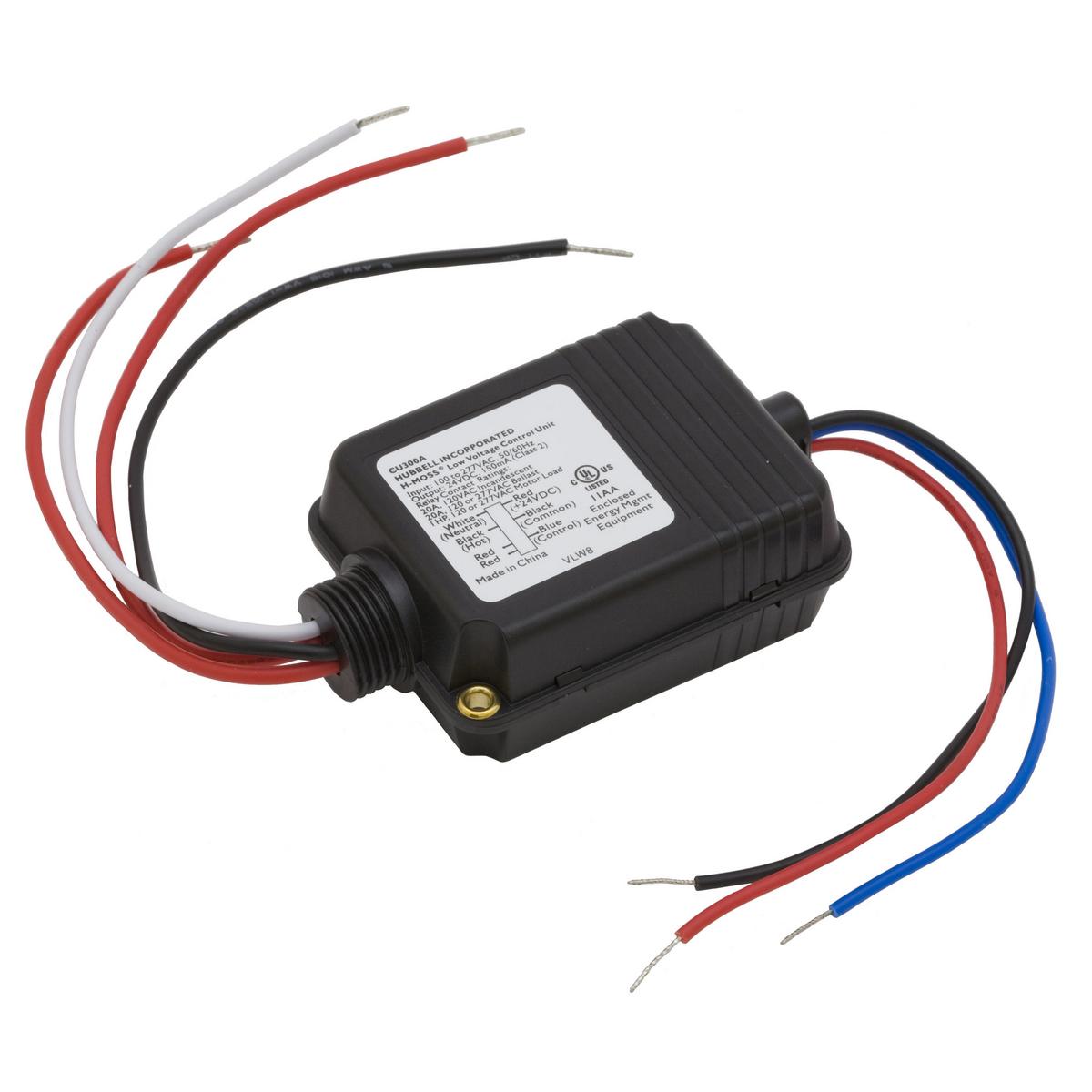

Wiring Device-Kellems CU300M Momentary Version Control Unit 120/277 VAC

Product Description

The Wiring Device-Kellems CU300M is a momentary control unit designed for reliable lighting control. With a voltage rating of 120/277 VAC and a power capacity for incandescent and ballast applications, this unit is suitable for various installations. It can handle up to 1800 watts at 120 VAC and 2400 watts at 277 VAC.

• Voltage Rating: 120/277 VAC
• Power Rating: 0 to 1800 W at 120 VAC, 0 to 2400 W at 277 VAC
• Size: 3.69 in L x 2.33 in W x 1.36 in H

Product Highlights

This control unit includes features like automatic voltage detection, manual ON operation, and zero arc point switching. It is designed for easy installation inside or outside of junction boxes. Rated for plenum use, it operates effectively in various environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Color: Black
• Connection Type: Wire Lead
• Mounting Type: Threaded
• Response Frequency: 50/60 Hz
• Temperature Rating: 32 to 104 deg F
• Time Period: 6000 Cycles Minimum Operating
• Type: Momentary Version
• Amperage Rating: 8/16 A
