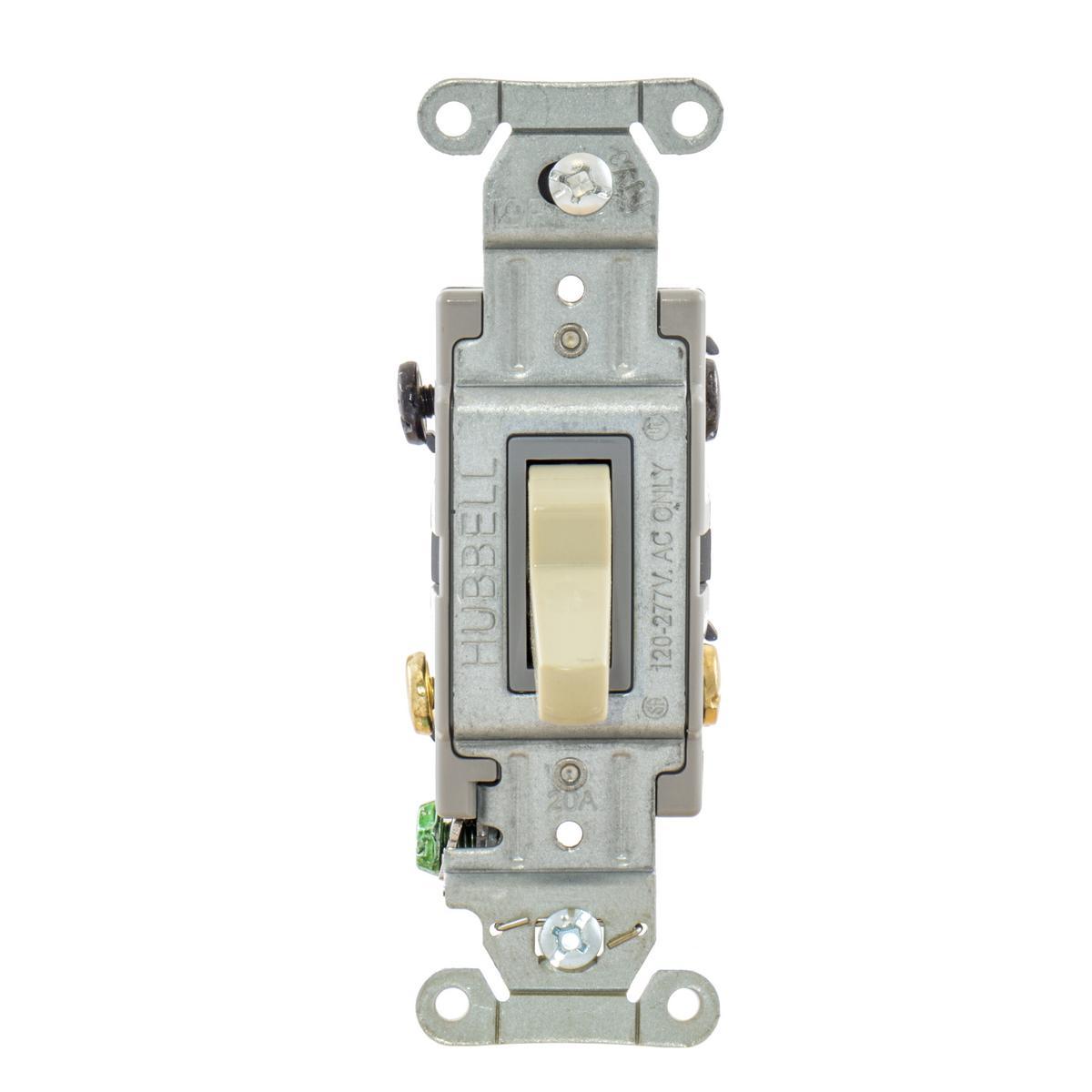

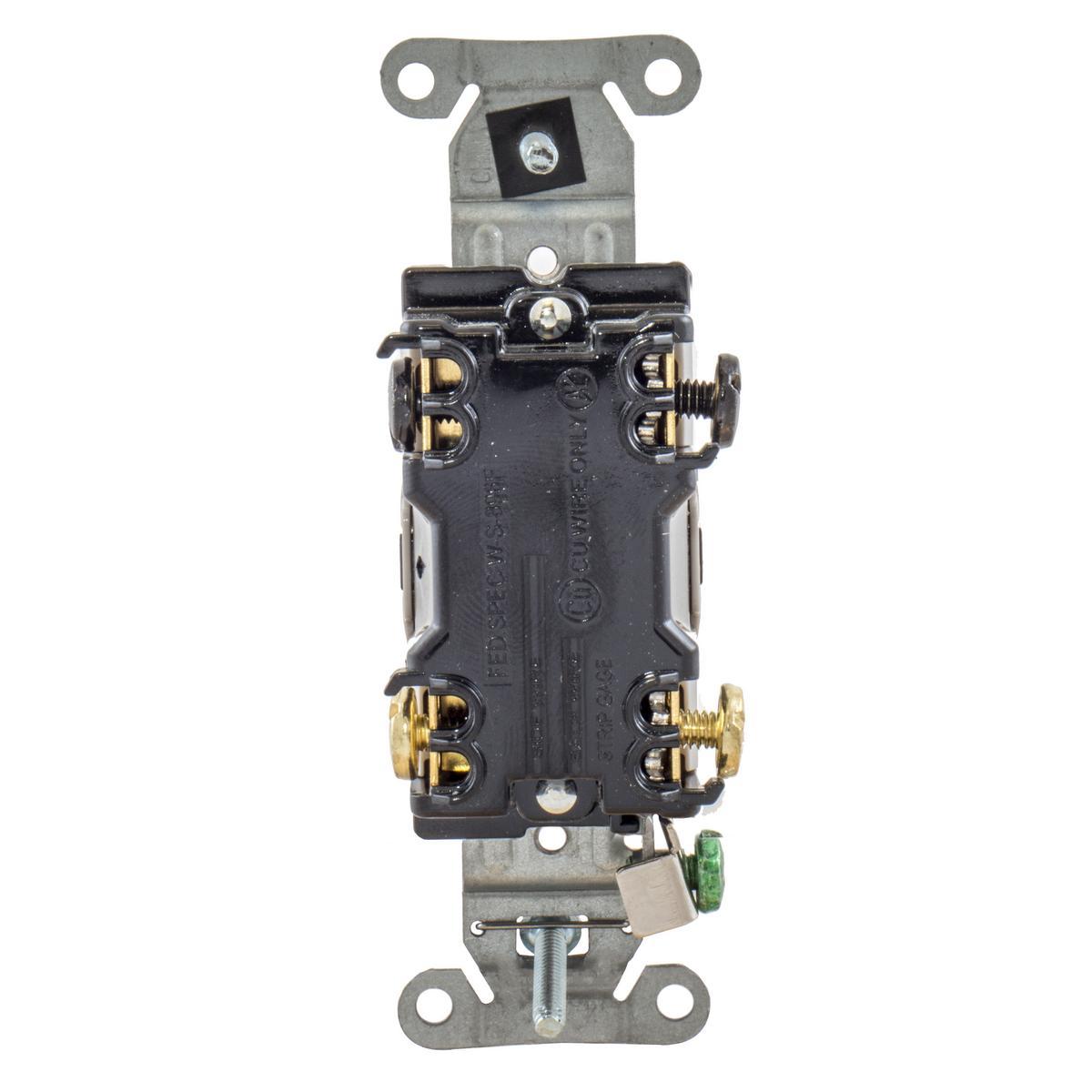

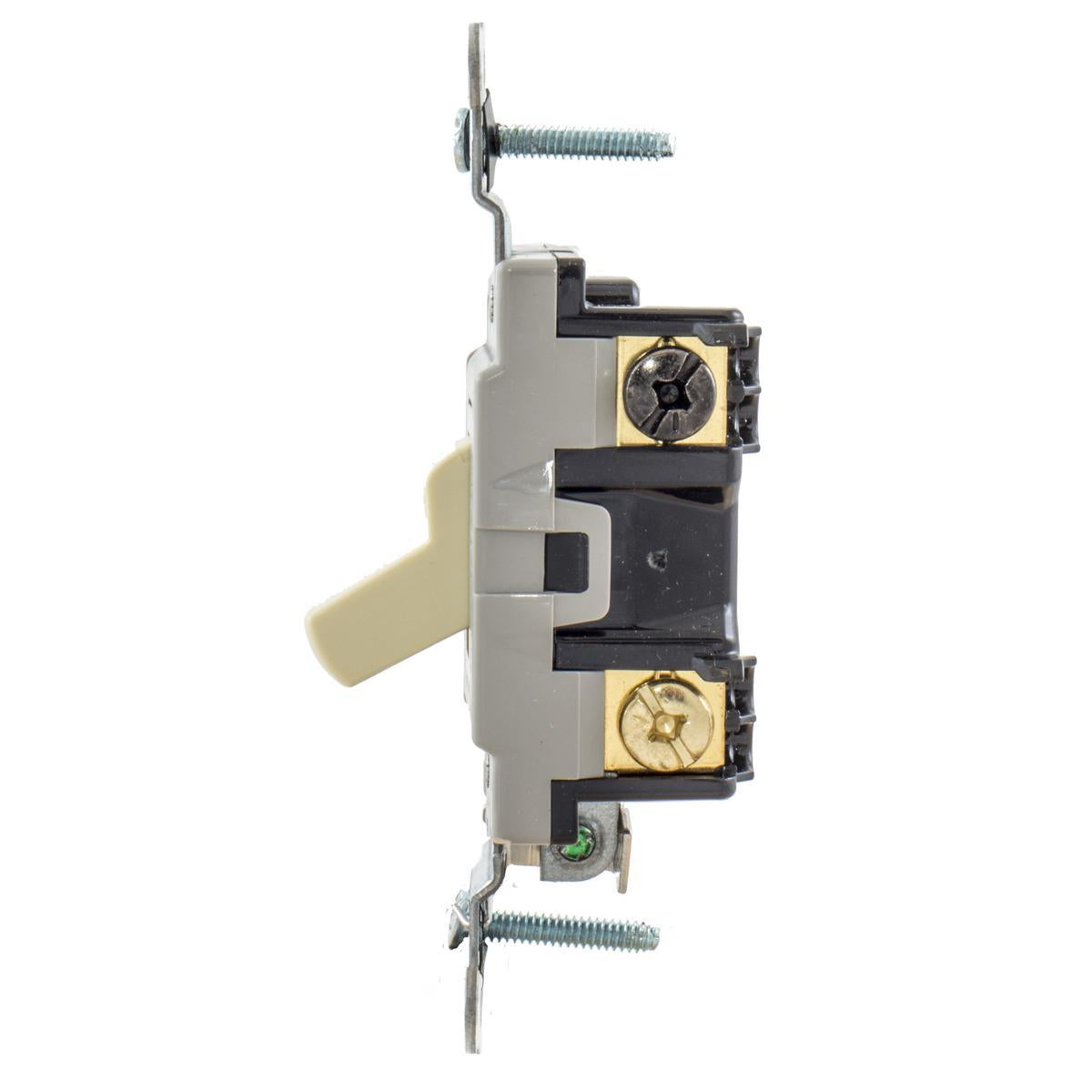

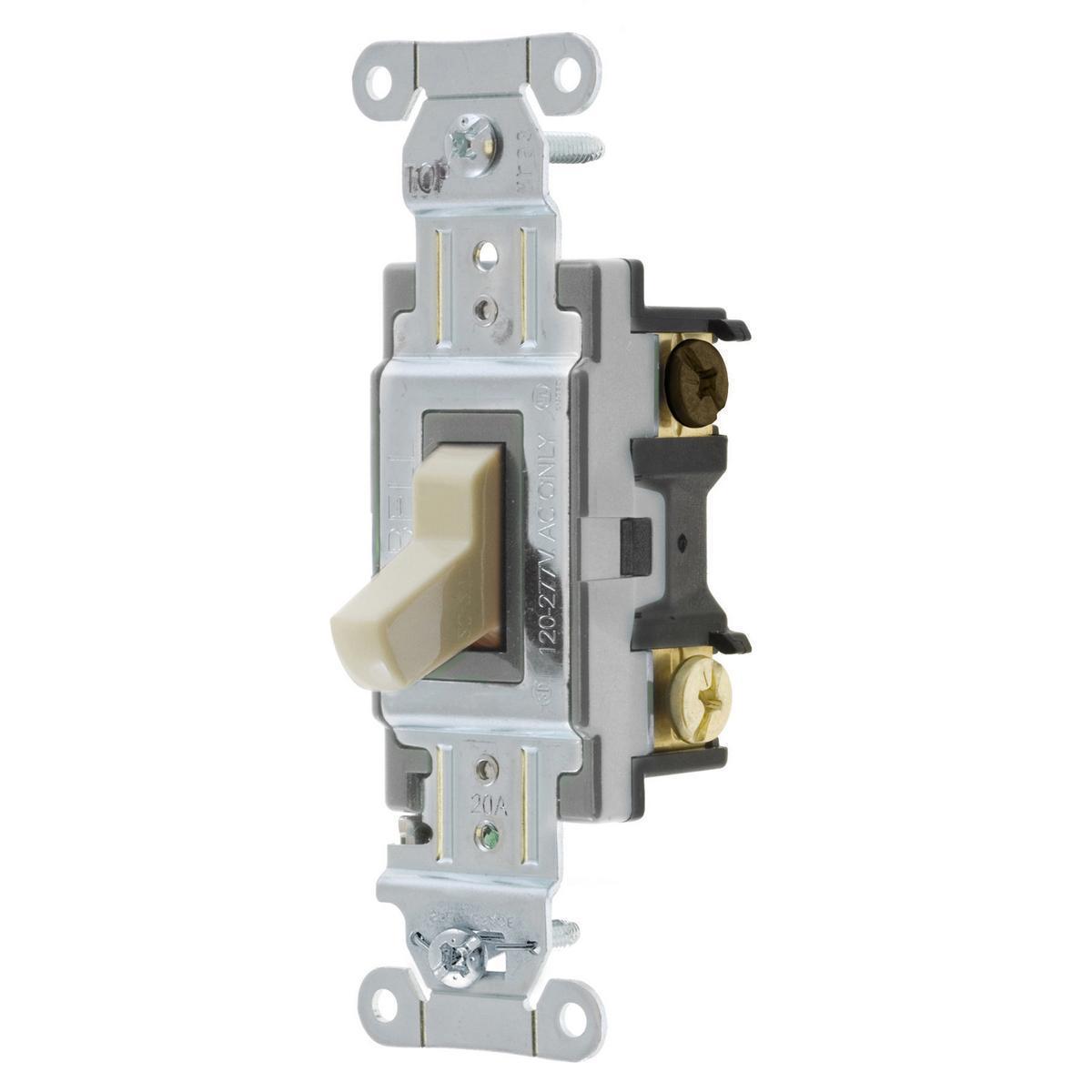

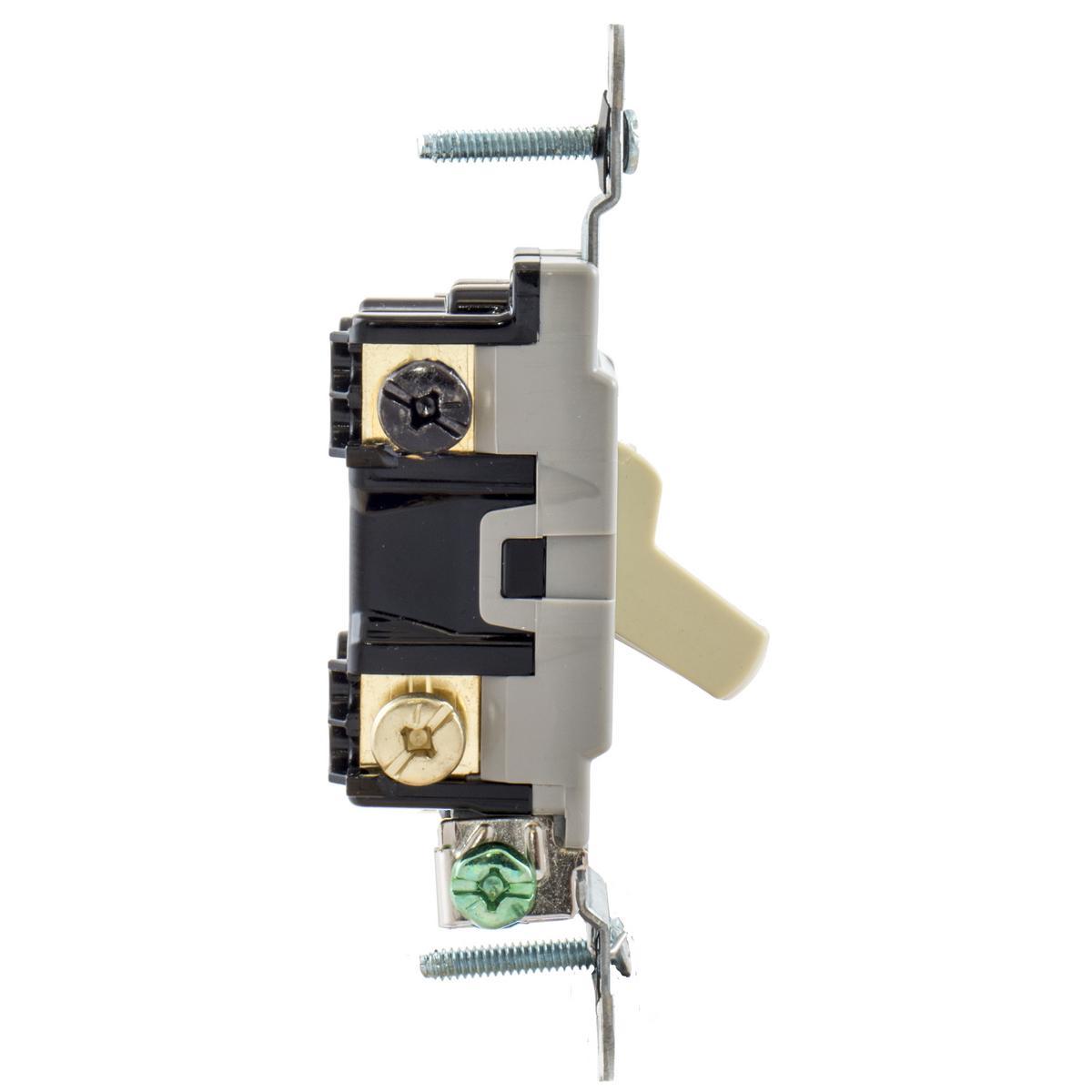

Wiring Device-Kellems CSB420I 4-Way 2-Position Specification/Commercial Grade Standard

Product Description

The Wiring Device-Kellems CSB420I is a toggle switch designed for 4-way, 2-position applications. This specification and commercial-grade standard toggle switch operates on a voltage range of 120 to 277 VAC with a power rating of 5540 watts and amperage of twenty amps. It features a durable nylon construction suitable for demanding environments.

• Suitable for heavy-duty commercial use.
• 50000 operating cycles for long-lasting performance.
• Meets NEC compliance with integral grounding terminal.

Product Highlights

Engineered to provide reliable operations in various setups, this toggle switch is ideal for use in both commercial and industrial applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems
• Material: Nylon

Technical Specifications

• Actuator: Toggle
• Color: Ivory
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Operating Cycles: 50000 cycles
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
• Environmental Conditions: -40 to 75 degrees Celsius
• Number of Poles: 2
• Mounting: Threaded
• Terminal Type: Back/Side Wire
