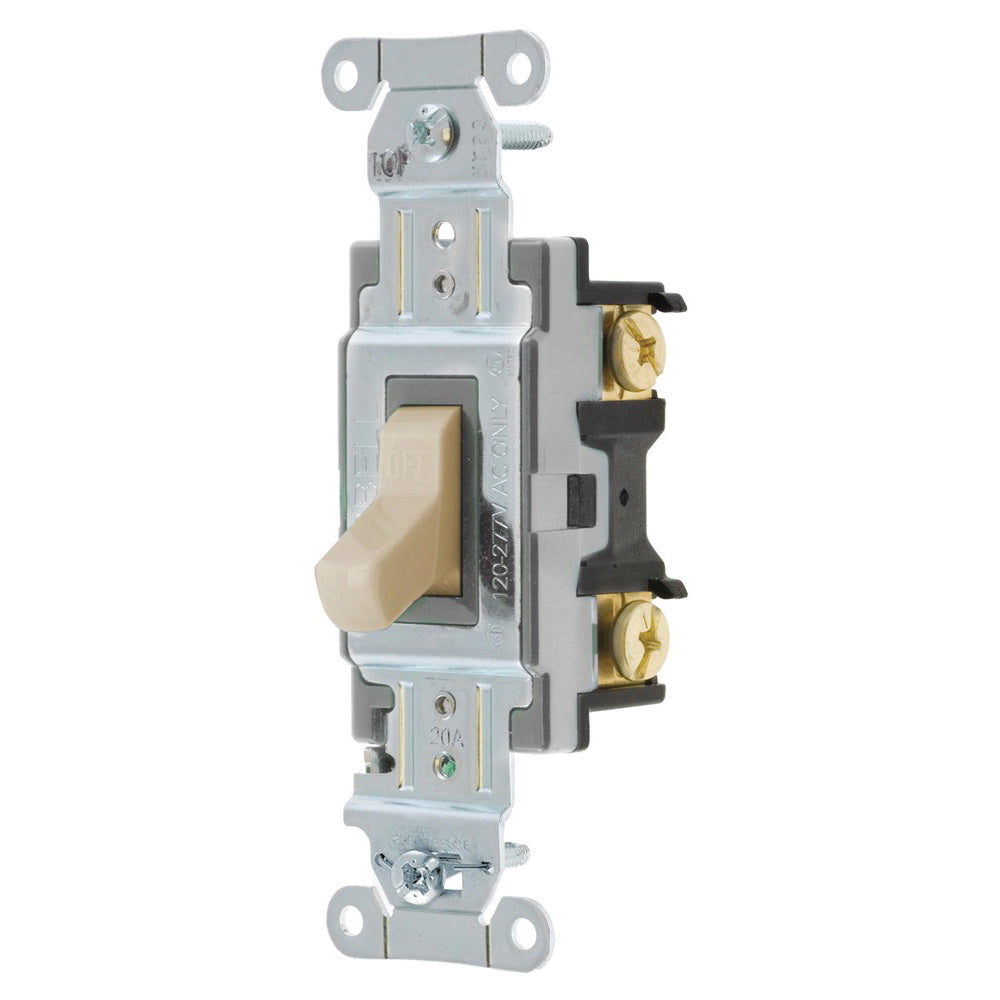

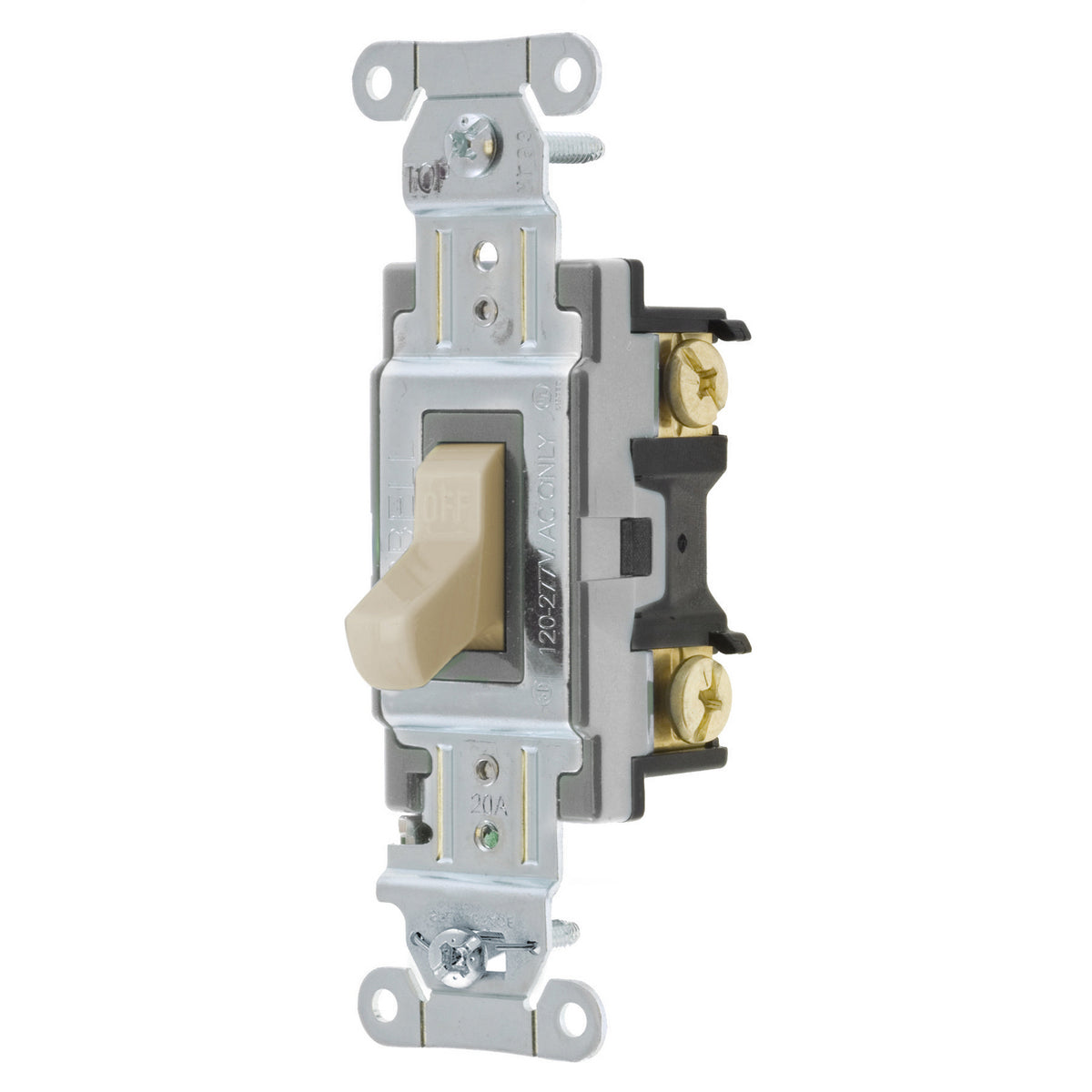

Wiring Device-Kellems CSB120AL Toggle Switch 120/277 VAC 20 A

Product Description

The Wiring Device-Kellems Toggle Switch, model CSB120AL, is designed for reliable operation in various settings. This switch operates with a voltage rating of 120/277 VAC and supports an amperage rating of twenty amperes. It is suitable for a variety of applications owing to its robust build and consistent performance.

• Mechanical life of fifty thousand operating cycles.
• Compatible with back and side wire terminal connections.
• Constructed from durable nylon material.

Product Highlights

The Wiring Device-Kellems CSB120AL provides reliable toggling in residential and commercial applications. It is designed to withstand environmental conditions ranging from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Color: Almond
• Dimensions: 4.18 in L x 1.49 in W x 1.83 in H
• Environmental Conditions: -40 to 75 deg C Operating Temperature
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 Cycles
• Terminal Type: Back/Side Wire
• Type: Standard
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
