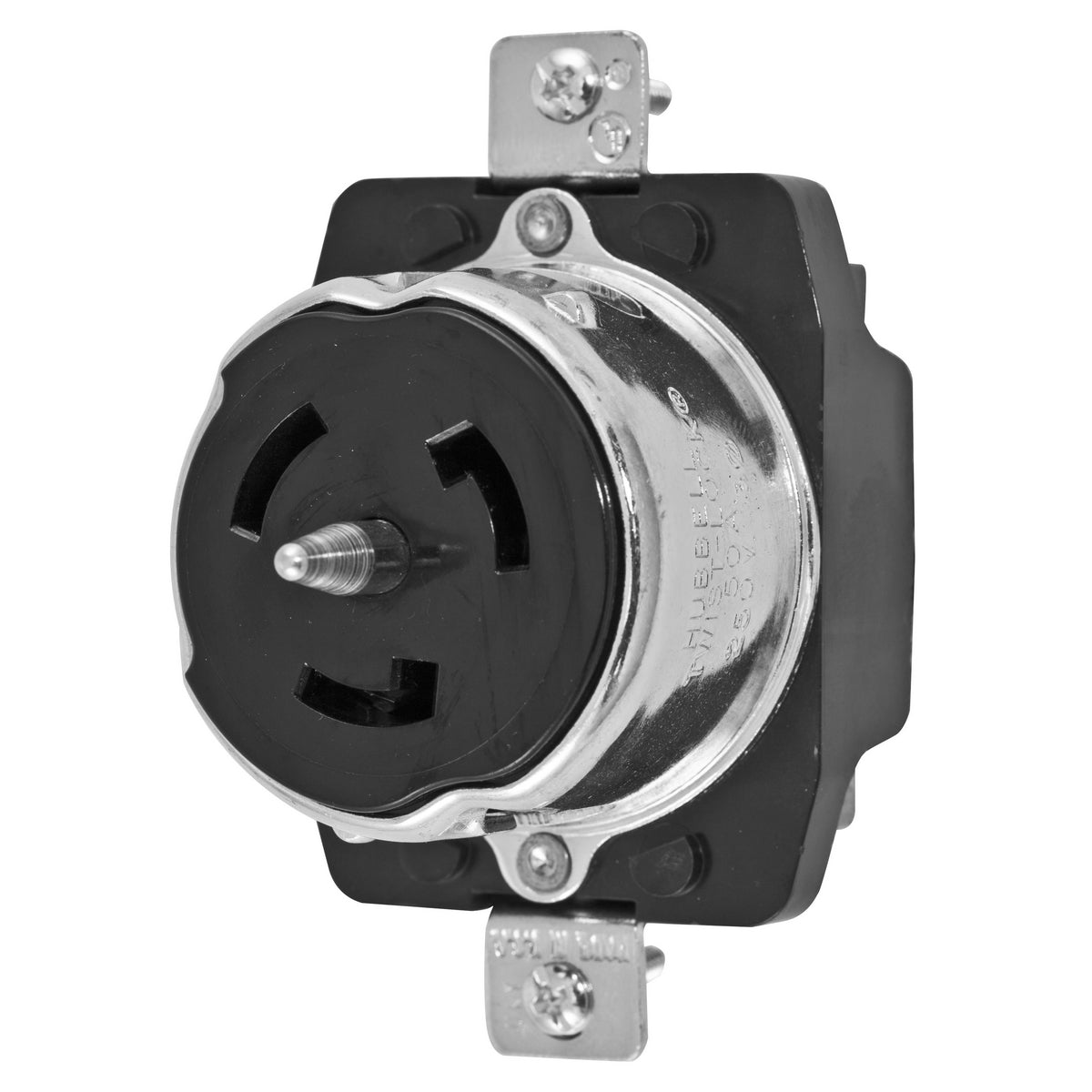

Wiring Device-Kellems CS8369 Heavy Duty Single Screw Mount Locking Receptacle

SKU: CS8369
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$222.26
$222.26
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Wiring Device-Kellems CS8369 is a heavy-duty twist-lock receptacle designed for industrial applications. This receptacle operates at 250 VAC and supports up to 50 amperes. It features a three-pole and four-wire configuration for reliable electrical connections.

  • Thermoset construction ensures high heat resistance.
  • Armored housing provides impact resistance.
  • Screw terminal design for secure and easy wiring.

Product Highlights

The CS8369 is suitable for heavy-duty industrial use, particularly in environments where safety and durability are paramount. It is rated for use in a NEMA 4/4X/12 enclosure and can withstand temperatures between -40 and 75 degrees Celsius.

Product Information

Standard Information

  • Brand: Wiring Device-Kellems
  • Type: 3-Phase Grounding Heavy Duty Single Screw Mount

Technical Specifications

  • Voltage Rating: 250 VAC
  • Amperage Rating: 50 A
  • Number of Poles: 3
  • Number of Wires: 4
  • Temperature Rating: -40 to 75 degrees C
  • Material: Composite
  • Enclosure Type: NEMA 4/4X/12/IP20
  • Dimensions: 2.69 x 2.12 x 2.36 in

Vendor: HUBBELL WIRING

Wiring Device-Kellems CS8369 Heavy Duty Single Screw Mount Locking Receptacle

$222.26

Vendor: HUBBELL WIRING

Wiring Device-Kellems CS8369 Heavy Duty Single Screw Mount Locking Receptacle

$222.26
