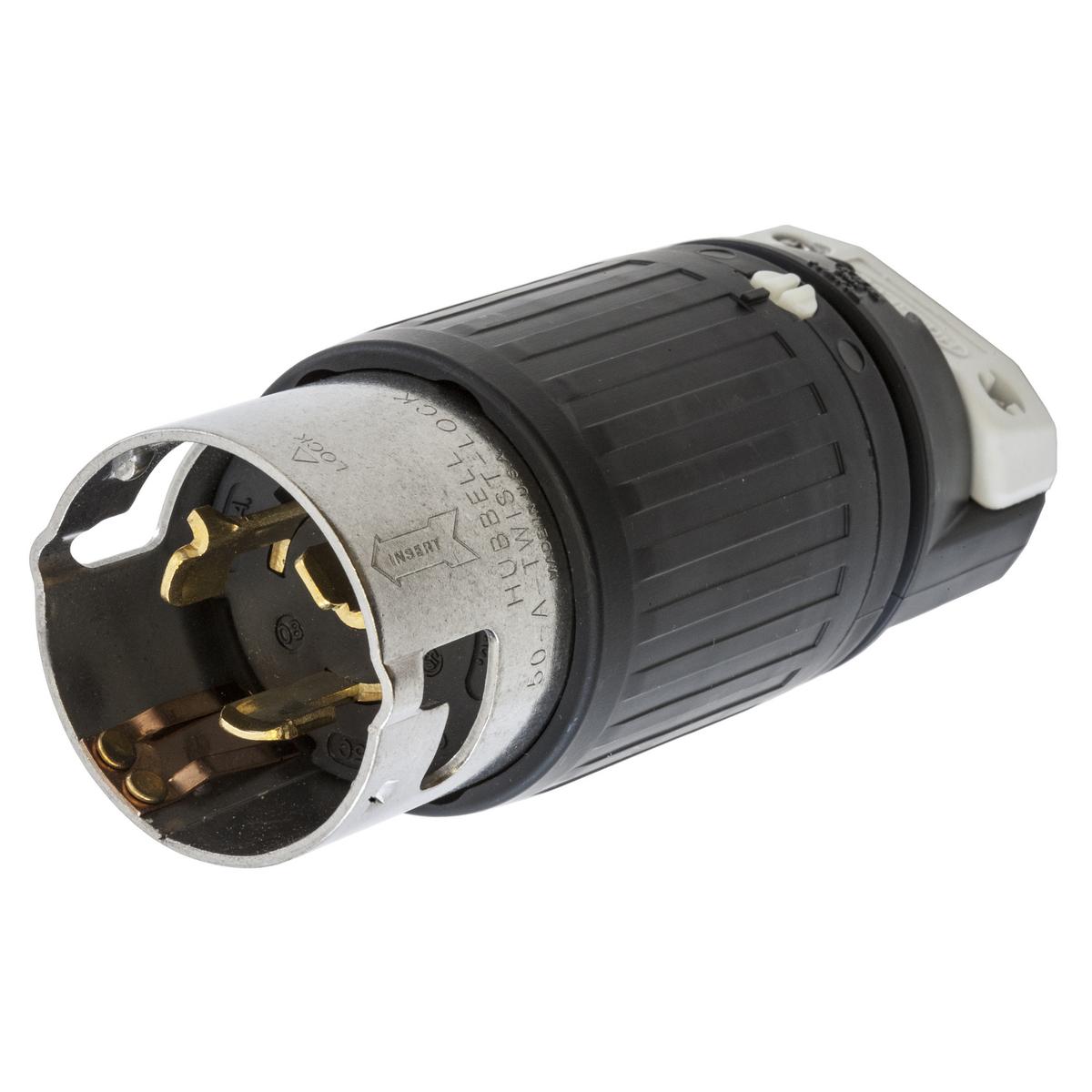

Wiring Device-Kellems CS6365C 1-Phase Grounding Cord Mount 125/250 VAC

Product Description

The Wiring Device-Kellems CS6365C is a Twist-Lock Insulgrip Locking Plug designed for robust performance in industrial applications. This product supports a voltage rating of 125/250 VAC with an amperage rating of fifty amps. It features a grounding cord mount configuration with three poles and four wires.

• Durable nylon housing.
• IP20 rated enclosure for protection against solid objects.
• Suitable for cords with diameters ranging from three-fourths inch to one and one-eighth inch.

Product Highlights

This locking plug is ideal for various industrial and commercial settings, ensuring secure connections and reliable electrical performance under demanding conditions.

Product Information

Standard Information

• Type: 1-Phase Grounding Cord Mount
• Material: Nylon

Technical Specifications

• Cord Diameter: 3/4 to 1-1/8 inches
• Dimensions: 6.37 x 2.56 x 2.56 inches
• Enclosure: IP20
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 125/250 VAC
• Amperage Rating: 50 A
• Number of Poles: 3
• Number of Wires: 4
• Grade: Industrial
• Color: Black/White
