Wiring Device-Kellems CS320LA HW 3-Way Specification Grade 120/277 VAC

Product Description

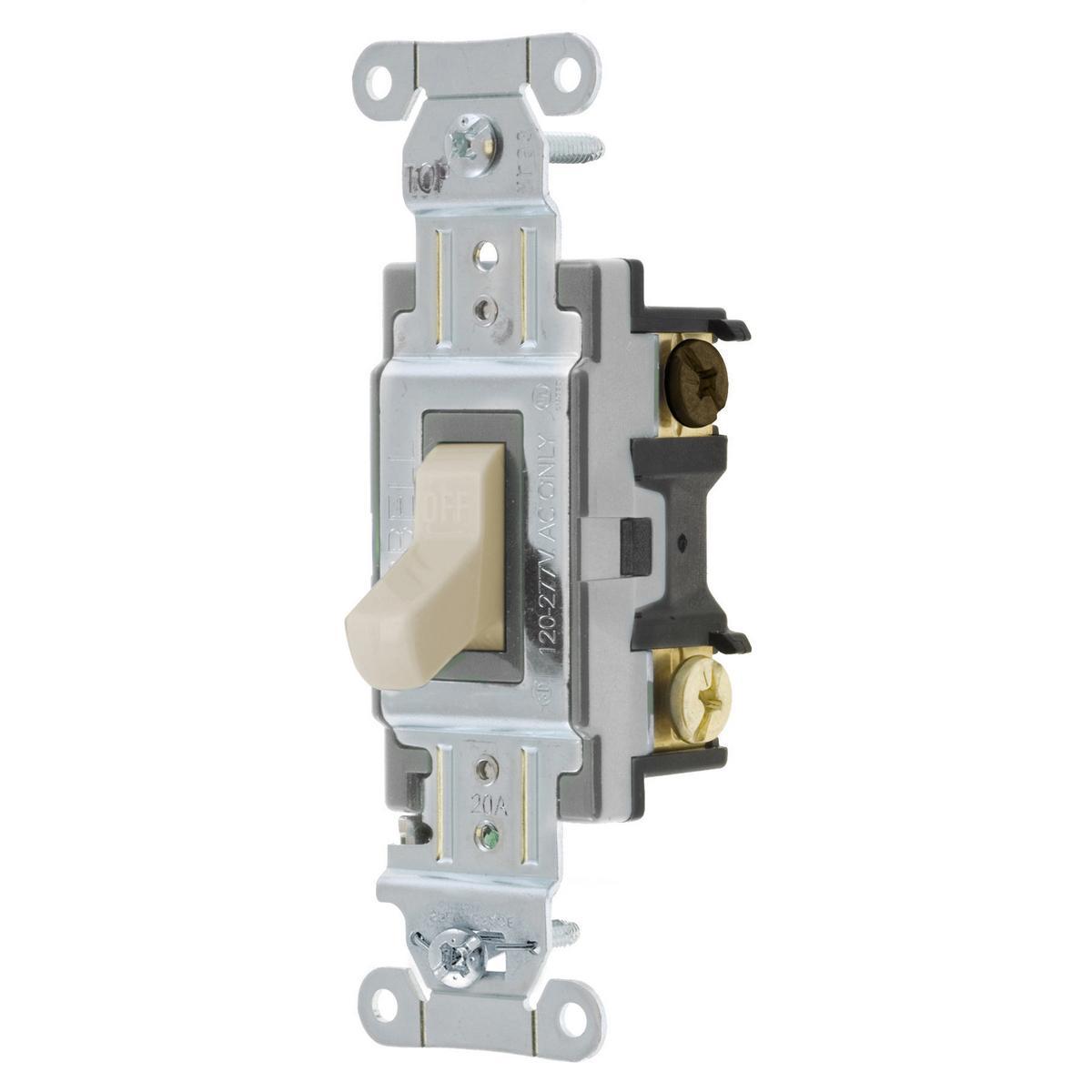

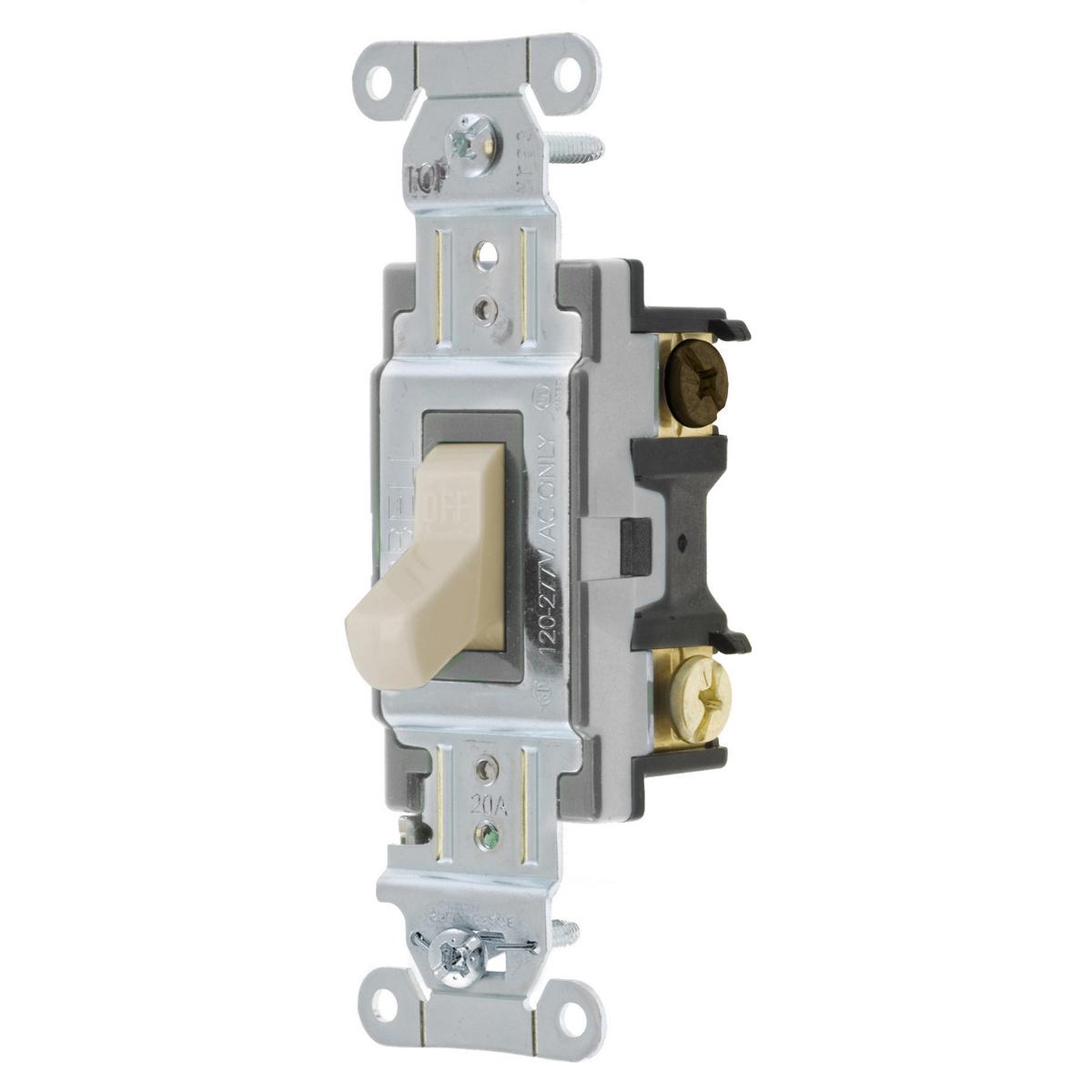

The Wiring Device-Kellems AC Toggle Switch, model CS320LA, is a three-way, specification-grade device designed for use in residential and commercial settings. Rated for 120/277 volts AC, it supports a maximum of twenty amps, delivering reliable power control in various applications.

• 3-way configuration for versatile switching
• Robust construction for lasting performance
• Compatible with NEMA WD-1 enclosures

Product Highlights

Designed for durability, the CS320LA features a thermoset material that withstands environmental conditions ranging from -40 to 75 degrees Celsius. Ideal for indoor applications, it has a threaded mounting for easy installation and is rated for fifty thousand operating cycles.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 3-Way Specification Grade
• Actuator: Toggle
• Amperage Rating: 20 A
• Voltage Rating: 120/277 VAC
• Power Rating: 2 hp, 5540 W
• Contact Configuration: 2-Position
• Operating Cycles: 50000 Cycles
• Enclosure: NEMA WD-1
• Dimensions: 4.18 in H x 1.49 in W x 1.75 in D
• Environmental Conditions: -40 to 75 deg C Temperature
• Material: Thermoset
• Mounting: Threaded
• Terminal Type: Side Wire
